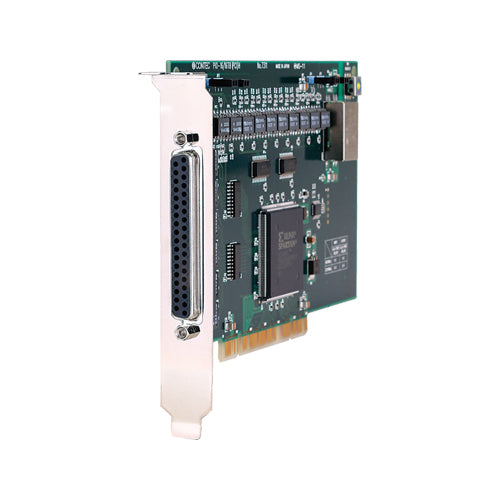

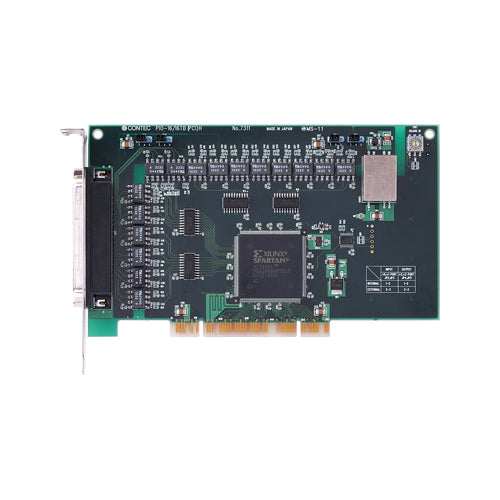

PIO-16/16TB(PCI)H Digital I/O PCI card 16ch/16ch (5VDC on-board power supply high-speed isolated 5VDC-TTL)
Contact Sales Department for Pricing New PIO-16/16TB(PCI)H 16 Input / 16 Output Isolated TTL Internal Power Supply Interrupt · Digital Filter VCCI-A · CE · UKCA16-channel isolated TTL-level digital I/O board for PCI. Features 16 inputs and 16...
Read full descriptionHide description
16-channel isolated TTL-level digital I/O board for PCI. Features 16 inputs and 16 outputs with opto-coupler isolation, on-board isolated 5V power supply (600mA), interrupt capability on all inputs, digital filter, and Windows/Linux drivers.
Isolated TTL I/O
with Internal Power Supply
The PIO-16/16TB(PCI)H is a PCI-compliant interface board for isolated TTL-level digital signal I/O. It provides 16 input channels and 16 output channels with opto-coupler isolation for excellent noise immunity. An on-board isolated 5VDC power supply (600mA) is included, eliminating the need for an external supply in many applications.
- 16 opto-isolated TTL inputs
- Negative logic
- All inputs can be interrupt inputs
- Selectable interrupt edge (rising/falling)
- Digital filter for noise/chatter rejection
- 16 opto-isolated TTL outputs
- Negative logic
- On-board isolated 5VDC, 600mA supply
- External power supply option
- Connector-compatible with PIO-16/16TB(PCI)
Internal isolated power supply — An on-board isolated 5VDC 600mA power supply is available. You can select either this internal supply or an external power supply to drive the photo-isolation circuits, providing flexibility for different system configurations.
Advanced Features & Compatibility
The PIO-16/16TB(PCI)H includes a digital filter to prevent erroneous inputs from noise or chattering. All 16 input signals can be used as interrupt requests with selectable trigger edges. The board is connector-pin compatible with the PIO-16/16TB(PCI) for easy migration.
-
Digital filter — Prevents wrong recognition of input signals from carrying noise or chattering.
-
Interrupt capability — All 16 input signals can be used as interrupt requests. Interrupt trigger edge (rising or falling) is selectable.
-
Internal power supply — On-board isolated 5VDC, 600mA supply. External power option also available.
-
Compatibility — Connector pin assignment is compatible with PIO-16/16TB(PCI).
-
Up to 16 boards — Multiple boards can be installed in a single PC system.
Full Specifications
| Specification | Detail |
|---|---|
| Contec Model | PIO-16/16TB(PCI)H |
| Input Channels | 16 opto-isolated TTL (negative logic) |
| Input Resistance | 1.1 kΩ |
| Input Response Time | 1 µs max |
| Interrupts | All 16 inputs; edge selectable (rising/falling) |
| Digital Filter | Software selectable |
| Output Channels | 16 opto-isolated TTL (negative logic) |
| Output Rating | 6.4 mA typical per channel (4 TTL loads) |
| Output Response Time | 1 µs max |
| Internal Power Supply | Isolated 5VDC, 600 mA |
| Power Consumption (Internal) | +5 VDC 1150 mA (max) |
| Power Consumption (External) | +5 VDC 350 mA (max) |
| Bus Specification | PCI 32-bit, 33 MHz, Universal key (requires +5V) |
| Dimensions (L x H) | 176.41 x 105.68 mm |
| Weight | — |
| Operating Temperature | 0 to 50 °C |
| Humidity | 10 to 90% RH (no condensation) |
| Signal Extension Distance | Approx. 5 m (depends on wiring environment) |
| Max Boards in One System | 16 boards including this board |
| Certifications | VCCI Class A, CE (EMC Class A, RoHS), UKCA |
| Included Items | Board, first step guide, CD-ROM (API-PAC(W32)) |
Software & Driver Support
The PIO-16/16TB(PCI)H is supported by the API-PAC(W32) driver library for Windows, and API-DIO(LNX) for Linux. VI-DAQ for LabVIEW is available as a free download. Diagnostic programs and sample code accelerate development.
- API-PAC(W32) – Win32 API functions
- Samples: Visual Basic, C/C++
- Diagnostic program included
- Download updates from Contec website
- API-DIO(LNX) – Linux driver
- Samples: gcc, Kylix
- VI-DAQ – LabVIEW library (free download)
- Easy integration with industrial software
Certifications & Compliance
-
VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial and industrial environments).
-
CE (EMC Directive Class A + RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
-
UKCA — UK Conformity Assessed marking.
Optional Accessories
| Part Number | Description | Use |
|---|---|---|
| PCB37P-1.5 / -3 / -5 | Flat cable with 37-pin D-SUB connectors at both ends | Interface connection |
| PCB37PS-0.5P / -1.5P / -3P / -5P | Shielded cable with 37-pin D-SUB connectors at both ends | Interface connection |
| PCA37P-1.5 / -3 / -5 | Flat cable with one 37-pin D-SUB connector | Interface connection |
| PCA37PS-0.5P / -1.5P / -3P / -5P | Shielded cable with one 37-pin D-SUB connector | Interface connection |
| EPD-37A | Screw terminal (M3) – spring-up type | Termination |
| EPD-37 | Screw terminal (M3.5) | Termination |
| DTP-3(PC) | Terminal unit for solderless terminal (M3) | Termination |
| DTP-4(PC) | Terminal unit for leads | Termination |
| CN5-D37M | 37-pin D-SUB (male) connector set (5 pieces) | Replacement connectors |
Ready to add isolated TTL I/O with internal power to your system?
The PIO-16/16TB(PCI)H is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your Windows/Linux application.
