COM-2C-LPE | 2-Channel RS-232C Serial I/O Board | Contec Americas Contact Sales Department for Pricing New COM-2C-LPE 2 RS-232C Ports 921,600 bps Low Profile / Standard 128-byte FIFO Standard COM Ports VCCI-A · FCC-A · CE · UKCA Low Profile PCI Express 2‑channel RS‑232C serial I/O board. Supports up to...
Vendor: Contec Americas
SKU: LRBQ45
Availability: In Stock
Product type: Accessory
📋

Datasheet

COM-2C-LPE

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
Description
COM-2C-LPE | 2-Channel RS-232C Serial I/O Board | Contec Americas
New COM-2C-LPE 2 RS-232C Ports 921,600 bps Low Profile / Standard 128-byte FIFO Standard COM Ports VCCI-A · FCC-A · CE · UKCA

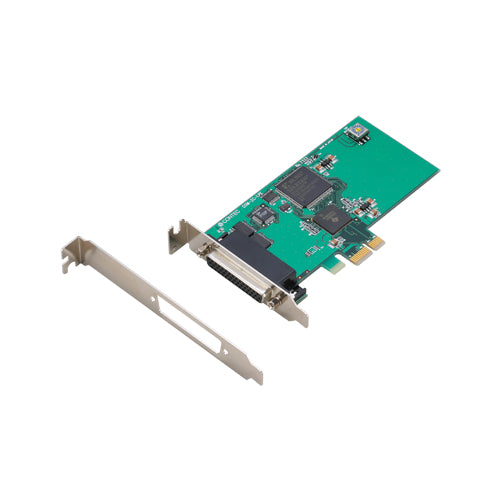

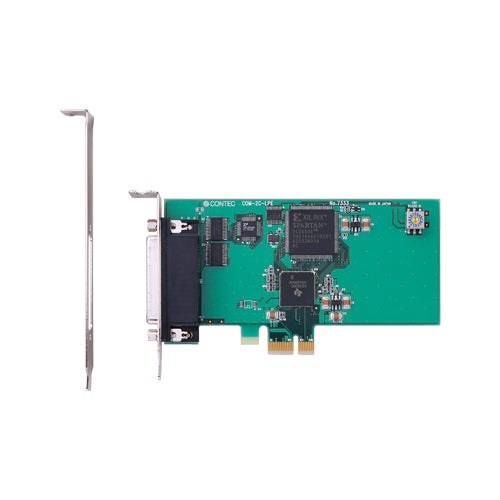

Low Profile PCI Express 2‑channel RS‑232C serial I/O board. Supports up to 921,600 bps with 128‑byte FIFO buffers per channel. Operates as standard Windows/Linux COM ports. Includes standard size bracket for versatile installation.

2 RS-232C Ports
921.6k Max Baud Rate (bps)
128B FIFO (Tx/Rx per ch)
15m Connecting Distance
Contec Americas · Low Profile PCI Express Serial
2‑Channel RS‑232C Serial I/O
COM-2C-LPE · 921.6 kbps · 128‑byte FIFO · Standard COM ports
View Collection

High‑Speed RS‑232C
in Low Profile Form Factor

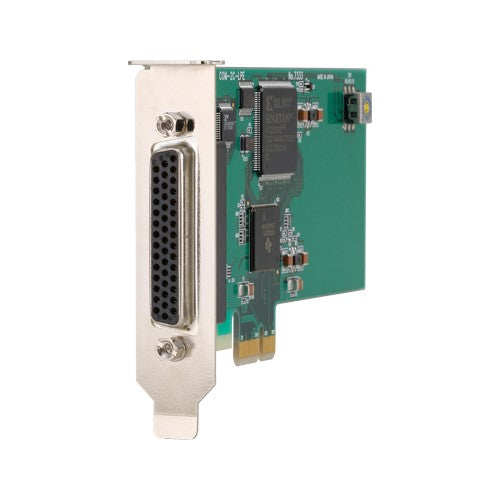

The COM‑2C‑LPE provides two RS‑232C serial ports on a Low Profile PCI Express board. It supports data rates up to 921,600 bps and includes 128‑byte FIFO buffers for transmit and receive per channel. The board operates as standard Windows/Linux COM ports using the included COM‑DRV driver.

Performance & Features
  • 921,600 bps max baud rate
  • 128‑byte FIFO (Tx/Rx per channel)
  • Asynchronous serial transfer
  • RTS/CTS/DTR/DSR software control
  • Up to 16 boards per system
Compatibility & Mounting
  • Standard Windows/Linux COM ports
  • Low Profile / standard slot compatible
  • Includes standard size bracket
  • Optional conversion cable available
  • VCCI-A · FCC-A · CE · UKCA

Used as standard COM ports — with COM‑DRV driver, works like built‑in COM ports using Win32 API (DCB structures) or Linux system calls. Supports .NET SerialPort class and PySerial.

Built for Versatile Connectivity

  • High speed — supports baud rates from 30 to 921,600 bps (depending on board revision).
  • FIFO buffers — 128 bytes each for transmit and receive per channel; reduces CPU load during high‑speed communication.
  • Software control — RTS, CTS, DTR, DSR lines can be controlled and monitored via software.
  • Low Profile / standard — supports both form factors with interchangeable bracket (standard bracket included).
  • Board ID — set via SW1 to distinguish multiple boards.

Full Specifications

Item Specification
Model COM‑2C‑LPE
Number of channels 2
Interface type RS‑232C
Transfer method Asynchronous serial transfer
Baud rate 30 – 921,600 bps *1*3 (varies by board revision)
Data length 5, 6, 7, 8 bits
Stop bits 1, 1.5, 2 bits
Parity check Even, Odd, Non‑parity
Controller chip 162850 or equivalent (128‑byte FIFO per channel)
Connecting distance 15 m (Typ.)
Interrupt requests 1 level used
I/O address Any 32‑byte boundary
Power consumption 3.3 VDC, 300 mA max
Bus interface PCI Express Base Spec Rev. 1.0a x1
Connector 44‑pin (on‑board) / optional conversion cable to 9‑pin D‑SUB
Dimensions (L × H) 121.69 × 67.90 mm (Low Profile)
Weight 60 g
Operating temperature 0‑50°C
Operating humidity 10‑90% RH (no condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA

Connector & Cabling

The board uses a 44‑pin on‑board connector. An optional conversion cable (PCE44/9P2S) is available to split into two standard 9‑pin D‑SUB male connectors. Alternatively, custom cables can be made for direct connection.

  • Optional conversion cable — PCE44/9P2S (44‑pin to 9‑pin D‑SUB ×2).
  • Signal lines — TD, RD, RTS, CTS, DTR, DSR, DCD, SG, RI.
  • Cable types — use straight cable for modem connection, crossed (null modem) for PC‑to‑PC connection.
  • Board ID — set via SW1 to distinguish multiple boards.

Certifications & Compliance

  • VCCI Class A — Japanese EMC for commercial/industrial environments.
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE (EMC Directive Class A + RoHS) — European conformity.
  • UKCA — UK conformity assessed.

Optional Accessories

Part Number Description
PCE44/9P2S Conversion cable, 44‑pin to 9‑pin D‑SUB ×2

Software & Packing List

Item Description
Windows driver COM‑DRV(WDM) – standard COM port emulation; supports DCB, .NET SerialPort, PySerial; sample programs in C#, VB.NET, VC++, Python
Linux driver COM‑DRV(LNX) – standard TTY driver; supports PySerial; gcc (C/C++) and Python samples
Packing List Product ×1, standard size bracket ×1, "Please read the following" document

Ready to add RS‑232C serial ports?

The COM‑2C‑LPE is available through Contec Americas on a quote basis. Contact our sales team for volume pricing, cable assemblies, and integration support.
