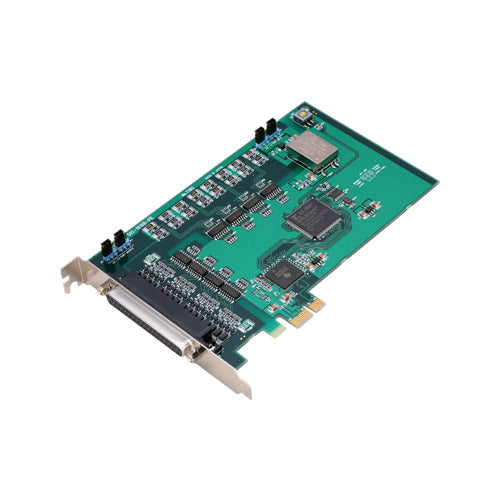

DIO-1616B-PE | 16-Channel Isolated Digital I/O Board | Contec Americas Contact Sales Department for Pricing New DIO-1616B-PE 16 Isolated Inputs 16 Isolated Outputs On-Board Power Supply Current Sink I/O Interrupt on all inputs VCCI-A · FCC-A · CE · UKCA 16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector...
Vendor: Contec Americas
SKU: LRKS65
Availability: In Stock
Product type: Accessory
📋

Datasheet

DIO-1616B-PE

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
Description

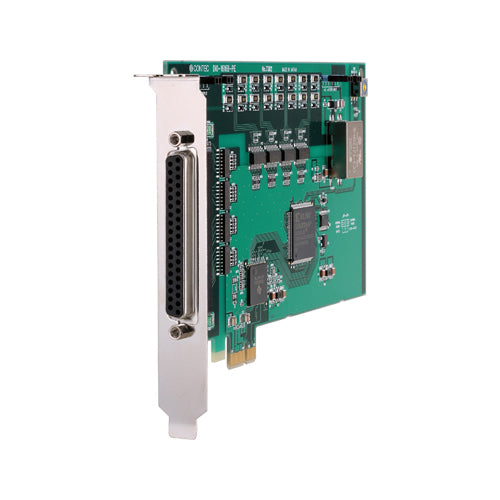

DIO-1616B-PE | 16-Channel Isolated Digital I/O Board | Contec Americas
New DIO-1616B-PE 16 Isolated Inputs 16 Isolated Outputs On-Board Power Supply Current Sink I/O Interrupt on all inputs VCCI-A · FCC-A · CE · UKCA

16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs (current sink type) on a PCI Express board. On‑board 12VDC power supply for opto‑couplers — no external supply needed. 200 µs response, interrupt on all inputs, digital filter, surge and overcurrent protection.

16 Input Channels
16 Output Channels
100mA Max Output / ch
500Vrms Isolation Voltage
Contec Americas · PCI Express Isolated I/O
16‑Channel Isolated I/O with On‑Board Power
DIO-1616B-PE · Opto-isolated · Current sink · Interrupt · Protection
View Collection

Isolated Digital I/O
with On‑Board Power

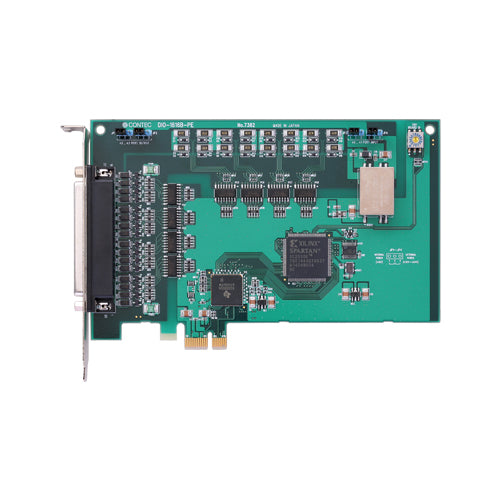

The DIO‑1616B‑PE provides 16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs (current sink type) on a PCI Express board. It features an on‑board 12VDC power supply (240 mA) for driving opto‑couplers, eliminating the need for an external supply. All 16 inputs can be used as interrupt request signals with per‑bit enable/disable and selectable edge triggering.

Input Features
  • 16 channels, opto-isolated
  • Current sink compatible
  • 12‑24 VDC external supply option
  • On‑board 12V internal power
  • All inputs can be interrupt sources
Output Features
  • 16 channels, open-collector
  • Current sink type
  • 35 VDC max, 100 mA per channel
  • Zener diode surge protection
  • Overcurrent protector (8 ch/group)

On‑board power supply — 12 VDC, 240 mA provided for opto‑coupler operation. Jumpers let you choose internal or external power per block (inputs/outputs separately). Compatible with PIO‑16/16B(PCI)H for easy migration.

Built for Reliable Operation

  • Opto‑isolated bus — 500 Vrms isolation between PCI Express bus and I/O interfaces, excellent noise immunity.
  • On‑board power supply — 12VDC internal supply for opto‑couplers; no external power needed for inputs/outputs.
  • Surge protection — zener diode (RD47FM or equivalent) on each output transistor.
  • Overcurrent protection — per 8 output channels; protects output transistors from excessive current.
  • Digital filter — software‑configurable per input to reject noise and contact bounce.
  • Interrupt on all 16 inputs — edge selectable (rising/falling) per bit; disable/enable in bit units.

Full Specifications

Item Specification
Model DIO‑1616B‑PE
Input type Opto‑isolated (current sink compatible), negative logic
Input channels 16 (all interrupt‑capable, common per 16 channels)
Input resistance 4.7 kΩ
Input ON current 2.0 mA min
Input OFF current 0.16 mA max
Input response time 200 µs max
Output type Opto‑isolated open‑collector (current sink type), negative logic
Output channels 16 (common per 16 channels)
Output voltage rating 35 VDC max
Output current (ON) 100 mA per channel max
Residual voltage (ON) ≤0.5V at 50mA; ≤1.0V at ≤100mA
Surge protector Zener diode RD47FM or equivalent
Output response time 200 µs max
Interrupt All inputs, bit‑selectable, edge configurable
Digital filter Software‑configurable, all inputs
Bus interface PCI Express Base Spec Rev. 1.0a x1
I/O address Any 32‑byte boundary
Interrupt level 1 level
Max boards per system 16
Isolation voltage 500 Vrms
External circuit power supply 12‑24 VDC ±10%
Internal power supply 12 VDC, 240 mA (for opto‑couplers)
Power consumption (internal power) 3.3 VDC 350 mA max, 12 VDC 350 mA max
Power consumption (external power) 3.3 VDC 350 mA max
Connector 37‑pin D‑SUB (female)
Connecting distance 50 m (Typ, depending on wiring)
Dimensions (L × H) 121.69 × 110.18 mm
Weight 140 g
Operating temperature 0‑50°C
Operating humidity 10‑90% RH (no condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA

Connector & Cabling

The board uses a 37‑pin D‑SUB connector (female). Pin assignments: I‑00 to I‑17 (inputs), O‑20 to O‑37 (outputs), P0/P1 (common positive), N0/N1 (common negative), and NC. Jumpers select internal or external power per block.

  • Input common (P0/N0) — positive/negative side of external supply, or internal 12V output. Common to 16 input signals.
  • Output common (P1/N1) — positive/negative side of external supply, or internal 12V output. Common to 16 output signals.
  • Internal power — P0/P1 output +12V when internal power selected; N0/N1 serve as ground.
  • Optional cables — shielded/flat 37‑pin D‑SUB cables (PCB37PS, PCB37P).
  • Terminal boards — EPD‑37A (M3 spring‑up), EPD‑37 (M3.5), DTP‑3C, DTP‑4C; signal monitor CIM‑32L.

Certifications & Compliance

  • VCCI Class A — Japanese EMC for commercial/industrial environments.
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE (EMC Directive Class A + RoHS) — European conformity.
  • UKCA — UK conformity assessed.

Optional Accessories

Part Number Description
PCB37PS‑0.5P Shielded cable, 37‑pin D‑SUB both ends, 0.5m
PCB37PS‑1.5P Shielded cable, 37‑pin D‑SUB both ends, 1.5m
PCB37PS‑3P Shielded cable, 37‑pin D‑SUB both ends, 3m
PCB37PS‑5P Shielded cable, 37‑pin D‑SUB both ends, 5m
PCB37P‑1.5 Flat cable, 37‑pin D‑SUB both ends, 1.5m
PCB37P‑3 Flat cable, 37‑pin D‑SUB both ends, 3m
EPD‑37A Screw terminal (M3 × 37P, spring‑up)
EPD‑37 Screw terminal (M3.5 × 37P)
DTP‑3C General purpose terminal
DTP‑4C Screw terminal
CIM‑32L Signal monitor for digital I/O (32‑bit)

Software & Packing List

Item Description
Windows driver API‑DIO(WDM) – Win32 API, samples (C#, VB.NET, VC++, Python), diagnostic tool
Linux driver API‑DIO(LNX) – shared library, gcc (C/C++) and Python samples, config tool
SDK & support Additional software tools available for download
Packing List Product ×1, "Please read the following" document

Ready to add isolated I/O with on‑board power?

The DIO‑1616B‑PE is available through Contec Americas on a quote basis. Contact our sales team for volume pricing, cable assemblies, and integration support.
