NewSH-9000 Series8-Port Gigabit PoE+IEEE802.3af/atFan-less Design12-54 VDC InputDual Power InputsVCCI-A · FCC-A · CE · UKCA
Industrial 8-port Gigabit switching hub with 7 PoE+ (IEEE802.3af/at) output ports delivering up to 30W per port. Features wide 12–54 VDC input, dual power inputs for redundancy, fan-less design, jumbo frame support (9K byte), and DIN-rail or wall mounting. Ideal for high-speed industrial PoE networks.

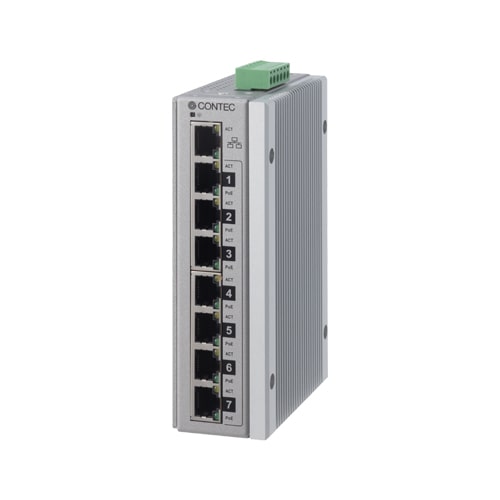

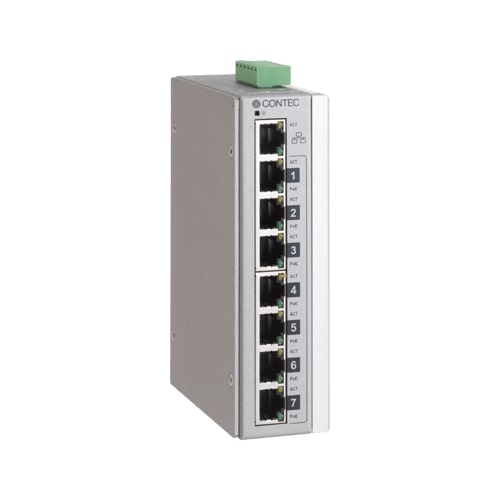

The SH-9008AT-POE2 is an industrial 8-port Gigabit switching hub that provides Power over Ethernet (PoE+) to connected devices. Seven of the eight ports support IEEE802.3af/at PoE output, delivering up to 30W per port and up to 105W total PoE budget (with 24–54 VDC input). The eighth port serves as a dedicated cascade connection port for daisy-chaining multiple switches. Jumbo frame support (9K byte) optimizes large data transfers.
Standard Gigabit Hub
No PoE power output
Requires separate power for each device
No cascade port for expansion
Limited temperature range
SH-9008AT-POE2 Advantages
7 PoE+ ports (30W per port)
Up to 105W total PoE budget
Dedicated cascade port for expansion
Dual power inputs for redundancy
Wide input voltage range (12–54 VDC) and dual power inputs — the switch continues to operate even if one power supply fails, ensuring high reliability in critical industrial applications.
02
Built for Industrial Environments
The SH-9008AT-POE2 is engineered for demanding industrial conditions. Its fan-less design ensures quiet operation and long lifetime, while the wide operating temperature range with derating options makes it suitable for harsh factory floors, outdoor cabinets, and transportation systems. DIN-rail and wall mounting options provide flexible installation.
Wide operating temperature — -40 to +70°C (with derating based on PoE load and input voltage).
Fan-less design — eliminates noise and moving parts for enhanced reliability.

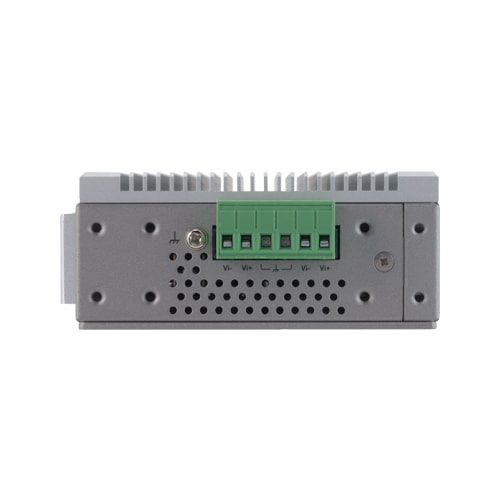

Dual power inputs — 12–54 VDC ±5% with FG pin, redundant operation.
Jumbo frame support — 9K byte frame size for efficient large data transfers.
DIN-rail or wall mounting — includes brackets for 35mm DIN-rail or wall installation.
VCCI Class A, FCC Class A, CE Marking (EMC, RoHS), UKCA
04
Mounting & Installation Options
The SH-9008AT-POE2 offers flexible mounting options for diverse industrial environments. The included brackets enable quick installation on 35mm DIN-rails or on walls, making it suitable for control cabinets, equipment racks, and distributed network installations.

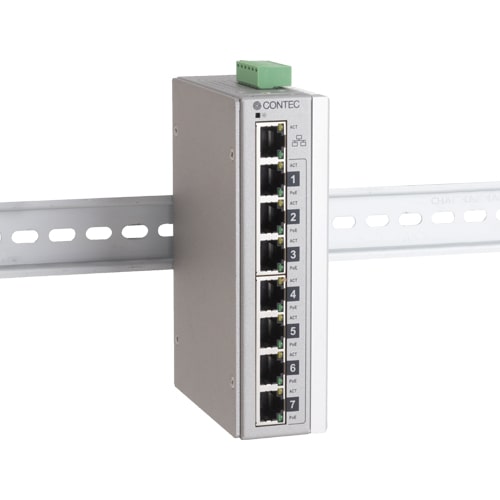

DIN-Rail Mount
35mm DIN-rail compatible bracket included
Quick snap-on installation
Ideal for control cabinets
Space-efficient vertical mounting
Wall Mount
Wall bracket included (M3 screw holes)
Secure fixed installation
Flexible placement in any orientation
Suitable for distributed deployments
05
Certifications and Compliance
VCCI Class A — Japanese voluntary control for electromagnetic interference (industrial environments).
FCC Class A — U.S. emissions compliance for industrial use.
CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
UKCA — UK Conformity Assessed marking for UK market compliance.
Line-noise resistance — AC line / ±2 kV, signal line / ±1 kV (IEC61000-4-4 Level 3).
No optional accessories are listed for this product.
—
Ready to power your high-speed industrial network?
The SH-9008AT-POE2 is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, installation requirements, and integration with your industrial Ethernet infrastructure.
