NewSH-9000 SeriesManaged Gigabit Switch8 PoE+ Ports + 2 SFPFan-less Design47-58 VDC InputDual Power InputsVCCI-A · FCC-A · CE · UKCA
Industrial managed 10-port Gigabit switch with 8 PoE+ (IEEE802.3af/at) ports delivering up to 30W per port (180W total) and 2 SFP slots for fiber uplinks. Features rich management functions including VLAN, QoS, RSTP, SNMP, dual power inputs, fan-less design, and -35 to +70°C operation. DIN-rail or wall mounting. Ideal for advanced industrial networks.

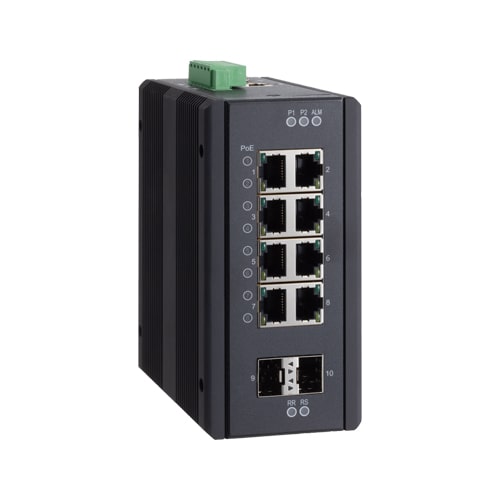

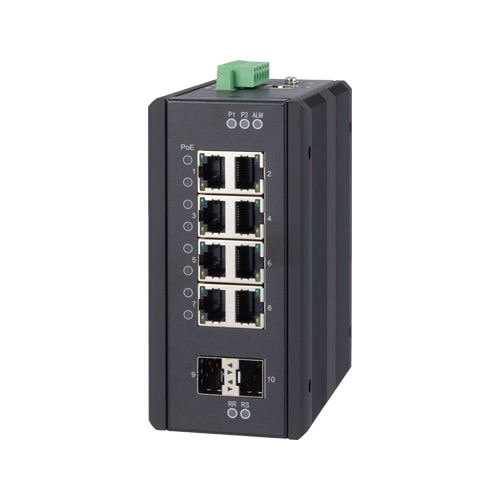

The SH-9210AT-POE is an industrial managed 10-port switching hub featuring 8 Gigabit PoE+ ports (IEEE802.3af/at) and 2 SFP slots for fiber uplinks. Up to 30W per port and 180W total PoE budget. Rich management functions including VLAN, QoS, RSTP, MSTP, SNMP, LACP, IGMP snooping, and port security provide comprehensive monitoring, control, and network reliability.
Unmanaged Switch
No network management
Limited VLAN/QoS capabilities
No redundancy protocols
Basic monitoring only
SH-9210AT-POE Advantages
VLAN, QoS, RSTP, MSTP, SNMP
8 PoE+ ports (180W total)
2 SFP slots for fiber
Dual power inputs with failover

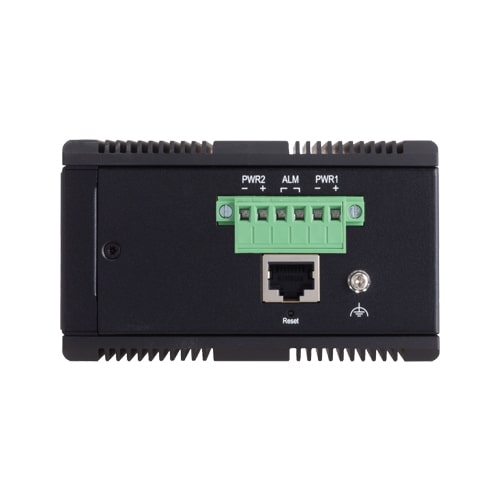

Wide input voltage range (47–58 VDC) and dual power inputs — the switch continues to operate even if one power supply fails. Power failure detection relay and front-panel LEDs provide immediate visual indication of power supply status.
02
Built for Harsh Industrial Environments
The SH-9210AT-POE is engineered for demanding industrial conditions. Its fan-less metal housing provides excellent heat dissipation across a wide -35 to +70°C operating range. The dual power inputs with failure detection, combined with rich management features including Ring V2 protection (<20ms recovery), ensure high reliability in critical applications.
Extended operating temperature — -35 to +70°C for harsh factory floors and outdoor cabinets.
Fan-less design — silent operation and extended product lifetime.
Dual power inputs — 47–58 VDC with power failure detection relay and LED alarms.
Ring V2 protection — link loss recovery <20ms; single ring & chain supported.
47 – 58 VDC ±5% (53–57 VDC recommended for IEEE802.3at)
Current Consumption (Max)
Without PoE: 53V 0.16A / With PoE: 53V 4.10A
Dimensions (H×D×W)
130 × 105 × 62 mm (exclusive of protrusions)
Weight
1000g
Mounting
DIN-rail (35mm) or wall
Management Interfaces
CLI, WEB, SNMP v1/v2c/v3, Telnet
Management Security
HTTPS, SSH
VLAN
Port-based, IEEE802.1Q tag-based, IEEE802.1ad Double Tagging (Q-in-Q), up to 1024 VLANs
Redundancy
Ring V2 (<20ms recovery), STP, RSTP, MSTP, LACP
Certifications
VCCI Class A, FCC Class A, CE Marking (EMC, RoHS), UKCA
04
Mounting & Installation Options
The SH-9210AT-POE offers flexible mounting options for diverse industrial environments. The included brackets enable quick installation on 35mm DIN-rails or on walls, making it suitable for control cabinets, equipment racks, and distributed network installations.

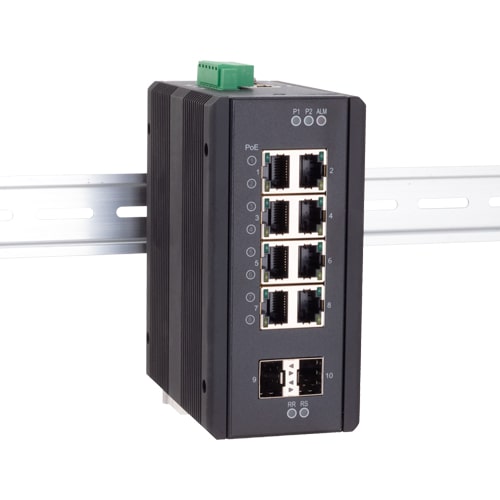

DIN-Rail Mount
35mm DIN-rail compatible bracket included
Quick snap-on installation
Ideal for control cabinets
Space-efficient vertical mounting
Wall Mount
Wall bracket included (M3 screw holes)
Secure fixed installation
Flexible placement in any orientation
Suitable for distributed deployments
05
Certifications and Compliance
VCCI Class A — Japanese voluntary control for electromagnetic interference (industrial environments).
FCC Class A — U.S. emissions compliance for industrial use.
CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
UKCA — UK Conformity Assessed marking for UK market compliance.
Line-noise resistance — AC line / ±2 kV, signal line / ±1 kV (IEC61000-4-4 Level 3).
The SH-9210AT-POE is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, SFP module selection, and integration with your industrial network infrastructure.
