Description

New AD Series 64ch / 32ch Diff 12-Bit Resolution 10µsec (100 KSPS) Per-Channel Range + Digital I/O VCCI-A · CE · UKCA

High-channel-count analog input with 64 single-ended or 32 differential channels, 12-bit resolution, and 10µsec conversion speed (100 KSPS). The AD12-64(PCI) features software-selectable input ranges per channel, 4 digital inputs, 4 digital outputs, and a programmable timer. Windows/Linux drivers.

64/32 Single-Ended / Differential
12-bit Resolution
10µs Conversion Speed (100 KSPS)
8 Input Ranges (Per Channel)
Contec Americas · AD Series
High-Channel-Count Analog Input

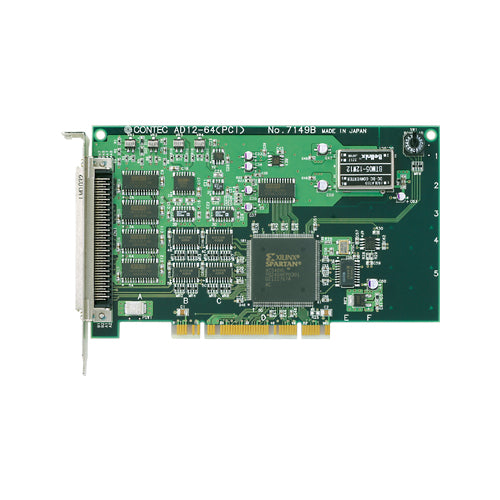

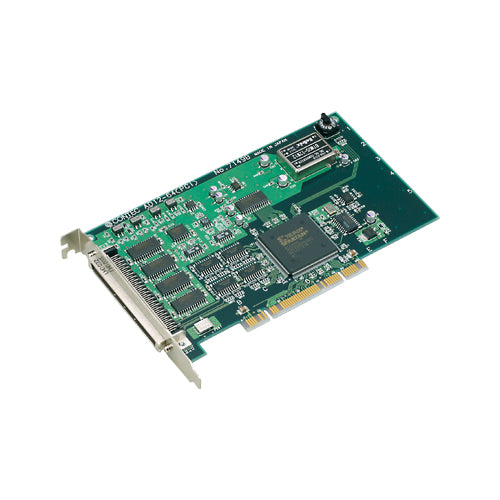

AD12-64(PCI) · 64ch SE / 32ch Diff · 12-bit · 100 KSPS
View Collection

High-Channel-Count
Analog Input

The AD12-64(PCI) provides 64 single-ended or 32 differential analog input channels with 12-bit resolution and 10µsec (100 KSPS) conversion speed. Input ranges can be selected per channel via software from eight bipolar and unipolar ranges. The board supports both internal and external sampling clocks, and includes 4 digital inputs and 4 digital outputs.

Analog Input
  • 64ch single-ended or 32ch differential
  • 12-bit resolution
  • 10µsec conversion speed (100 KSPS)
  • 8 software-selectable ranges per channel
  • Internal or external sampling clock
Digital I/O & Timer
  • 4 digital inputs (TTL, positive logic)
  • 4 digital outputs (TTL, positive logic)
  • Programmable timer: 500ns – 1,073,741,824,000ns
  • External trigger input (TTL falling edge)
  • Timer output and sampling busy output

Per-channel range selection — Input range can be selected for each channel from ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V, and 0-1.25V via software.

Sampling Control
& Digital I/O

Designed for flexible data acquisition, the AD12-64(PCI) includes powerful sampling control functions and digital I/O for external device monitoring and control.

  • Sampling control — Software-controlled arbitrary timing or periodic synchronization with internal/external sampling clock.
  • Internal sampling clock — 10,000 – 1,073,741,824,000ns, settable in 250ns increments.
  • External sampling clock — TTL level, falling edge triggered.
  • Programmable timer — 500 – 1,073,741,824,000ns, settable in 250ns increments.
  • Digital I/O — 4 TTL-level inputs and 4 TTL-level outputs for external device monitoring and control.
  • External trigger — TTL level, falling edge triggered, with overrun status monitoring.

Full Specifications

Specification Detail
Model AD12-64(PCI)
Analog Input Isolation Un-Isolated
Input Type Single-Ended (64ch) or Differential (32ch) — Driver selectable
Input Ranges Bipolar: ±10V, ±5V, ±2.5V, ±1.25V / Unipolar: 0-10V, 0-5V, 0-2.5V, 0-1.25V (Software per channel)
Absolute Max Input Voltage ±15V
Input Impedance 1MΩ or more
Resolution 12-bit
Non-Linearity Error ±2LSB (±10V, ±5V, 0-10V, 0-5V) / ±4LSB (±2.5V, ±1.25V, 0-2.5V) / ±8LSB (0-1.25V)
Conversion Speed 10µsec (100 KSPS) max
Sampling Clock Internal: 10,000 – 1,073,741,824,000ns (250ns step) / External: TTL falling edge
Digital Inputs 4ch TTL (positive logic)
Digital Outputs 4ch TTL (positive logic)
Programmable Timer 500 – 1,073,741,824,000ns (250ns step)
External Trigger 1ch TTL falling edge
I/O Address 32 ports boundary
Interrupt Errors and various factors, INTA
Power Consumption +5VDC 700mA (Max.)
PCI Bus Specification 32-bit, 33MHz, Universal key (requires +5V)
Dimensions (mm) 176.41(L) x 105.68(H) (varies by board number)
Weight 150g
Operating Temperature 0 – 50°C
Operating Humidity 10 – 90%RH (No condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA, KC

Software &
Operating System Support

The AD12-64(PCI) includes comprehensive software support for Windows and Linux, enabling rapid application development.

Windows
  • API-AIO(WDM) driver
  • Win32 API functions (DLL)
  • Sample programs: Visual Basic, Visual C++
  • Diagnostic program for hardware testing
Linux
  • API-AIO(LNX) shared library
  • Sample programs: gcc (C, C++), Python
  • Configuration tool for device settings
  • Diagnostic utilities

Software development kits (SDKs) and additional support software are available for download from the CONTEC website to simplify integration.

Optional Accessories

Product Name Model Description
Shielded Cable (96-Pin Half-Pitch, Both Ends) PCB96PS-05P / -15P 0.5m / 1.5m
Flat Cable (96-Pin Half-Pitch, Both Ends) PCB96P-15 1.5m
Shielded Cable (96-Pin Half-Pitch, One End) PCA96PS-05P / -15P 0.5m / 1.5m
Flat Cable (96-Pin Half-Pitch, One End) PCA96P-15 1.5m
Screw Terminal (M3 * 96) EPD-96A Spring-up type
Screw Terminal (M3.5 * 96) EPD-96 —
Screw Terminal (M3 * 96P) DTP-64A —

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial/industrial).
  • CE Marking — EMC Directive Class A, RoHS Directive. European conformity.
  • UKCA — UK Conformity Assessed marking for UK market.
  • KC — Korea Certification for electromagnetic compatibility.

Ready to integrate high-channel-count analog input?

The AD12-64(PCI) is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your PCI system.
