AI-1608GY-USB

AI-1608GY-USB

Contact Sales Department for Pricing New USB2.0 16‑bit Analog Input 8 Channels 4µsec/ch Bus Powered VCCI-A · FCC-A · CE · UKCA High‑speed 16‑bit analog input for USB. The AI‑1608GY‑USB delivers 8 single‑ended channels at 4µsec/ch conversion, plus 4 digital I/O. Bus‑powered, compact, and equipped with 8K FIFO/RING buffer memory....
Fournisseur: Contec Americas
UGS : LRKS283
Disponibilité: 5 En stock
Type de produit : Accessory
$235.39 USD
$235.39 USD
Total: $235.39 USD
📋

Datasheet

AI-1608GY-USB

Download PDF

Livraison gratuite

Livraison standard gratuite pour les commandes de plus de 500 $

Paiements sécurisés

Traitement conforme à la norme PCI DSS

Les prix sont sujets à changement en fonction des tarifs applicables.

Les prix sont sujets à changement en fonction des tarifs applicables et des droits d'importation. Nous informerons les clients de tout changement de prix avant la confirmation de la commande.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description

New USB2.0 16‑bit Analog Input 8 Channels 4µsec/ch Bus Powered VCCI-A · FCC-A · CE · UKCA

High‑speed 16‑bit analog input for USB. The AI‑1608GY‑USB delivers 8 single‑ended channels at 4µsec/ch conversion, plus 4 digital I/O. Bus‑powered, compact, and equipped with 8K FIFO/RING buffer memory. External trigger, clock, and start/stop control for flexible measurement. Windows/Linux drivers included. From Contec Americas.

8 Analog Input Channels
16 Bit Resolution
4µs Conversion Speed
8K FIFO/RING Buffer
Contec Americas · USB I/O
AI‑1608GY‑USB
8‑Ch 16‑Bit High‑Speed USB Analog Input · Bus Powered
View Collection

High‑Speed
Analog Input

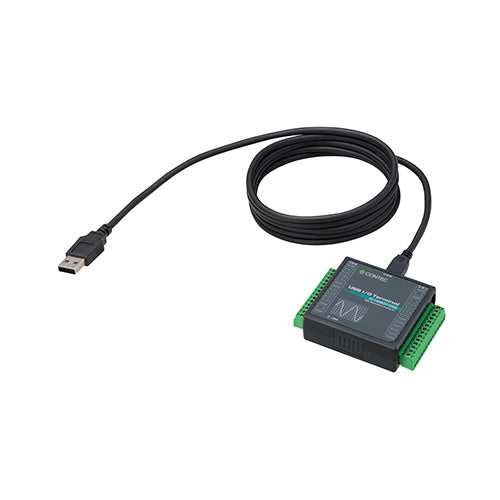

The AI‑1608GY‑USB is a USB2.0 bus‑powered terminal module that adds high‑resolution analog input to any PC. With 8 single‑ended channels, 16‑bit resolution, and 4µsec/ch conversion speed, it is ideal for data acquisition, portable measurement, and test applications. The terminal includes 8K data buffer memory configurable as FIFO or ring format.

Analog Input
  • 8 channels, single‑ended
  • 16‑bit resolution
  • ±10V bipolar input range
  • 4µsec/ch max conversion
  • Input impedance 1MΩ
Digital I/O & Control
  • 4 digital inputs (LVTTL)
  • 4 digital outputs (LVTTL)
  • External trigger start/stop
  • External clock input
  • Software trigger/stop

Buffer memory: 8K data (8192) in FIFO or ring format. The driver expands buffer to 256×1024 data. Sampling clock and number of channels affect the achievable conversion rate – refer to the specification table for exact timing.

Compact & Bus‑Powered
USB Design

Designed for mobility and ease of integration. The AI‑1608GY‑USB is powered directly from the USB bus – no external power supply required. Its compact form factor (64×62×24 mm) and screw‑type terminal connector simplify wiring in portable and benchtop setups.

  • USB2.0 / USB1.1 compatible — High‑speed (480 Mbps) and full‑speed (12 Mbps) transfer. Compatible with USB 1.1 hosts.
  • Bus powered — No external power needed. Consumes 5VDC 375mA (max).
  • Screw terminal connector — Direct wiring to analog and digital signals. Supplied connector plug included.
  • Software‑based adjustment — Calibration and offset adjustment via software. Store user‑specific calibration data.
  • Compact and lightweight — 64(W) × 62(D) × 24(H) mm, 90g (without cable). Ideal for portable and field use.

Full Specifications

Specification Detail
Model AI-1608GY-USB
Analog input channels 8 channels, single‑ended, un‑isolated
Input range Bipolar ±10V
Maximum input voltage ±20V
Input impedance 1MΩ or more
Resolution 16 bits
Non‑linearity error ±12 LSB
Conversion speed 4µsec/ch (max)
Buffer memory 8K data (FIFO / ring)
Conversion start trigger Software / external trigger
Conversion stop trigger Number of samples / external trigger / software
External start/stop signal LVTTL (DI00/DI01 pins, edge selectable)
External clock signal LVTTL (DI02 pin, edge selectable)
Digital input 4 channels, LVTTL positive logic (un‑isolated)
Digital output 4 channels, LVTTL positive logic (un‑isolated)
USB specification USB 2.0 / 1.1, Full‑speed / High‑speed
Power supply Bus power (5VDC 375mA max)
Dimensions (mm) 64(W) × 62(D) × 24(H) (excl. protrusions)
Weight 90g (without cable)
Operating temperature 0 – 50°C
Operating humidity 10 – 90%RH (no condensation)
Standards VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA
Included items Product, interface connector (2), USB cable 1.8m, cable attachment, manual
Datasheet version As of July 2024

Optional Accessories

Product Name Model Note
14‑pin Screw Terminal Connector Set CN6-Y14 6 pieces
Bracket for USB I/O Terminal products BRK-USB-Y Mounting bracket

Visit the CONTEC website for the latest optional products and software.

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial/industrial environments).
  • FCC Class A — U.S. emissions compliance for industrial use environments.
  • CE (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking for UK market compliance.

Ready to add high‑speed analog input via USB?

The AI‑1608GY‑USB is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your measurement and control systems.

Tags AI-1608GY-USB USB Analog Input 16-Bit Analog Input 8-Channel Analog Input USB Data Acquisition High-Speed USB DAQ DAQ Terminal Contec USB I/O Bus Powered High-Speed USB LVTTL I/O Test & Measurement Portable Measurement Windows Driver Linux Driver
