GPIB-FL2-USB

GPIB-FL2-USB

Contact Sales Department for Pricing New GPIB-FL2-USB IEEE-488.1/488.2 1.5 Mbyte/sec USB 2.0 Bus-Powered · 2K Buffer VCCI-A · FCC · CE · UKCA High-speed USB to GPIB converter compatible with IEEE-488.1/488.2 standards. Supports up to 1.5 Mbyte/sec transfer rate, bus-powered operation, 2K transmit/receive buffers, and SPAS event support. Includes Windows/LabVIEW...
Fournisseur: Contec Americas
UGS : LRKW34
Disponibilité: 20 En stock
Type de produit : Accessory
$101.59 USD
$380.13 USD
$101.59 USD
Total: $101.59 USD
📋

Datasheet

GPIB-FL2-USB

Download PDF

Livraison gratuite

Livraison standard gratuite pour les commandes de plus de 500 $

Paiements sécurisés

Traitement conforme à la norme PCI DSS

Les prix sont sujets à changement en fonction des tarifs applicables.

Les prix sont sujets à changement en fonction des tarifs applicables et des droits d'importation. Nous informerons les clients de tout changement de prix avant la confirmation de la commande.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description

New GPIB-FL2-USB IEEE-488.1/488.2 1.5 Mbyte/sec USB 2.0 Bus-Powered · 2K Buffer VCCI-A · FCC · CE · UKCA

High-speed USB to GPIB converter compatible with IEEE-488.1/488.2 standards. Supports up to 1.5 Mbyte/sec transfer rate, bus-powered operation, 2K transmit/receive buffers, and SPAS event support. Includes Windows/LabVIEW drivers and diagnostic software. API-compatible with GP-IB(USB)FL.

1.5 MB/s Max. transfer rate
2K / 2K Tx/Rx buffer size
USB 2.0 High-speed interface
Bus-powered No external power needed
Contec Americas · GPIB Communication
GPIB-FL2-USB
USB · GPIB · IEEE-488 · High-Speed
View Collection

High-Speed GPIB
via USB

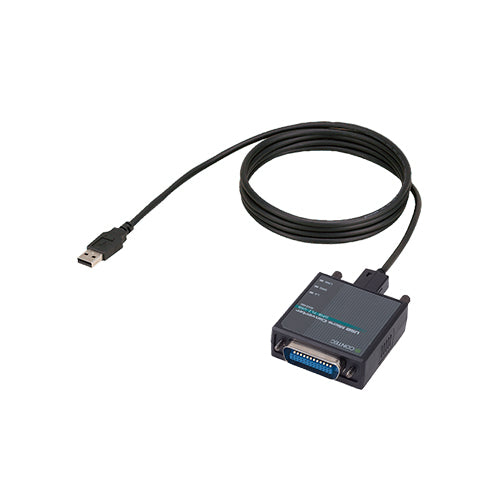

The GPIB-FL2-USB is a micro converter that converts a PC's USB port to a GPIB communication port compatible with IEEE-488.1/488.2 standards. It supports transfer rates up to 1.5 Mbyte/sec and can be set as either a master (controller) or a slave. The included USB cable (1.8 m) allows connection to any GPIB instrument without additional GPIB cables.

GPIB Features
  • IEEE-488.1/488.2 compatible
  • Up to 1.5 Mbyte/sec transfer rate
  • Master or slave mode selectable
  • 2K byte transmit buffer
  • 2K byte receive buffer
USB & Power
  • USB 2.0/1.1 compatible
  • High-speed (480 Mbps) transfer
  • Bus-powered — no external power
  • SPAS event support (slave mode)
  • μPD7210 register-compatible controller

CONTHE High-speed GPIB controller — Employs a self-developed high-speed GPIB controller (μPD7210 register-compatible), providing steady supply and reliability. Includes built-in SPAS event function when operating as a slave.

Plug-and-Play & Compatibility

The GPIB-FL2-USB is API-compatible with the GP-IB(USB)FL, allowing existing applications to be used without modification. It is bus-powered, eliminating the need for an external power supply. The included USB cable (1.8 m) enables direct connection to GPIB instruments.

  • API-compatible — Applications developed with GP-IB(USB)FL can be used with GPIB-FL2-USB.
  • Bus-powered — Powered by USB bus, no external power supply required.
  • High-speed controller — Self-developed GPIB controller (μPD7210 register-compatible) ensures stable supply.
  • SPAS event support — Supports SPAS event generated during serial poll when operating in slave mode.
  • Windows/LabVIEW support — Support software available for Windows and LabVIEW development.

Full Specifications

Specification Detail
Contec Model GPIB-FL2-USB
GPIB Channels 1
Transfer Format IEEE-488.1/488.2 compatible
Transfer Rate 1.5 Mbyte/sec max
Data Buffer 2K bytes transmit / 2K bytes receive
Signal Logic TTL
Max Cable Length Between Devices 2 m (typical)
Total Cable Length 20 m (max)
Max Connectable Devices 15
USB Specification USB 2.0/1.1
USB Transfer Rate 12 Mbps (Full-speed), 480 Mbps (High-speed)
USB Cable Length 1.8 m (included)
Power Supply Bus power (USB)
Current Consumption 400 mA max
Dimensions (W x D x H) —
Weight 100 g (excluding USB cable and attachments)
Operating Temperature 0 to 50 °C
Humidity 10 to 90% RH (no condensation)
Certifications VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA
Included Items Product, USB cable (1.8 m), USB cable attachment, documentation

Software & Driver Support

The GPIB-FL2-USB is supported by software available on the Contec website for Windows and LabVIEW. A diagnostic program is included to confirm hardware operation and perform basic communication tests with connected equipment.

Supported Software
  • Windows driver support
  • LabVIEW support
  • Diagnostic program included
  • Download from Contec website
Key Features
  • Basic communication test
  • Hardware operation confirmation
  • Easy integration with applications
  • API-compatible with GP-IB(USB)FL

Certifications & Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial and industrial environments).
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE (EMC Directive Class A + RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking.

Optional Accessories

Part Number Description Use
PCN-T02 GPIB cable, 2 m GPIB connection to instruments
PCN-T04 GPIB cable, 4 m GPIB connection to instruments
CN-GPIC GPIB connector adapter Fits when product interferes with target device

Ready to add GPIB communication via USB?

The GPIB-FL2-USB is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your Windows or LabVIEW application.

Tags GPIB-FL2-USB USB GPIB Converter GPIB Communication IEEE-488.2 USB to GPIB High-Speed GPIB Test & Measurement LabVIEW GPIB Contec GPIB Instrument Control Windows/LabVIEW Driver VCCI-A FCC-A CE Mark UKCA
