Contact Sales Department for Pricing New PIO-16/16T(PCI)H 16 TTL Inputs 16 Open-Collector Outputs 200 ns Response Interrupt on all inputs Digital Filter VCCI-A · FCC-A · CE · UKCA 16 non‑isolated TTL level inputs and 16 non‑isolated open‑collector outputs on a PCI board. 200 ns response, all inputs can be...
Fournisseur: Contec Americas
UGS : LRBP42
Disponibilité: En stock
Type de produit : Accessory
$0.00 USD
$0.00 USD
Total: $0.00 USD
📋

Datasheet

PIO-16/16T(PCI)H

Download PDF

Livraison gratuite

Livraison standard gratuite pour les commandes de plus de 500 $

Paiements sécurisés

Traitement conforme à la norme PCI DSS

Les prix sont sujets à changement en fonction des tarifs applicables.

Les prix sont sujets à changement en fonction des tarifs applicables et des droits d'importation. Nous informerons les clients de tout changement de prix avant la confirmation de la commande.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description

New PIO-16/16T(PCI)H 16 TTL Inputs 16 Open-Collector Outputs 200 ns Response Interrupt on all inputs Digital Filter VCCI-A · FCC-A · CE · UKCA

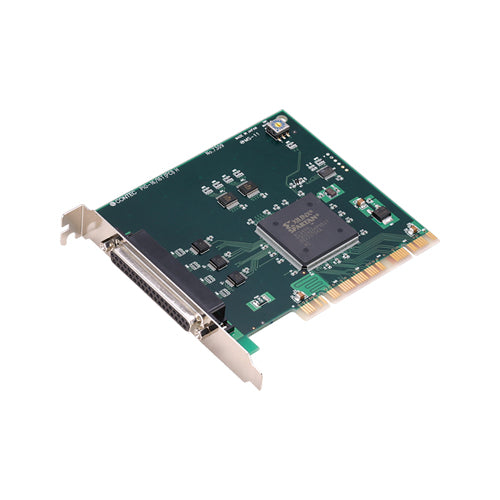

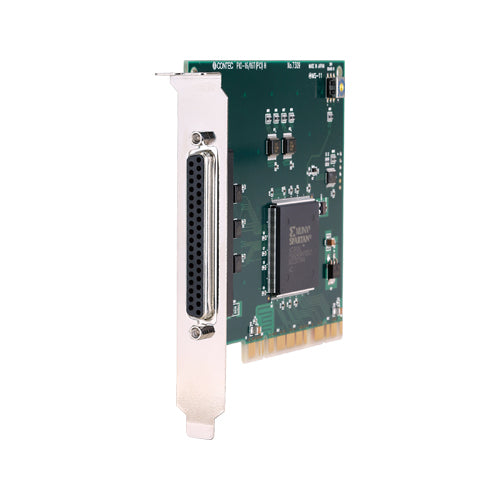

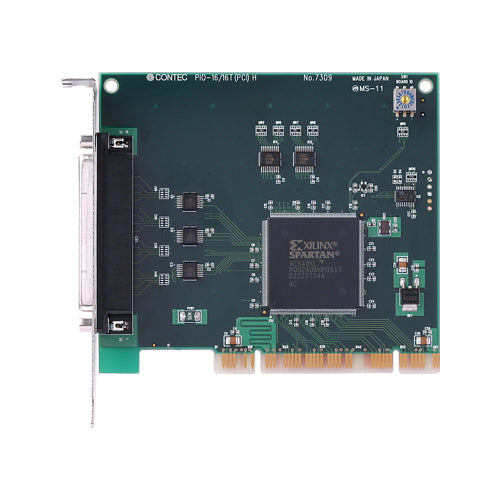

16 non‑isolated TTL level inputs and 16 non‑isolated open‑collector outputs on a PCI board. 200 ns response, all inputs can be used as interrupts with selectable edge triggering. Digital filter rejects noise and contact bounce.

16 Input Channels
16 Output Channels
40mA Max Output / ch
200ns Response Time
Contec Americas · PCI Digital I/O
16‑Channel TTL I/O Board
PIO-16/16T(PCI)H · TTL · Interrupt · Digital Filter · 200 ns
View Collection

High‑Speed TTL I/O
for PCI Systems

The PIO‑16/16T(PCI)H provides 16 TTL‑level inputs and 16 open‑collector outputs on a PCI board. All inputs can be used as interrupt request signals with per‑bit enable/disable and selectable edge triggering. A digital filter prevents false recognition from noise or chattering.

Input Features
  • 16 channels, TTL level
  • Non-isolated, negative logic
  • All inputs can be interrupt sources
  • Bit‑selectable interrupt edge
  • Digital filter (software‑configurable)
Output Features
  • 16 channels, open-collector
  • Non-isolated, negative logic
  • 30 VDC max, 40 mA per channel
  • 200 ns response time
  • No internal pull‑up (external required)

Compatibility with PIO‑16/16T(PCI) — same functions and connector pinout for easy migration from existing systems.

Built for Reliable Control

  • 200 ns response time — fast TTL I/O suitable for high‑speed control and data acquisition.
  • Digital filter — software‑enabled per input to reject noise and contact bounce.
  • Interrupt on all inputs — edge selectable (rising/falling) per bit.
  • PCI 32‑bit, 33 MHz — Universal key, requires +5V.
  • +5V output protection — overcurrent protection on +5V outputs.

Full Specifications

Item Specification
Model PIO‑16/16T(PCI)H
Input type Non-isolated TTL level (negative logic)
Input channels 16 (all interrupt‑capable, 1 common)
Input resistance 10 kΩ
Output type Non-isolated open-collector (negative logic)
Output channels 16 (1 common)
Output rating 30 VDC max, 40 mA per channel max
Response time 200 ns
Interrupt All inputs, bit‑selectable, edge configurable
Digital filter Software‑configurable, all inputs
Bus interface 32‑bit, 33 MHz PCI (Universal key, requires +5V)
I/O address Any 32‑byte boundary
Interrupt level 1 level
Max boards per system 16
Connector 37‑pin D‑SUB (female)
Connecting distance 1.5 m (Typ, depending on wiring)
Power consumption 5 VDC (from PCI slot)
Dimensions (L × H) –
Weight –
Operating temperature 0‑50°C
Operating humidity 10‑90% RH (no condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA

Connector & Cabling

The board uses a 37‑pin D‑SUB connector (female). Pin assignments: I‑00 to I‑17 (inputs), O‑20 to O‑37 (outputs), Vcc (+5V output), GND, and NC. Inputs are TTL level, internally pulled up, active low. Outputs are open‑collector, active low, require external pull‑up.

  • Input signals — TTL level, internally pulled up, active low.
  • Output signals — open‑collector, active low, require external pull‑up.
  • Optional cables — shielded/flat 37‑pin D‑SUB cables (PCB37PS, PCB37P).
  • Terminal boards — EPD‑37A (M3 spring‑up), EPD‑37 (M3.5), DTP‑3C, DTP‑4C; signal monitor CIM‑32L.

Certifications & Compliance

  • VCCI Class A — Japanese EMC for commercial/industrial environments.
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE (EMC Directive Class A + RoHS) — European conformity.
  • UKCA — UK conformity assessed.

Optional Accessories

Part Number Description
PCB37PS‑0.5P Shielded cable, 37‑pin D‑SUB both ends, 0.5m
PCB37PS‑1.5P Shielded cable, 37‑pin D‑SUB both ends, 1.5m
PCB37P‑1.5 Flat cable, 37‑pin D‑SUB both ends, 1.5m
PCA37PS‑0.5P Shielded cable, 37‑pin D‑SUB one end, 0.5m
PCA37PS‑1.5P Shielded cable, 37‑pin D‑SUB one end, 1.5m
PCA37P‑1.5 Flat cable, 37‑pin D‑SUB one end, 1.5m
EPD‑37A Screw terminal (M3 × 37P, spring‑up)
EPD‑37 Screw terminal (M3.5 × 37P)
DTP‑3C General purpose terminal
DTP‑4C Screw terminal
CIM‑32L Signal monitor for digital I/O (32‑bit)

Software & Packing List

Item Description
Windows driver API‑DIO(WDM) – Win32 API, samples (C#, VB.NET, VC++, Python), diagnostic tool
Linux driver API‑DIO(LNX) – shared library, gcc (C/C++) and Python samples, config tool
SDK & support Additional software tools available for download
Packing List Product ×1, "Please read the following" document

Ready to add TTL I/O?

The PIO‑16/16T(PCI)H is available through Contec Americas on a quote basis. Contact our sales team for volume pricing, cable assemblies, and integration support.
