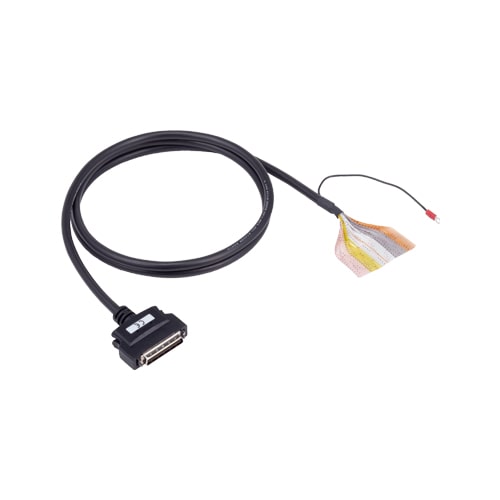

PCA50PS-0.5P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type, 0.5m)

PCA50PS-0.5P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type, 0.5m)

Contact Sales Department for Pricing New Shield Cable 50-pin Mini Ribbon Open-Ended AWG#28 0.5m / 1.5m / 3m CE (RoHS) · UKCA Shielded cable for connecting a 50-pin mini-ribbon connector (3M 0150-6000EL or equivalent) to open-ended leads. Available in 0.5m, 1.5m, and 3m lengths. Features 50-core (25-pair) shield with AWG#28 conductors, UL20276 rated, with round terminal lugs for easy termination. 50 Mini Ribbon Connector 0.5 / 1.5 / 3 Lengths (m) 28 AWG Conductor 25 Pairs Contec Americas · Interface...
Venditore: Contec Americas
SKU: PCA50PS-0.5P
Tipo di prodotto: Accessory
£41.00
£41.00
📋

Datasheet

PCA50PS-0.5P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type, 0.5m)

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
Description

New Shield Cable 50-pin Mini Ribbon Open-Ended AWG#28 0.5m / 1.5m / 3m CE (RoHS) · UKCA

Shielded cable for connecting a 50-pin mini-ribbon connector (3M 0150-6000EL or equivalent) to open-ended leads. Available in 0.5m, 1.5m, and 3m lengths. Features 50-core (25-pair) shield with AWG#28 conductors, UL20276 rated, with round terminal lugs for easy termination.

50 Mini Ribbon Connector
0.5 / 1.5 / 3 Lengths (m)
28 AWG Conductor
25 Pairs
Contec Americas · Interface Cables
50-pin Mini Ribbon to Open-Ended Cable
PCA50PS-0.5P · PCA50PS-1.5P · PCA50PS-3P · Shielded · AWG#28
View Collection
01

Shielded cable
for CONTEC board interfaces

The PCA50PS series provides a shielded connection from a 50-pin mini-ribbon connector (typically found on CONTEC interface boards) to open-ended leads. The cable features 50-core (25-pair) shield with AWG#28 conductors, UL20276 rated, and round terminal lugs (RAA1.25-3) for easy termination.

Connector Side
  • 50-pin mini-ribbon
  • 3M 0150-6000EL or equivalent
  • Latch release button
  • Fits CONTEC boards
Open-Ended Side
  • Laminated process (1.27mm pitch)
  • Round terminal lugs
  • RAA1.25-3 (ST) or equivalent
  • Easy field termination

Shielded cable: 50-core (25-pair) shield cable with AWG#28 conductors (7 strands of 0.127 mm each). UL20276 rated (UL2464 for some revisions).

02

Length options

Choose the length that fits your installation — 0.5m, 1.5m, or 3m. All variants share the same shielded construction and AWG#28 conductors.

  • PCA50PS-0.5P – 500 mm length, 170 g weight.
  • PCA50PS-1.5P – 1500 mm length, 340 g weight.
  • PCA50PS-3P – 3000 mm length, 590 g weight.
03

Full specifications

Specification Detail
Model PCA50PS-0.5P / PCA50PS-1.5P / PCA50PS-3P
Connector 50-pin mini-ribbon: 0150-6000EL (3M) or equivalent
Cable type 50-core shield cable (25-pair)
Conductor size AWG#28
Conductor composition 7 strands of 0.127 mm
UL rating UL20276 (UL2464 for some revisions)
Wire terminals RAA1.25-3 (ST) or equivalent
Terminal pitch Laminated process at 1.27mm pitch
Lengths 0.5m (500mm) / 1.5m (1500mm) / 3m (3000mm)
Weight 170g (0.5m) / 340g (1.5m) / 590g (3m)
Standard CE (RoHS Directive), UKCA
04

Connector handling

  • Removal – Push the connector back toward the card side once, then press the latch release button and pull it straight out.
  • Connection diagram – Line core color depends on the product revision; refer to the label on the connector.
05

Certifications & compliance

  • CE (RoHS Directive) – European conformity for restriction of hazardous substances.
  • UKCA – UK Conformity Assessed marking.
  • UL20276 / UL2464 – Cable rating (varies by revision).
06

Optional accessories

No optional accessories are specified for this cable. Contact sales for custom lengths or other connector configurations.

Need a shielded cable for your CONTEC board?

The PCA50PS series is available through Contec Americas on a quote basis. Contact our sales team for quantity, custom lengths, or integration with your existing system.
