1‑port PCI Express Gigabit Ethernet network card (LAN board) compliant with IEEE802.3ab (1000BASE‑T), IEEE802.3u (100BASE‑TX), and IEEE802.3 (10BASE‑T). Supports Low Profile and standard slots. Wide operating temperature range: -40°C to +75°C.

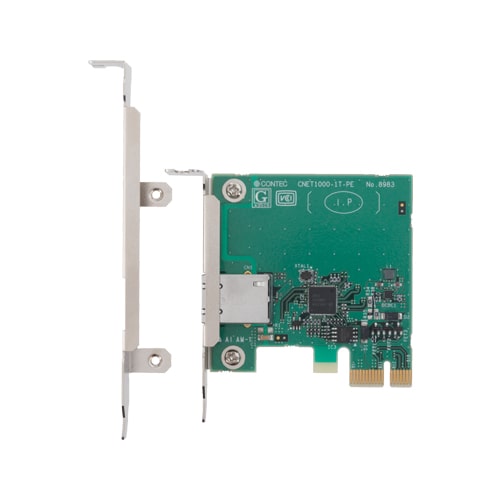

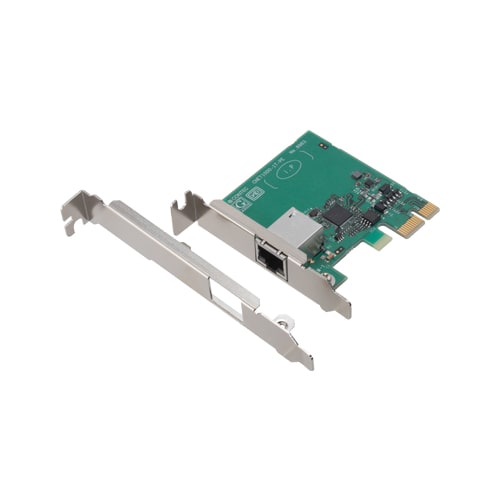

The CNET1000‑1T‑PE is a 1‑port PCI Express Ethernet network card (LAN board) compliant with IEEE802.3ab (1000BASE‑T), IEEE802.3u (100BASE‑TX), and IEEE802.3 (10BASE‑T). It supports Low Profile and standard size slots with the included bracket. Designed for demanding industrial environments with a wide operating temperature range.
Wide temperature operation — designed for industrial applications with operating temperature range from -40°C to +75°C, suitable for harsh environments.
| Item | Specification |
|---|---|
| Model | CNET1000‑1T‑PE |
| Ethernet standards | IEEE802.3ab (1000BASE‑T), IEEE802.3u (100BASE‑TX), IEEE802.3 (10BASE‑T) |
| Data transfer rate | 10/100/1000 Mbps (auto‑negotiation) |
| Access method | CSMA/CD |
| Communications method | Full/Half duplex (auto‑negotiation) |
| Number of ports | 1 |
| Connector | RJ45 ×1 |
| Jumbo Frame | 9.5KB |
| LED indicators | LINK/ACT (Yellow), 10M (OFF), 100M (Green), 1G (Orange) |
| Power consumption | 3.3 VDC, 250 mA max |
| Bus interface | PCI Express Base Spec v2.1 Gen 1 (2.5 GT/s) x1 |
| Dimensions (L × H) | 66.4 × 68.9 mm |
| Weight | 50 g |
| Operating temperature | -40 to +75°C |
| Operating humidity | 10‑90% RH (no condensation) |
| Certifications | VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA |
The board features one RJ45 connector for Ethernet connection. LED indicators provide link/activity and speed status: LINK/ACT (Yellow), Speed LED: 10M (OFF), 100M (Green), 1G (Orange).
| Part Number | Description |
|---|---|
| – | Consult Contec website for available cables and accessories |
| Item | Description |
|---|---|
| Windows driver | Windows driver for installer (download from CONTEC website) |
| Linux driver | Linux version driver (download from CONTEC website) |
| Packing List | Product ×1, standard size bracket ×1, common guide ×1 |
The CNET1000‑1T‑PE is available through Contec Americas on a quote basis. Contact our sales team for volume pricing and integration support.
