COM-4(PCI)H | 4-Channel RS-232C Serial I/O Board | Contec Americas
New COM-4(PCI)H 4 RS-232C Ports 921,600 bps 128-byte FIFO Standard COM Ports Up to 16 boards VCCI-A · FCC-A · CE · UKCA

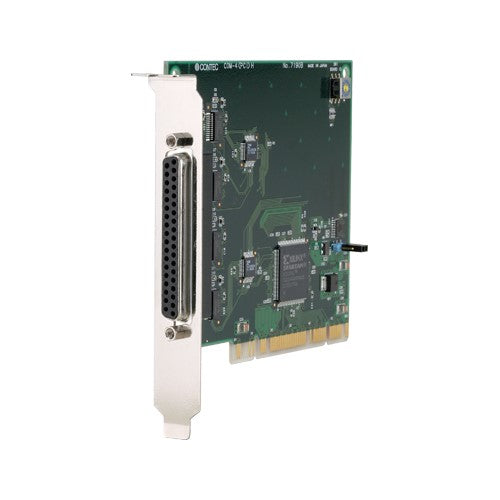

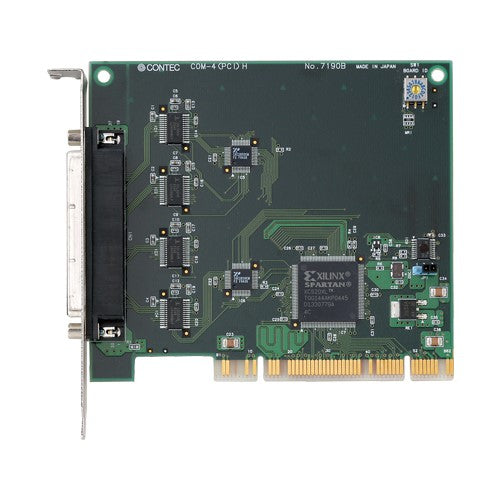

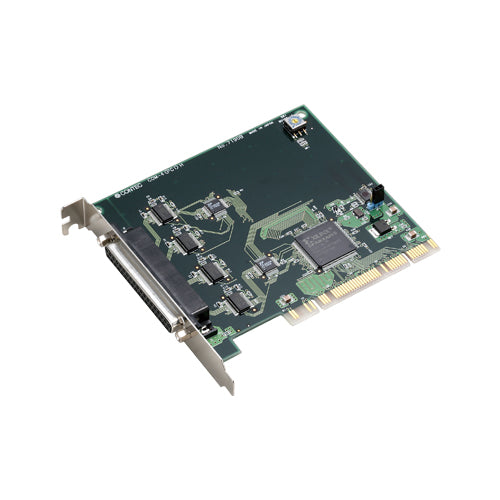

PCI 4‑channel RS‑232C serial I/O board. Supports up to 921,600 bps with 128‑byte FIFO buffers per channel. Operates as standard Windows/Linux COM ports. Up to 16 boards can be installed in a single system.

4 RS-232C Ports
921.6k Max Baud Rate (bps)
128B FIFO (Tx/Rx per ch)
16 Max Boards per System
Contec Americas · PCI Serial
4‑Channel RS‑232C Serial I/O
COM-4(PCI)H · 921.6 kbps · 128‑byte FIFO · Standard COM ports
View Collection

High‑Density RS‑232C
for PCI Systems

The COM‑4(PCI)H provides four RS‑232C serial ports on a PCI board. It supports data rates up to 921,600 bps and includes 128‑byte FIFO buffers for transmit and receive per channel. The board operates as standard Windows/Linux COM ports using the included COM‑DRV driver.

Performance & Features
  • 4 RS-232C ports
  • 921,600 bps max baud rate
  • 128‑byte FIFO (Tx/Rx per channel)
  • Asynchronous serial transfer
  • RTS/CTS/DTR/DSR software control
Compatibility & Expansion
  • Standard Windows/Linux COM ports
  • Up to 16 boards per system
  • Optional conversion cables/units
  • 37‑pin to 9‑pin/25‑pin adapters
  • VCCI-A · FCC-A · CE · UKCA

Used as standard COM ports — with COM‑DRV driver, works like built‑in COM ports using Win32 API (DCB structures) or Linux system calls. Supports .NET SerialPort class and PySerial.

Built for Versatile Connectivity

  • High speed — supports baud rates from 30 to 921,600 bps (depending on board revision).
  • FIFO buffers — 128 bytes each for transmit and receive per channel; reduces CPU load during high‑speed communication.
  • Software control — RTS, CTS, DTR, DSR lines can be controlled and monitored via software.
  • High density — 4 ports on a single board; up to 16 boards per system (64 ports).
  • Flexible power — supports both 3.3V and 5V PCI slots via jumper selection (depending on board revision).

Full Specifications

Item Specification
Model COM‑4(PCI)H
Number of channels 4
Interface type RS‑232C
Transfer method Asynchronous serial transfer
Baud rate 30 – 921,600 bps *1*3 (varies by board revision)
Data length 5, 6, 7, 8 bits
Stop bits 1, 1.5, 2 bits
Parity check Even, Odd, Non‑parity
Controller chip 162850 or equivalent (128‑byte FIFO per channel)
Connecting distance 15 m (Typ.)
Interrupt requests 1 level used
I/O address Any 32‑byte boundary
Power consumption 3.3V 210mA or 5V 210mA (jumper selectable, depending on board)
Bus interface 32‑bit, 33 MHz PCI (Universal key, depending on board)
Connector 37‑pin (on‑board) / optional conversion cables
Dimensions (L × H) 121.69 × 105.68 mm (varies by board number)
Weight 130 g
Operating temperature 0‑50°C
Operating humidity 10‑90% RH (no condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA

Connector & Cabling

The board uses a 37‑pin on‑board connector. Optional conversion cables are available to split into four 9‑pin D‑SUB (PCE37/9PS) or four 25‑pin D‑SUB (PCE37/25PS) male connectors. A DIN‑rail mountable conversion unit (CCU‑78F/25M) is also available.

  • Optional conversion cables — PCE37/9PS (37‑pin to 9‑pin D‑SUB ×4), PCE37/25PS (37‑pin to 25‑pin D‑SUB ×4).
  • Optional conversion unit — CCU‑78F/25M (DIN‑rail or wall mount, 78‑pin to 25‑pin D‑SUB ×8).
  • Signal lines — TD, RD, RTS, CTS, DTR, DSR, DCD, SG, RI.
  • Cable types — use straight cable for modem connection, crossed (null modem) for PC‑to‑PC connection.

Certifications & Compliance

  • VCCI Class A — Japanese EMC for commercial/industrial environments.
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE (EMC Directive Class A + RoHS) — European conformity.
  • UKCA — UK conformity assessed.

Optional Accessories

Part Number Description
PCE37/9PS Conversion cable, 37‑pin to 9‑pin D‑SUB ×4 (250mm)
PCE37/25PS Conversion cable, 37‑pin to 25‑pin D‑SUB ×4 (250mm)
CCU‑78F/25M Conversion unit, 78‑pin to 25‑pin D‑SUB ×8 (requires RS‑78M/37M cable)
RS‑78M/37M Optional cable for CCU‑78F/25M (2m)

Software & Packing List

Item Description
Windows driver COM‑DRV(WDM) – standard COM port emulation; supports DCB, .NET SerialPort, PySerial; sample programs in C#, VB.NET, VC++, Python
Linux driver COM‑DRV(LNX) – standard TTY driver; supports PySerial; gcc (C/C++) and Python samples
Packing List Product ×1, "Please read the following" document

Ready to add RS‑232C serial ports?

The COM‑4(PCI)H is available through Contec Americas on a quote basis. Contact our sales team for volume pricing, cable assemblies, and integration support.

Tags COM-4(PCI)H RS-232C Serial I/O PCI Serial Board 4-Channel Serial 921600 bps Industrial Serial Contec PCI Factory Automation RS-232C COM Port FIFO VCCI-A FCC-A CE UKCA
