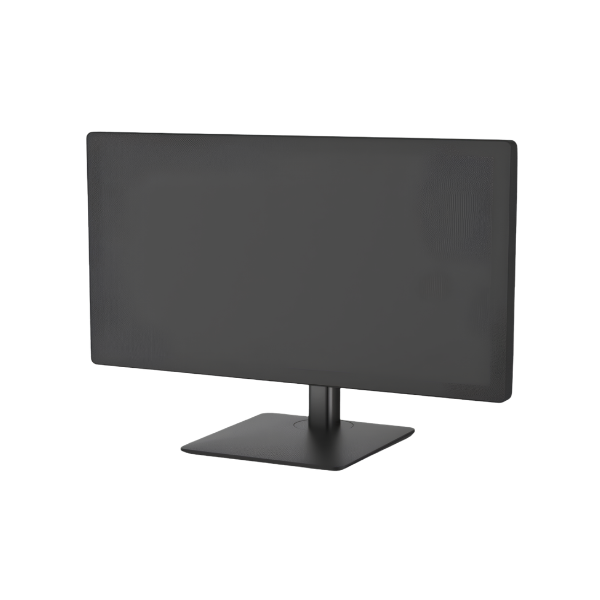

Contec 21.5" QDII Series Monitor - Model ITM2150

Contec 21.5" QDII Series Monitor - Model ITM2150

Contact Sales Department for Pricing DICOM Compliant IP65 Front Panel PCAP 10-Point Touch True-Flat Glass DP 1.2 + HDMI 1.4 178° Viewing Angle cTUVus · CB · CE · FCC DICOM compliant and IP65-rated, the Contec 21.5" Industrial Touch Display delivers accurate grayscale reproduction, wide-angle visibility, and 10-point PCAP touch...
Vendor: Contec Americas Inc.
SKU: 21.5" FHD Medical Touch Display
Availability: In Stock
Product type: Industrial Display
$0.00 USD
$0.00 USD
Subtotal: $0.00 USD
📋

Datasheet

Contec 21.5" QDII Series Monitor - Model ITM2150

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
Description

DICOM Compliant IP65 Front Panel PCAP 10-Point Touch True-Flat Glass DP 1.2 + HDMI 1.4 178° Viewing Angle cTUVus · CB · CE · FCC

DICOM compliant and IP65-rated, the Contec 21.5" Industrial Touch Display delivers accurate grayscale reproduction, wide-angle visibility, and 10-point PCAP touch for HMI, operator workstation, visualization, and panel integration applications. Black chassis with DisplayPort 1.2 and HDMI 1.4 inputs, AC-powered.

21.5" FHD 1920×1080 AHVA
IP65 Front Panel Protection
DICOM Grayscale Compliant
178° H/V Viewing Angle
Contec Americas
Industrial Touch Displays
DICOM · IP65 · PCAP · True-Flat · DP 1.2 · HDMI · VESA
View Collection

Industrial Design Features

Every physical design decision in the Contec QDII Series Monitor addresses a specific industrial requirement  from ingress protection to continuous-operation reliability.

Ingress and Contamination Protection
  • IP65 front panel fully dust-tight, water jet resistant
  • True-Flat front design no gaps or ledges for debris accumulation
  • Clear glass coating easy surface cleaning
  • IPX2 back cover basic drip protection
Operator and Environment Usability
  • 10-point PCAP touch supports gloved-hand operation
  • 178°/178° viewing angle legible from any operator position
  • 250 cd/m² typical brightness
  • -5° to +23° tilt range for ergonomic positioning

The True-Flat front design with PCAP touch eliminates bezels and seams that collect dust and debris keeping cleaning routines simple and surfaces easy to maintain in continuous-operation industrial environments.

Certifications and
DICOM Compliance

The Contec 21.5" QDII Series Monitor Industrial Touch Display is validated with cTUVus, CB, CE, and FCC Part 15 certifications meeting compliance requirements for industrial deployments in the US, Canada, and EU.

  • cTUVus (IEC 62368-1 / CAN/CSA-C22.2 62368-1) North American safety certification for audio/video and IT equipment (US and Canada), issued by TÜV Rheinland.
  • CB Scheme (IEC 62368-1) International certification that simplifies market access across 57+ IECEE member countries.
  • CE (EN55032 / EN55035 / EN62368-1) European conformity covering emissions, immunity, and safety for AV/IT equipment.
  • FCC Part 15 US emissions compliance for electronic devices in industrial environments.
  • RoHS / WEEE  Restriction of hazardous substances and waste directive compliance for EU and global markets.
  • DICOM compliant  Grayscale Standard Display Function compliance with selectable gamma presets  for applications requiring accurate grayscale reproduction.

Display and Touch
Specifications

Specification Detail
Screen Size 21.5 inches
Panel Model / Type M215HAN01.2 / AHVA
Resolution 1920 × 1080 (Full HD)
Display Area 476.06 (H) × 267.79 (V) mm
Pixel Pitch 0.247 (H) × 0.247 (V) mm
Viewing Angle 178° (H) / 178° (V)
Brightness 250 cd/m² (typical)
Contrast Ratio 1000:1 (typical)
Color Depth 8-bit
Response Time 14ms (On/Off)
Video Inputs DisplayPort 1.2 × 1, HDMI 1.4 × 1
USB Hub USB Type-A × 2
Audio 2W built-in speaker, 3.5mm earphone jack
Touch Technology PCAP (P-Cap) 10-point, USB interface
Screen Printing Black
Glass Coating Clear (True-Flat front)
IP Rating (Front) IP65
IP Rating (Back) IPX2
Color Temperature Neutral / Warm / Cool / User
OSD Languages English, French, German, Italian, Spanish, Japanese
Power Supply AC 100–240V
Power Consumption 25W
Dimensions (with stand) 521.05 × 373.24 × 228.86 mm
Dimensions (without stand) 521.05 × 312.5 × 52.7 mm
Weight 5.8 kg (with stand) / 4.2 kg (without stand)
VESA Mount 100 × 100 mm
Tilt Range -5° to +23°
Chassis Color Black
Operating Temperature 10 to 40°C
Operating Humidity 30% to 75% RH
Storage Temperature -20 to 60°C

Ready to configure your industrial display?

The Diva 21.5" QD II FHD Industrial Touch Display is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, OEM integration, and system compatibility.
