ITM2150 | 21.5" QDII Industrial Touch Monitor | Contec Americas ITM Series Contact Sales Department for Pricing ITM Series IP65 Front Panel PCAP 10-Point Touch True-Flat Glass DP 1.2 · HDMI 1.4 · USB Hub 178 deg Viewing Angle cTUVus 62368-1 · CB · CE · FCC IP65-rated front panel,...
Vendor: Contec Americas Inc.
SKU: 21.5" FHD Medical Touch Display
Availability: In Stock
Product type: Industrial Display
$0.00 USD
$0.00 USD
Subtotal: $0.00 USD
📋

Datasheet

Contec 21.5" QDII Series Monitor - Model ITM2150

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description
ITM2150 | 21.5" QDII Industrial Touch Monitor | Contec Americas ITM Series
ITM Series IP65 Front Panel PCAP 10-Point Touch True-Flat Glass DP 1.2 · HDMI 1.4 · USB Hub 178 deg Viewing Angle cTUVus 62368-1 · CB · CE · FCC

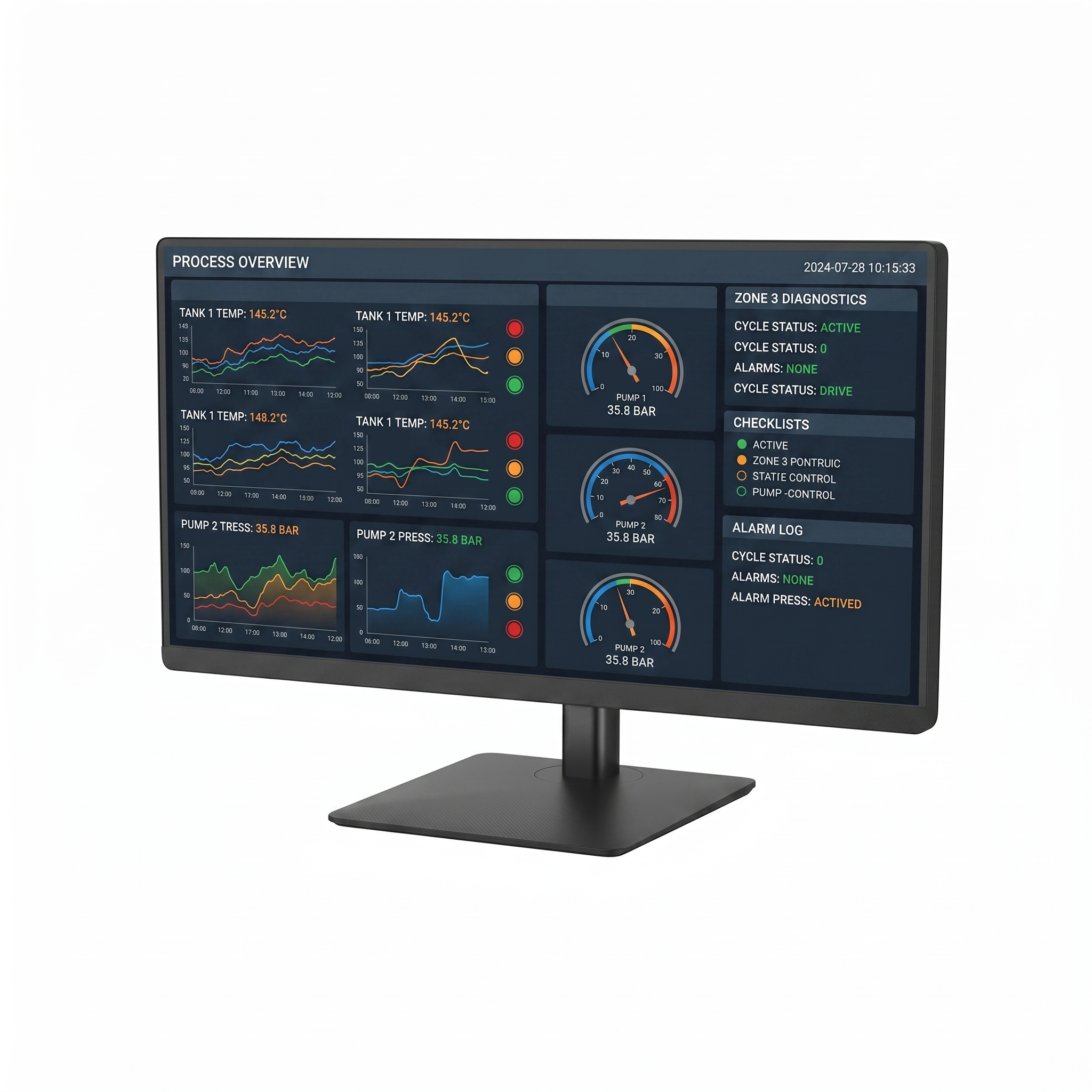

IP65-rated front panel, 178-degree AHVA viewing angles, and 10-point PCAP touch in a True-Flat black chassis. The ITM2150 is a 21.5" Full HD industrial touch monitor with DisplayPort 1.2, HDMI 1.4, and a built-in USB hub — designed for operator interfaces, supervisory workstations, and panel integration. Part of the Contec Americas ITM Series: Industrial Touch Monitors.

21.5" FHD 1920x1080 AHVA
IP65 Front Panel Protection
178° H/V Viewing Angle
250 cd/m2 Brightness (typ.)
Contec Americas · ITM Series
Industrial Touch Monitors
ITM2150 (21.5") · ITM2380 (23.8") · IP65 · PCAP · True-Flat · VESA
View Collection

Industrial Design Features

The ITM2150 addresses the specific requirements of factory floors, control rooms, and operator stations — from dust and fluid ingress protection to wide-angle visibility across shared workstations.

Ingress and Contamination Protection
  • IP65 front panel — fully dust-tight and water jet resistant
  • True-Flat front design — no gaps or ledges for debris accumulation
  • Clear glass coating — easy surface cleaning
  • IPX2 back cover — basic drip protection
Operator and Environment Usability
  • 10-point PCAP touch — supports gloved-hand operation
  • 178 deg / 178 deg AHVA viewing angle — legible from any operator position
  • 250 cd/m2 typical brightness — 1000:1 contrast ratio
  • -5 to +23 degree tilt range for ergonomic positioning

The True-Flat front design with PCAP touch eliminates bezels and seams that collect dust and debris — keeping cleaning routines simple and surfaces easy to maintain in continuous-operation industrial environments.

Certifications and
Compliance

The ITM2150 is validated with cTUVus, CB, CE, and FCC Part 15 certifications meeting compliance requirements for industrial IT equipment deployments in the US, Canada, and EU.

  • cTUVus (IEC 62368-1 / CAN/CSA-C22.2 62368-1) — North American safety certification for audio/video and IT equipment in the US and Canada, issued by TUV Rheinland.
  • CB Scheme (IEC 62368-1) — International certification simplifying market access across 57+ IECEE member countries.
  • CE (EN55032 / EN55035 / EN62368-1) — European conformity covering emissions, immunity, and safety for AV/IT equipment.
  • FCC Part 15 — US emissions compliance for electronic devices in industrial environments.
  • RoHS / WEEE — Restriction of hazardous substances and waste directive compliance for EU and global markets.

Full Specifications

Specification Detail
Contec Americas Model ITM2150
ID Type True Flat (P-Cap)
Panel Type AHVA
Screen Size 21.5 inches
Resolution 1920 x 1080 (Full HD)
Display Area 476.06 (H) x 267.79 (V) mm
Pixel Pitch 0.247 (H) x 0.247 (V) mm
Viewing Angle 178 deg (H) / 178 deg (V)
Brightness 250 cd/m2 (typical)
Contrast Ratio 1000:1 (typical)
Color Depth 8-bit
Response Time 14ms (On/Off)
DVI N/A
DisplayPort DP 1.2 x1
VGA N/A
HDMI HDMI 1.4 x1
USB Hub USB Type-A x2
Audio 2W built-in speaker, earphone jack x1
Touch Type P-Cap (PCAP), 10-point, USB interface
Screen Printing Black
Glass Coating Clear (True-Flat front)
Color Temperature Neutral / Warm / Cool / User
OSD Languages English, French, German, Italian, Spanish, Japanese
Scaling Mode Full Screen
Power Supply AC 100 to 240V
Power Consumption 25W
Dimensions (with stand) 521.05 x 373.24 x 228.86 mm
Dimensions (without stand) 521.05 x 312.5 x 52.7 mm
Weight (with stand) 5.8 kg
Weight (without stand) 4.2 kg
VESA Mount 100 x 100 mm
Tilt Range -5 to +23 degrees
Chassis Color Black
IP Rating (Front) IP65
IP Rating (Back) IPX2
Operating Temperature 10 to 40 degrees C
Operating Humidity 30% to 75% RH
Storage Temperature -20 to 60 degrees C
Storage Humidity 10% to 90% RH
Certifications cTUVus 62368-1, CAN/CSA-C22.2 62368-1, CB (IEC 62368-1), CE (EN55032/EN55035/EN62368-1), FCC Part 15, RoHS, WEEE
Datasheet Version v20230109

Ready to configure your industrial display?

The ITM2150 is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, OEM integration, and system compatibility for your application.
