CPS-MG341-ADSC1-931 CONPROSYS Series M2M Gateway for PLC Multi-Function Module Built-in OPC UA Server Function
Contact Sales Department for Pricing New CPS-MG341-ADSC1-931 M2M Gateway for PLC OPC UA Server Multi-Vendor PLC Support -20 to +60°C Isolated I/O VCCI-A · FCC-A · CE · UKCA M2M Gateway for PLC with OPC UA server, supporting multi‑vendor PLCs and Modbus devices simultaneously. Isolated RS‑422A/485, 4 isolated digital inputs...
**Secure Payment Processing**
We take your security seriously. All transactions are processed through encrypted connections using 256-bit SSL technology. Your credit card information is never stored on our servers and is handled by PCI-compliant payment processors. We accept Visa, Mastercard, American Express, Discover, PayPal, Apple Pay, and Google Pay.
Prices are subject to change based on applicable tariffs.
Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
**Important Pricing Information**
All prices displayed are subject to modification based on current tariff rates, import duties, and trade regulations. Price adjustments may occur due to changes in government-imposed tariffs or international trade policies. Final pricing will be confirmed during the checkout process.
Lead times may vary for products shipped from Japan:
Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Important Shipping Information
All estimated delivery timelines are subject to modification based on international logistics, customs clearance, and import regulations. Shipping delays may occur due to transit times for products sourced directly from Japan, which typically take between 4 to 5 weeks to arrive. Final delivery timelines will be confirmed during the checkout process.
NewCPS-MG341-ADSC1-931M2M Gateway for PLCOPC UA ServerMulti-Vendor PLC Support-20 to +60°CIsolated I/OVCCI-A · FCC-A · CE · UKCA
M2M Gateway for PLC with OPC UA server, supporting multi‑vendor PLCs and Modbus devices simultaneously. Isolated RS‑422A/485, 4 isolated digital inputs (counter-capable), 2 relay outputs, 2 isolated analog inputs (0‑20mA), RS‑232C, and LAN hub. ARM Cortex‑A8, 512MB DDR3, -20 to +60°C.
10Max PLC Links
100Group Registers
4chDigital Inputs
2chAnalog Inputs (0-20mA)
Contec Americas · CONPROSYS
M2M Gateway for PLC
CPS-MG341-ADSC1-931 · OPC UA · Multi‑Vendor PLC · Modbus

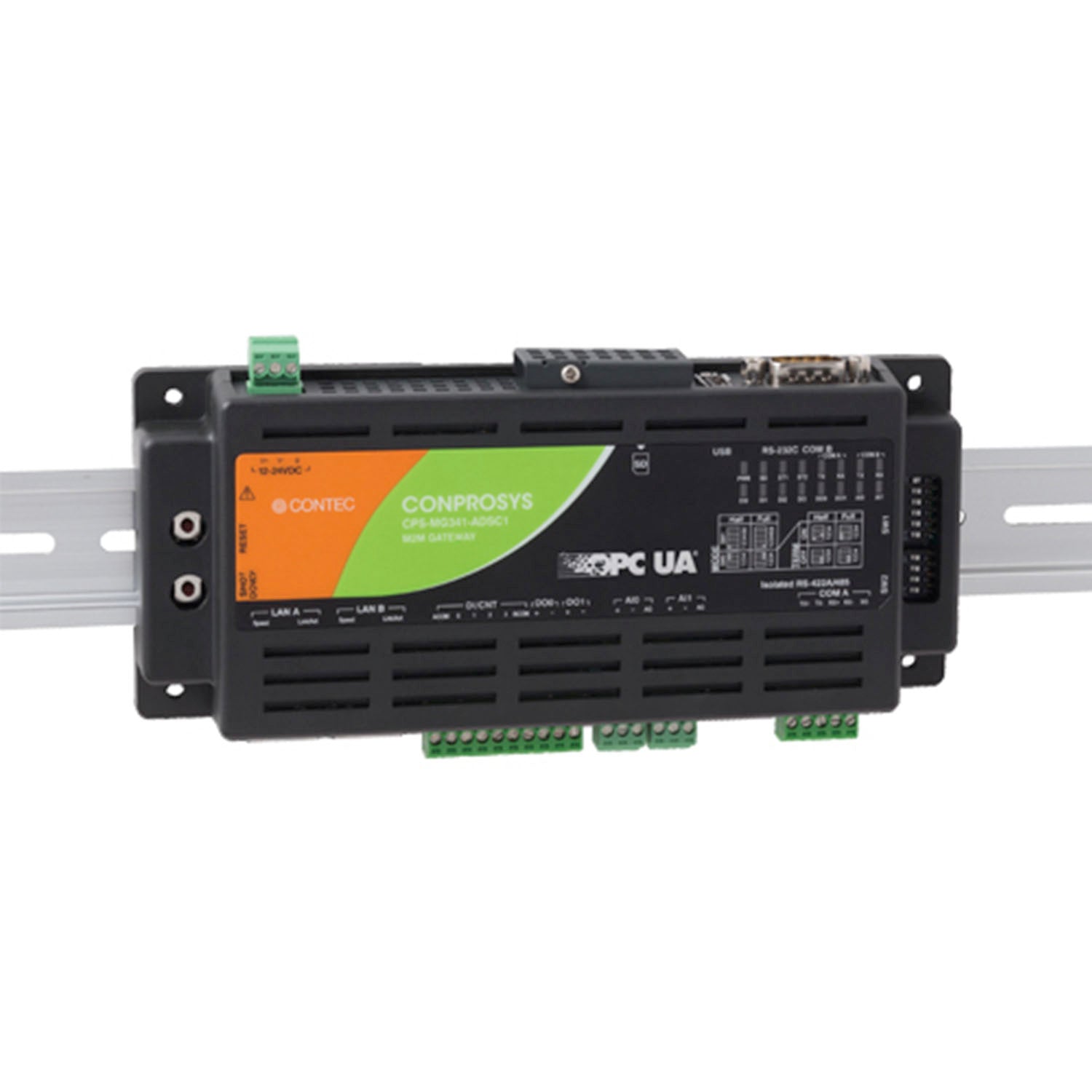

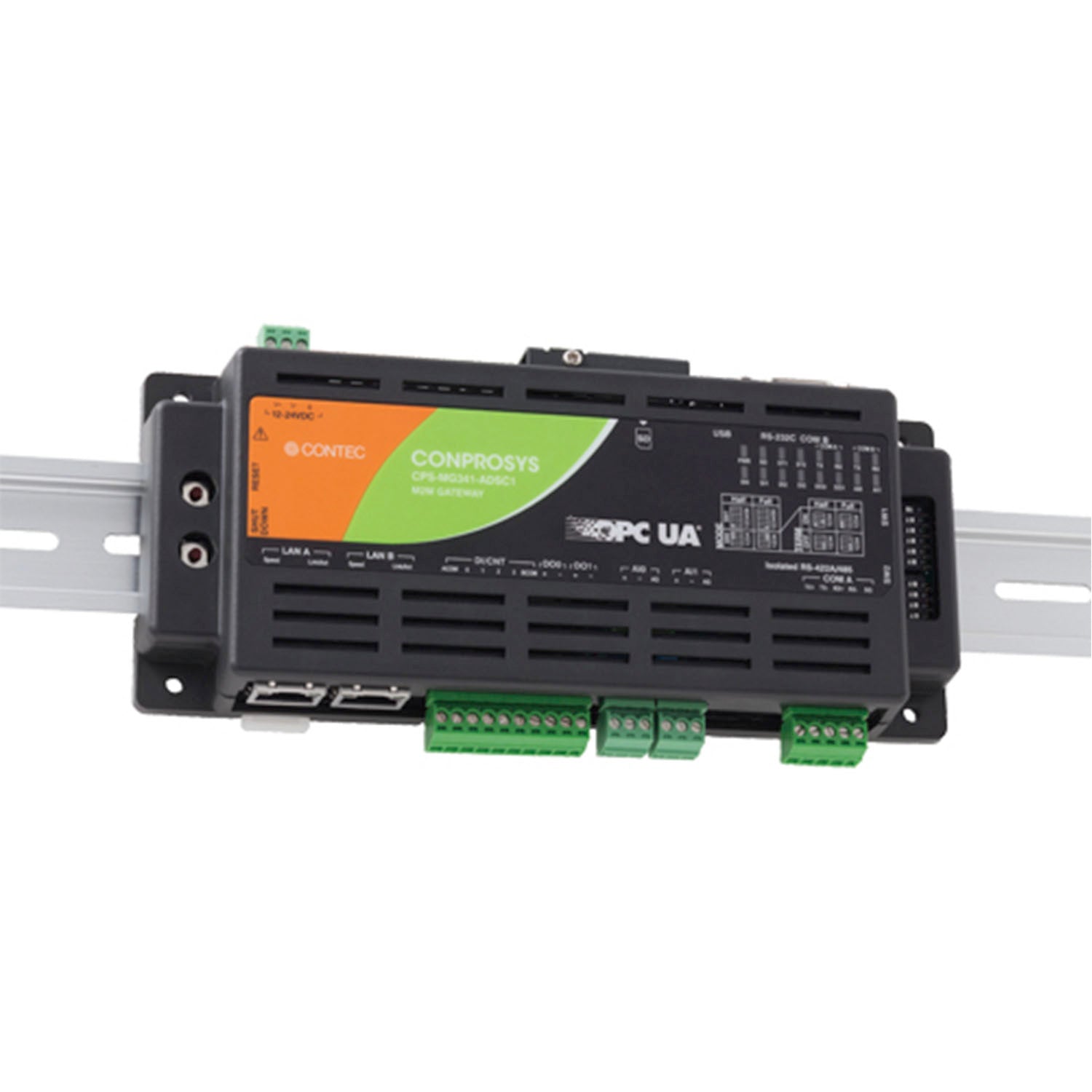

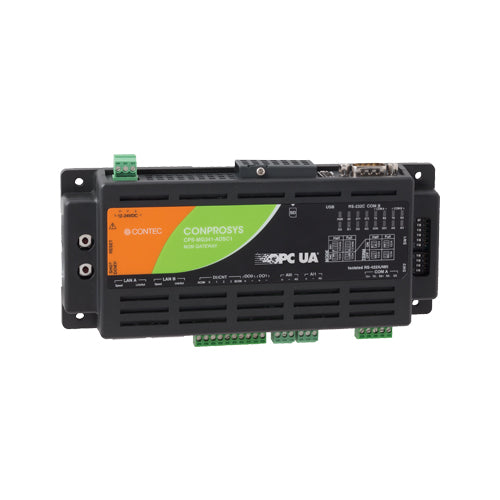

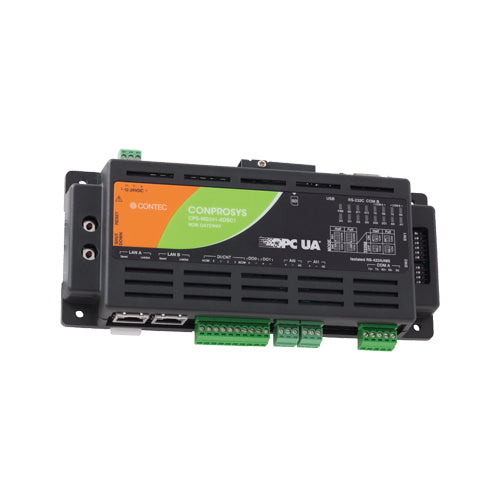

The CPS‑MG341‑ADSC1‑931 is a data collector [M2M Gateway for PLC] that supports respective PLCs from various makers as well as Modbus devices. It features isolated RS‑422A/485, isolated digital input/output, isolated counter input, inter‑channel isolated analog input (0‑20mA), RS‑232C, and dual LAN ports with hub function. Built on an ARM Cortex‑A8 processor (600MHz) with 512MB DDR3 memory, it includes a built‑in OPC UA server.
PLC Gateway Features
Supports multi‑vendor PLCs
Modbus device support
Up to 10 Ethernet/calculating links
100 group registers for data collection
1000 Modbus data mapping
I/O & Connectivity
4 isolated digital inputs (counter-capable)
2 semiconductor relay outputs
2 isolated analog inputs (0‑20mA)
RS‑232C, RS‑422A/485
Dual LAN ports (hub function)
Multi‑vendor PLC support — connect up to 10 Ethernet/calculating links simultaneously with differing makers' PLCs. Collect data from 30 PLCs and 100 group registers.
02
Built for Industrial Reliability
Bus isolation & surge protection — RS‑422A/485 and digital/counter inputs are bus‑isolated with surge protection elements.
Inter‑channel isolation — analog inputs are isolated between channels (200V) and from the CPU (500V).
Wide power range — accepts 12‑24VDC (10.8‑30V range) with FG terminal.
Wide temperature — operates from -20°C to +60°C (up to +55°C with USB bus power).
Long‑life battery — RTC battery life of 10+ years at 25°C.
Fanless design — no moving parts for increased reliability.
03
Full Specifications
Item
Specification
Model
CPS‑MG341‑ADSC1‑931
CPU
ARM Cortex‑A8 600MHz
Memory
512MB DDR3 SDRAM (on‑board)
ROM
64MB NOR Flash (OS)
LAN
10BASE‑T/100BASE‑TX, 2 independent ports, RJ45
RS‑422A/485
1 channel, bus isolation 500VDC, 300‑115.2kbps, surge protected
2 channels (shared with digital inputs), up‑count, 1kHz max
USB
1 port, USB2.0, TYPE‑A
SD card
SD standard compliant slot
Power supply
12‑24VDC (10.8‑30V), 12V 0.7A / 24V 0.4A max
Dimensions (W × D × H)
188.0 × 78.0 × 30.5 mm
Weight
250 g
Operating temperature
-20 to +60°C (+55°C with USB bus power)
Operating humidity
10‑90% RH (no condensation)
Certifications
VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA, KC, UL/c‑UL
04
Connectors & Mounting
The gateway features 2‑piece terminal connectors for power, analog input, digital I/O, and RS‑422A/485. RS‑232C uses a 9‑pin D‑SUB (male). LAN ports are independent RJ45 connectors. Quick DIN‑rail mounting or wall mounting with screws.
Power connector — 3‑pin terminal (V+, V‑, FG), AWG24‑16, 12‑24VDC.
Analog input — 3‑pin terminal (AI+, AI‑, SG), AWG28‑16, 0‑20mA.
DIN rail power supply, 15W (100‑240VAC input, 12VDC 1.3A output)
CPS‑CAB‑S01‑1
FANUC CNC connection cable, 1m
CPS‑CAB‑S01‑3
FANUC CNC connection cable, 3m
CPS‑CAB‑S01‑5
FANUC CNC connection cable, 5m
CPS‑CAB‑S02‑1
MITSUBISHI CNC connection cable, 1m
SD‑4GB‑A
SD card, 4GB
CPS‑MAG01‑4
Magnets for installation (4‑piece set)
07
Packing List
Item
Description
Product
CPS‑MG341‑ADSC1‑931 ×1
Product Guide
×1
Warranty Certificate
×1
Serial Number Label
×1
3‑pin Connector (Power/Analog)
×3
5‑pin Connector (RS‑422A/485)
×1
10‑pin Connector (Digital)
×1
Ready to connect your PLCs to the cloud?
The CPS‑MG341‑ADSC1‑931 is available through Contec Americas on a quote basis. Contact our sales team to discuss your PLC integration, connectivity, and data collection requirements.
