Description

New CPSL-08P1EN 8-Channel IO-Link Master Multi-Protocol Support IP67 -20 to +60°C M12 Connectors VCCI-A · FCC-A · CE · UKCA

8‑channel IO‑Link master module (Class A) with multi‑protocol support for PROFINET, EtherNet/IP, Modbus TCP, CC‑Link IE Field Basic, EtherCAT, and OPC UA. IP67 dust/water protection, -20 to +60°C operation, M12 connectors, web‑based configuration.

8 IO-Link Ports
IP67 Protection Rating
200mA Max Load / Port
6 Protocols Supported
Contec Americas · CONPROSYS
8‑Channel IO‑Link Master
CPSL-08P1EN · Multi‑Protocol · IP67 · M12 · Web Configuration
View Collection

IO‑Link Master
with Multi‑Protocol Support

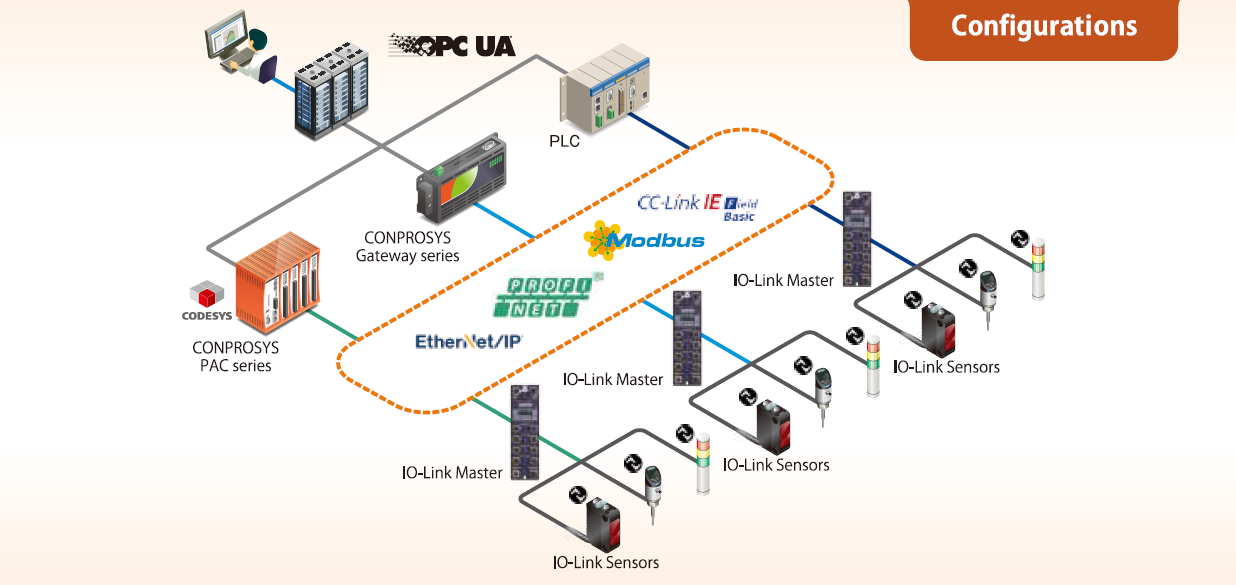

The CPSL‑08P1EN is an 8‑channel IO‑Link Master module (Class A) for the CONPROSYS series. It supports PROFINET, EtherNet/IP, Modbus TCP, CC‑Link IE Field Basic, EtherCAT, and OPC UA — selectable via on‑board switches. Each of the 8 ports can be independently configured for IO‑Link or SIO mode.

IO‑Link Features
  • 8 independent IO‑Link ports (Class A)
  • IO‑Link Ver. 1.0 / 1.1
  • COM1 (4.8k), COM2 (38.4k), COM3 (230.4k)
  • 200mA max load per port
  • Pin 2 digital input during IO‑Link
Network & Environment
  • PROFINET, EtherNet/IP, Modbus TCP
  • CC‑Link IE Field Basic, EtherCAT, OPC UA
  • IP67 dust/water protection
  • -20 to +60°C operating temp
  • Web browser configuration

Protocol selection — on‑board switch allows selection of PROFINET, EtherNet/IP, Modbus TCP, CC‑Link IE Field Basic, EtherCAT, or OPC UA. No additional software needed.

Built for Harsh Environments

  • IP67 protection — dust‑tight and water‑jet resistant when using CONTEC specified waterproof caps on all connectors.
  • Wide temperature range — -20 to +60°C for demanding industrial applications.

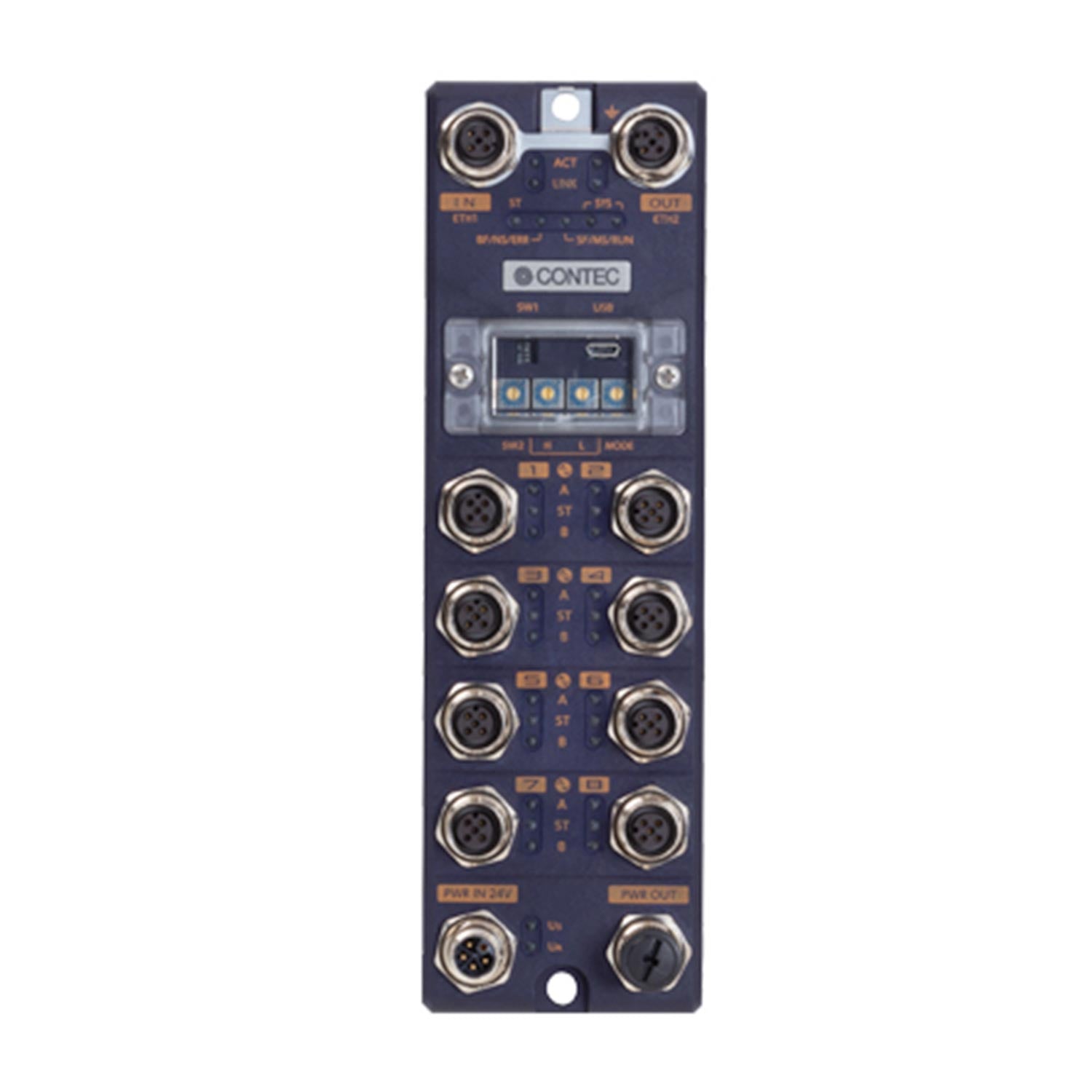

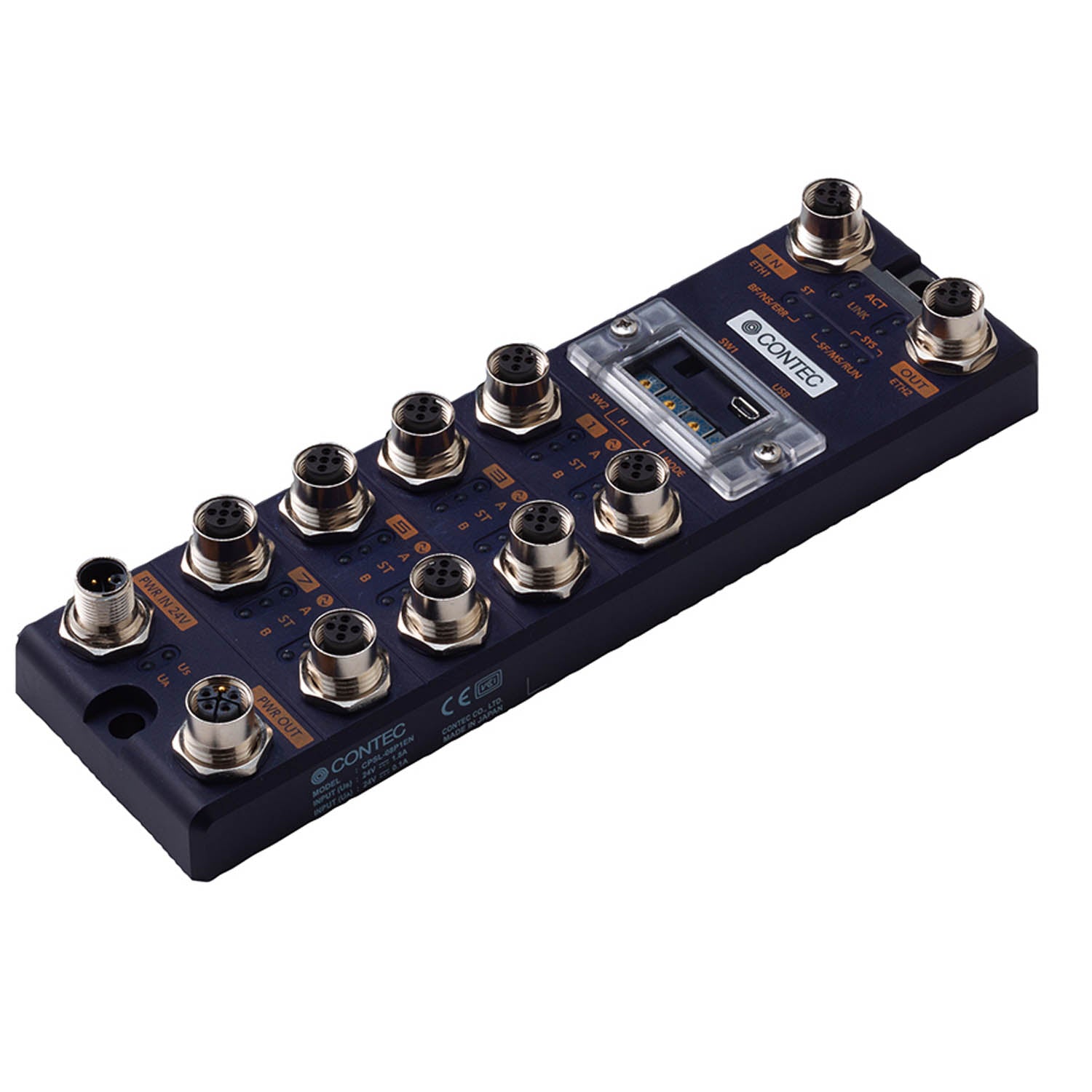

  • M12 connectors — IO‑Link (5‑pin A‑Coded), LAN (4‑pin D‑Coded), and power (5‑pin L‑Coded) with FG terminal.
  • Power daisy‑chain — power input is branched to power output connector for daisy‑chain connection to other devices.
  • Wall mount — can be installed on the wall with screws.

Full Specifications

Item Specification
Model CPSL‑08P1EN
LAN standard 100BASE‑TX
Data rate 10/100 Mbps
LAN ports 2 (M12 D‑coded, female)
IO‑Link ports 8 (M12 5‑pin A‑Coded, female), Class A
IO‑Link protocol Ver. 1.0 / 1.1
Communication speed COM1: 4.8kbps, COM2: 38.4kbps, COM3: 230.4kbps
Rated voltage 24 VDC (typ.)
Max load current 200 mA/port (total ≤ 1.6A for all ports)
Isolation Non‑isolated
SIO mode (input) Current source output (PNP) support, 5mA typ.
SIO mode (output) Push‑pull output, 200mA/port max
Power input Us: 24VDC (1.8A), Ua: 24VDC (0.1A) — Ua not used
Power connector M12 5‑pin (4+FE) L‑Coded, male (input) / female (output)
Protection rating IP67 (with CONTEC waterproof caps)
Dimensions (W × D × H) 69.0 × 225.0 × 18.0 mm
Weight 600 g
Operating temperature -20 to +60°C
Operating humidity 10‑90% RH (no condensation)
Certifications VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA

Connectors & Cabling

The module features M12 connectors for LAN, IO‑Link, and power. LAN uses D‑coded 4‑pin connectors (Category 5e or better, shielded cable, max 100m). IO‑Link uses 5‑pin A‑Coded connectors (cable up to 20m). Power uses 5‑pin L‑Coded connectors for high‑current supply.

  • LAN ports — 2 × M12 D‑coded, 4‑pin female; 10/100 Mbps, shielded cable, max 100m.
  • IO‑Link ports — 8 × M12 A‑coded, 5‑pin female; COM1/2/3 speeds, 200mA/port, max 20m cable.
  • Power input — M12 L‑coded, 5‑pin (4+FE) male; Us 24VDC, Ua 24VDC (unused).
  • Power output — M12 L‑coded, 5‑pin (4+FE) female; daisy‑chain connection.
  • FG terminal — functional grounding terminal for power connector.

Certifications & Compliance

  • VCCI Class A — Japanese EMC for commercial/industrial environments.
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE (EMC Directive Class A + RoHS) — European conformity.
  • UKCA — UK conformity assessed.

Optional Accessories

Part Number Description
CPS‑PWD‑90AW24‑01 DIN rail power supply, 90W (100‑240VAC input, 24VDC 3.8A output)
CPS‑PWD‑30AW24‑01 DIN rail power supply, 30W (100‑240VAC input, 24VDC 1.3A output)
PCL5P‑3 M12 L‑Coded cable, 5‑pin (4+FE) female, one end, 3m

Packing List

Item Description
Product CPSL‑08P1EN ×1
Product Guide ×1
Warranty Certificate ×1
Serial Number Label ×1
Waterproof Cap ×1

Ready to deploy IO‑Link in your system?

The CPSL‑08P1EN is available through Contec Americas on a quote basis. Contact our sales team to discuss protocol selection, cabling, and integration with your industrial network.
