CPSN-AI-2408LI
CPSN-AI-2408LI

CPSN-AI-2408LI

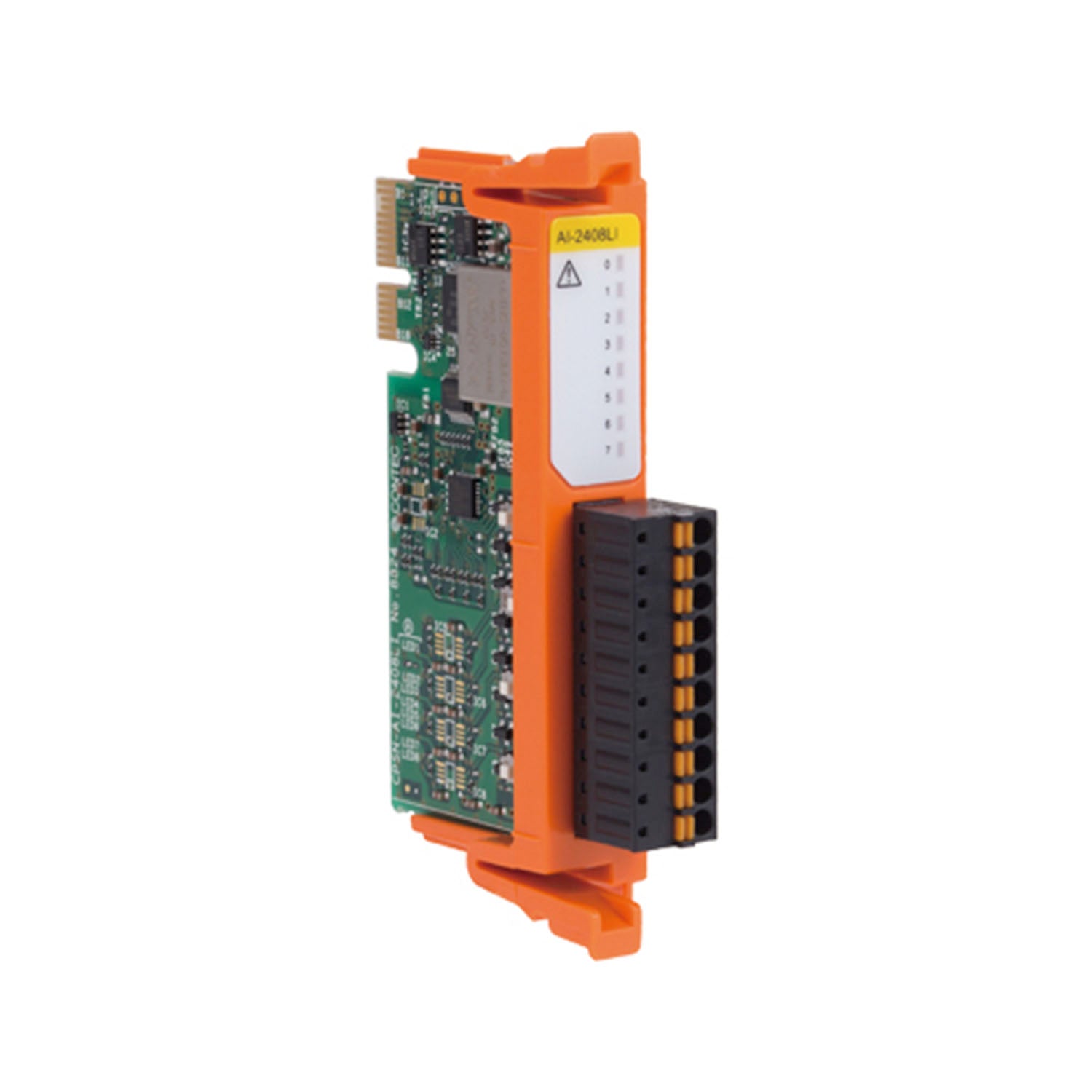

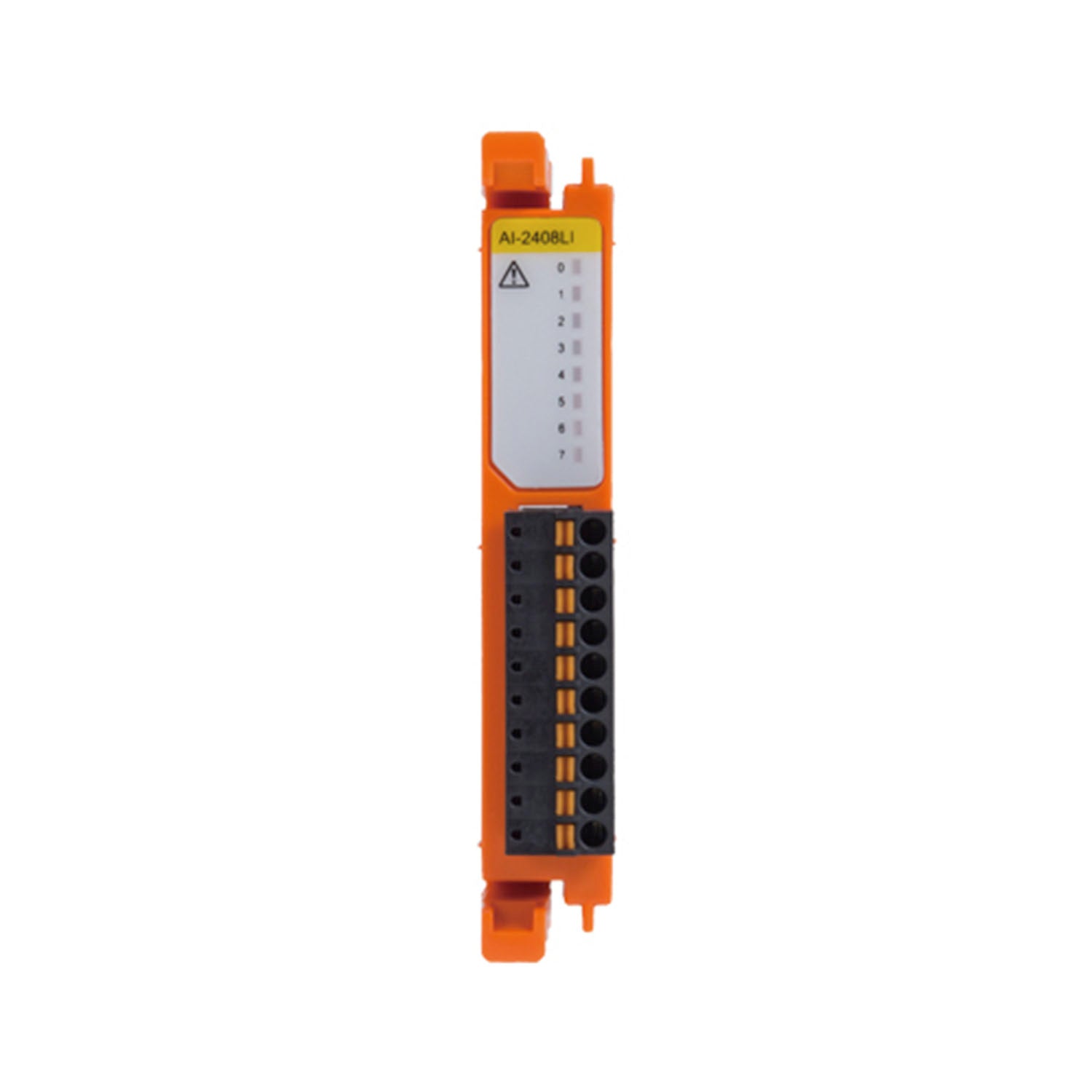

Contact Sales Department for Pricing New CONPROSYS nano Analog Input Module 12-Bit Resolution 8-Ch / 4-Ch Input Bus Isolated ±10V · ±5V · ±2.5V · 0-10V VCCI-A · FCC-A · CE · UKCA 12-bit analog input module for the CONPROSYS nano series. Provides 8 channels of single-ended or 4 channels...
Vendor: Contec Americas Inc.
SKU: CPSN-AI-2408LI
Availability: 10 In stock
Product type: Data Acquisition
$170.86 USD
$170.86 USD
Subtotal: $170.86 USD
📋

Datasheet

CPSN-AI-2408LI

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description

New CONPROSYS nano Analog Input Module 12-Bit Resolution 8-Ch / 4-Ch Input Bus Isolated ±10V · ±5V · ±2.5V · 0-10V VCCI-A · FCC-A · CE · UKCA

12-bit analog input module for the CONPROSYS nano series. Provides 8 channels of single-ended or 4 channels of differential voltage input, with switchable current input. Features bus isolation, ±10V/±5V/±2.5V/0-10V ranges, 200µs channel switching, and -20 to +60°C operation. Ideal for industrial measurement and control.

12 Bit Resolution
8 Ch (Single-Ended) / 4 (Differential)
±10V Max Input Range
50g Module Weight
Contec Americas · CONPROSYS nano
Analog Input Module
CPSN-AI-1208LI · 12-Bit · 8-Ch · Bus Isolated
View Collection

Versatile Analog
Input Expansion

The CPSN-AI-1208LI is an expansion I/O module that adds high-resolution analog input to the CONPROSYS nano series CPU unit. It supports 8 channels of single-ended voltage input or 4 channels of differential voltage/current input, switchable via software and hardware. Bus isolation ensures accurate measurement even with potential differences between the signal source and the module.

Standard Analog Module
  • Lower resolution (8-10 bit)
  • No bus isolation
  • Limited input ranges
  • Single-ended only
CPSN-AI-1208LI Advantages
  • 12-bit high resolution
  • Bus isolated for accurate measurement
  • Multiple voltage and current ranges
  • Single-ended or differential input

Flexible input configuration — switch between single-ended (8-ch) and differential (4-ch) voltage input via software. Current input is supported in differential mode with ±20mA range via hardware switch setting.

Built for Industrial
Measurement

The CPSN-AI-1208LI is engineered for demanding industrial measurement applications. Bus isolation provides accurate analog input even in electrically noisy environments. With no electrolytic capacitors, this module offers extended product lifetime. The wide operating temperature range supports deployment in various industrial settings.

  • Bus isolation — 500VDC isolation between the analog input and the system bus for reliable measurement.
  • Multiple input ranges — ±10V, ±5V, ±2.5V, 0-10V voltage ranges; ±20mA current range (switchable).
  • Input type flexibility — single-ended (8-ch) or differential (4-ch) voltage input; current input in differential mode.
  • Wide operating temperature — -20 to +60°C for versatile installation in various environments.
  • No electrolytic capacitors — eliminates limited-life components for extended product lifetime.
  • LED status indicators — AI0-AI7 green LEDs indicate analog input status; flashing indicates out-of-range.

Full Specifications

Specification Detail
Model CPSN-AI-1208LI
Type Analog Input Module
Input Type Single-Ended or Differential (software selectable)
Input Channels 8-ch (Single-Ended) / 4-ch (Differential)
Resolution 12-bit
Voltage Ranges ±10V, ±5V, ±2.5V, 0-10V (software selectable)
Current Range ±20mA (differential, hardware switch setting)
Max Input Rating Voltage: ±15V / Current: ±24mA
Input Impedance Voltage: 1MΩ or more (Power ON), 10kΩ (Power OFF) / Current: 249Ω
Non-Linearity Error Voltage: ±10LSB / Current: ±20LSB
Channel Switching Rate 10µs/ch
Isolation Bus Isolation (500VDC)
Connector 2 pieces, 3.81mm pitch 10-pin terminal
Applicable Wire AWG28-16
Power Consumption 5V 0.21A (Max), 3.3V 0.01A (Max)
Dimensions (W×D×H) 15.6 × 52.6 × 84 mm (excluding projections)
Weight 50g

Installation &
Compatibility

The CPSN-AI-1208LI is designed for easy integration into CONPROSYS nano systems. It connects directly to the CPU unit via the interface connector. The module uses a 10-pin European-style terminal block for analog input connections.

Compatible Systems
  • CPSN-MCB271-S1-041 Remote I/O CPU unit
  • CPSN-MCB271-1-041 Remote I/O CPU unit (LAN 2-channel)
  • CPSN-PCB271-S1-041 CODESYS Modbus Master CPU unit
  • CC-LSB271-CPSN4 USB I/O Unit - Module Type
Input Connections
  • 10-pin terminal block (3.81mm pitch)
  • Single-ended or differential wiring
  • Connector: DEGSON 15EDGKC-3.81-10P-13 or equivalent
  • Recommended cable length: within 1.5 meters

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (industrial environments).
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking for UK market compliance.
  • ISED — Innovation, Science and Economic Development Canada certification.
  • KC — Korea Certification for electrical equipment.

Optional Accessories

Part Number Description Use
CPSN-MCB271-S1-041 Remote I/O CPU unit System controller for CONPROSYS nano
CPSN-MCB271-1-041 Remote I/O CPU unit LAN 2-channel model System controller with dual LAN
CPSN-PCB271-S1-041 CODESYS Modbus Master CPU unit CODESYS-compatible system controller
CC-LSB271-CPSN4 USB I/O Unit - Module Type (4 slot) I/O expansion chassis
CPS-PWD-30AW24-01 Fitting power supply 30W (100-240VAC, 24VDC 1.3A) System power supply
CPS-PWD-90AW24-01 Fitting power supply 90W (100-240VAC, 24VDC 3.8A) System power supply

Ready to add high-resolution analog input to your CONPROSYS nano system?

The CPSN-AI-1208LI is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity and integration with your industrial measurement application.

Tags CPSN-AI-1208LI CONPROSYS nano Analog Input Module 12-Bit ADC Industrial I/O PLC Expansion Remote I/O Bus Isolated Voltage Input Contec Americas Factory Automation Modular I/O Differential Input DIN-Rail Mount
