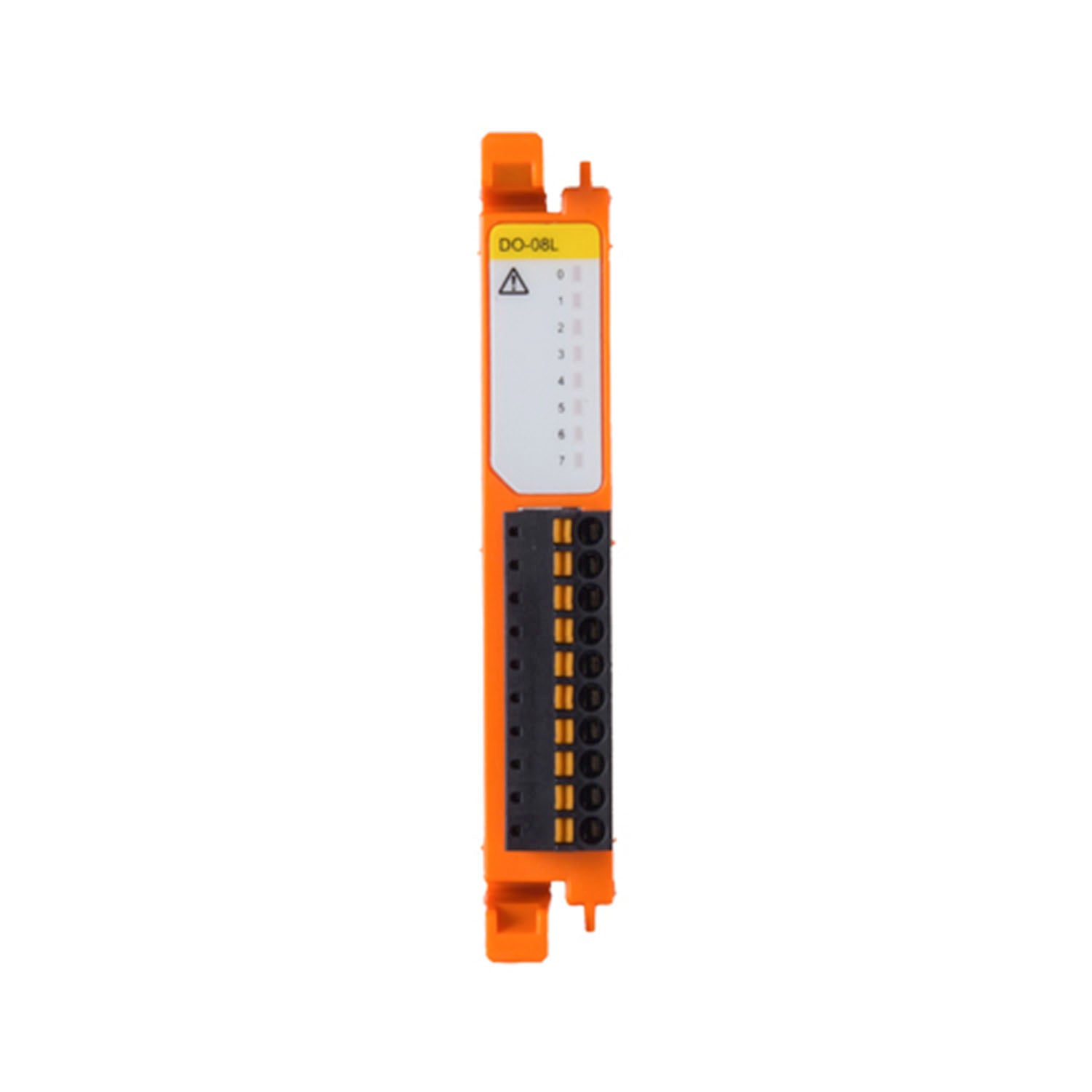

Contact Sales Department for Pricing New CONPROSYS nano Digital Input Module 8-Ch Opto-Isolated 200µs Response Current Sink/Source Interrupt Support VCCI-A · FCC-A · CE · UKCA 8-channel opto-coupler isolated digital input module for the CONPROSYS nano series. Features 200µs response time, interrupt support on all inputs, input pulse filter, and...
Vendor: Contec Americas Inc.
SKU: CPSN-DO-08L
Availability: 10 In stock
Product type: Digital Input/Output
$25.42 USD
$41.42 USD
$25.42 USD
Subtotal: $25.42 USD
📋

Datasheet

CPSN-DI-08L

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description

New CONPROSYS nano Digital Input Module 8-Ch Opto-Isolated 200µs Response Current Sink/Source Interrupt Support VCCI-A · FCC-A · CE · UKCA

8-channel opto-coupler isolated digital input module for the CONPROSYS nano series. Features 200µs response time, interrupt support on all inputs, input pulse filter, and support for current sink or source output devices. Operates from -20 to +60°C with tool-less installation. Part of the Contec Americas CONPROSYS nano series.

8 Opto-Isolated Inputs
200µs Response Time
12-24 VDC External Power
50g Module Weight
Contec Americas · CONPROSYS nano
Digital Input Module
CPSN-DI-08L · 8-Ch · 200µs · Opto-Isolated · Sink/Source
View Collection

High-Speed Digital
Input Expansion

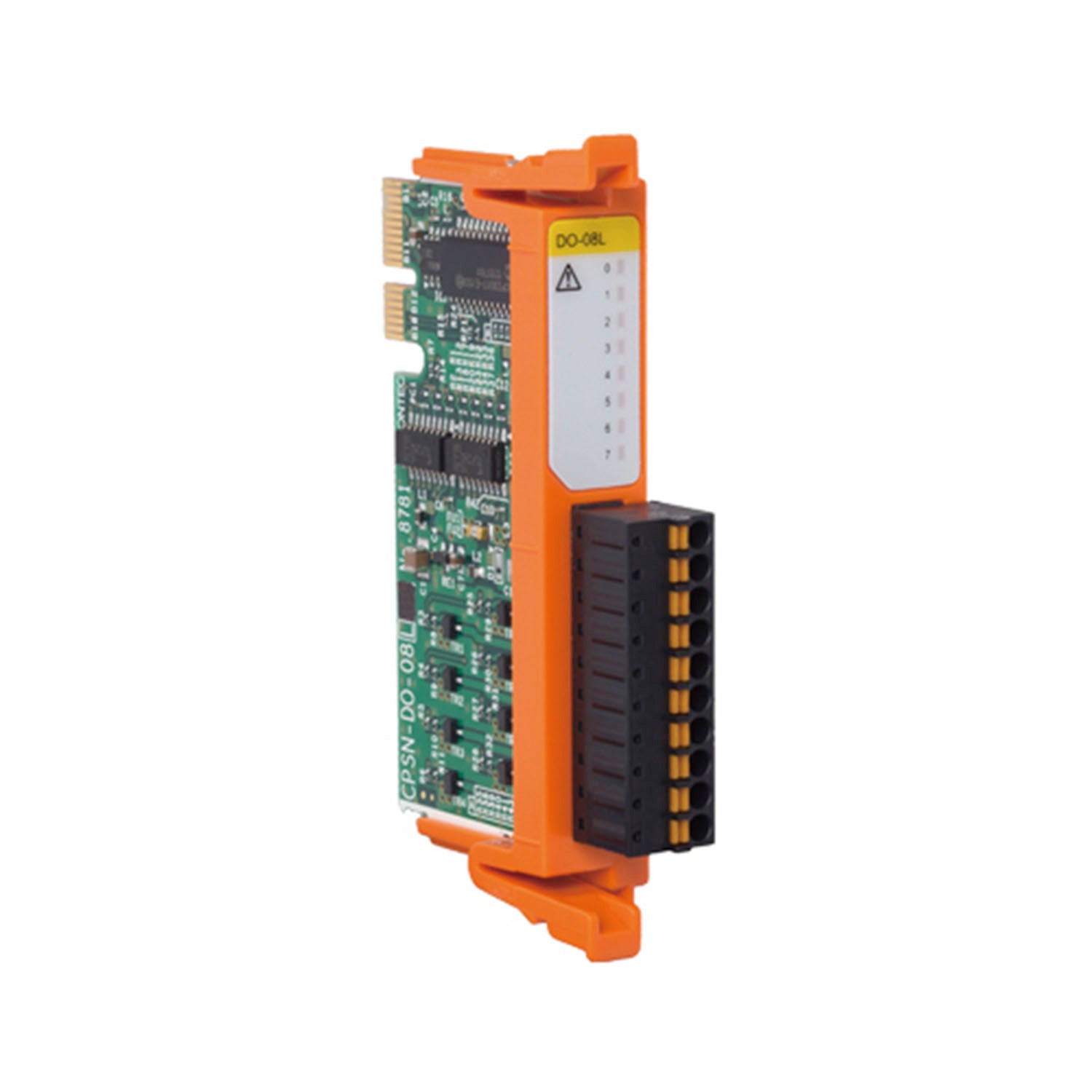

The CPSN-DI-08L is an expansion I/O module that adds 8 channels of opto-coupler isolated digital input to the CONPROSYS nano series CPU unit or USB I/O Unit - Module Type. With a response time of 200µs or less, it provides reliable high-speed signal acquisition. The module supports both current sink and current source output devices, offering maximum flexibility for industrial control applications.

Standard I/O Module
  • Slower response times
  • No interrupt support
  • Limited temperature range
  • Bulky terminal design
CPSN-DI-08L Advantages
  • 200µs high-speed response
  • Interrupt on all 8 channels
  • -20 to +60°C operation
  • Tool-less installation

All input signals are usable as interrupt events — each channel can be configured to generate interrupts on rising or falling edges, with bit-level enable/disable and edge selection available via software.

Built for Industrial
Environments

The CPSN-DI-08L is engineered for demanding industrial applications. Its opto-coupler isolation provides reliable signal acquisition in electrically noisy environments. The input pulse filter prevents false recognition due to noise and chattering. With no electrolytic capacitors, this module offers extended product lifetime.

  • Opto-coupler isolation — 1000Vrms isolation voltage for reliable signal acquisition in industrial environments.
  • Input pulse filter — prevents false recognition of input signals due to noise and chattering; configurable via software.
  • Wide operating temperature — -20 to +60°C for versatile installation in various environments.
  • No electrolytic capacitors — eliminates limited-life components for extended product lifetime.
  • Tool-less installation — easy installation and removal from CPU unit or USB I/O Unit without tools.
  • LED status indicators — DI0-DI7 green LEDs for visual confirmation of input status.

Full Specifications

Specification Detail
Model CPSN-DI-08L
Type Digital Input Module
Input Type Opto-coupler isolated input (supports current sink [negative logic] and current source [positive logic] output)
Number of Inputs 8 (shared common)
Isolation Opto-coupler isolation
Voltage Resistance AC1000Vrms
Input Resistance 4.7kΩ
Input ON Current 2.0mA or more
Input OFF Current 0.16mA or less
Response Time Within 200µs
Interrupt 8 interrupt signals configured as single output; rising/falling edge selectable via software
External Circuit Power Supply 12–24 VDC (±10%)
Internal Circuit Power Consumption 3.3V 0.05A (Max), 5V 0.11A (Max)
Connector 2 pieces, 3.81mm pitch 10-pin terminal
Applicable Wire AWG28-16
Dimensions (W×D×H) 15.6 × 52.6 × 84 mm (excluding projections)
Weight 50g
Signal Extension Distance Approx. 50m (depending on wiring environment)

Installation &
Compatibility

The CPSN-DI-08L is designed for easy integration into CONPROSYS nano systems. It connects directly to the CPU unit or USB I/O Unit - Module Type via the interface connector. The module uses a 10-pin European-style terminal block for input connections.

Compatible Systems
  • CPSN-MCB271-S1-041 Remote I/O CPU unit
  • CPSN-MCB271-1-041 Remote I/O CPU unit (LAN 2-channel)
  • CPSN-PCB271-S1-041 CODESYS Modbus Master CPU unit
  • CC-LSB271-CPSN4 USB I/O Unit - Module Type
Input Connections
  • 10-pin terminal block (3.81mm pitch)
  • Supports current sink and source output devices
  • Connector: MC 1.5/10-G-3.81 P26 THR (Phoenix Contact) or equivalent
  • Compatible connector: FK-MCP 1.5/10-ST-3.81 (Phoenix Contact) or equivalent

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (industrial environments).
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking for UK market compliance.
  • ISED — Innovation, Science and Economic Development Canada certification.
  • KC — Korea Certification for wireless and electrical equipment.

Optional Accessories

Part Number Description Use
CPSN-MCB271-S1-041 Remote I/O CPU unit System controller for CONPROSYS nano
CPSN-MCB271-1-041 Remote I/O CPU unit LAN 2-channel model System controller with dual LAN
CPSN-PCB271-S1-041 CODESYS Modbus Master CPU unit CODESYS-compatible system controller
CC-LSB271-CPSN4 USB I/O Unit - Module Type (4 slot) I/O expansion chassis
CPS-PWD-30AW24-01 Fitting power supply 30W (100-240VAC, 24VDC 1.3A) System power supply
CPS-PWD-90AW24-01 Fitting power supply 90W (100-240VAC, 24VDC 3.8A) System power supply

Ready to expand your CONPROSYS nano system?

The CPSN-DI-08L is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity and integration with your industrial control application.
