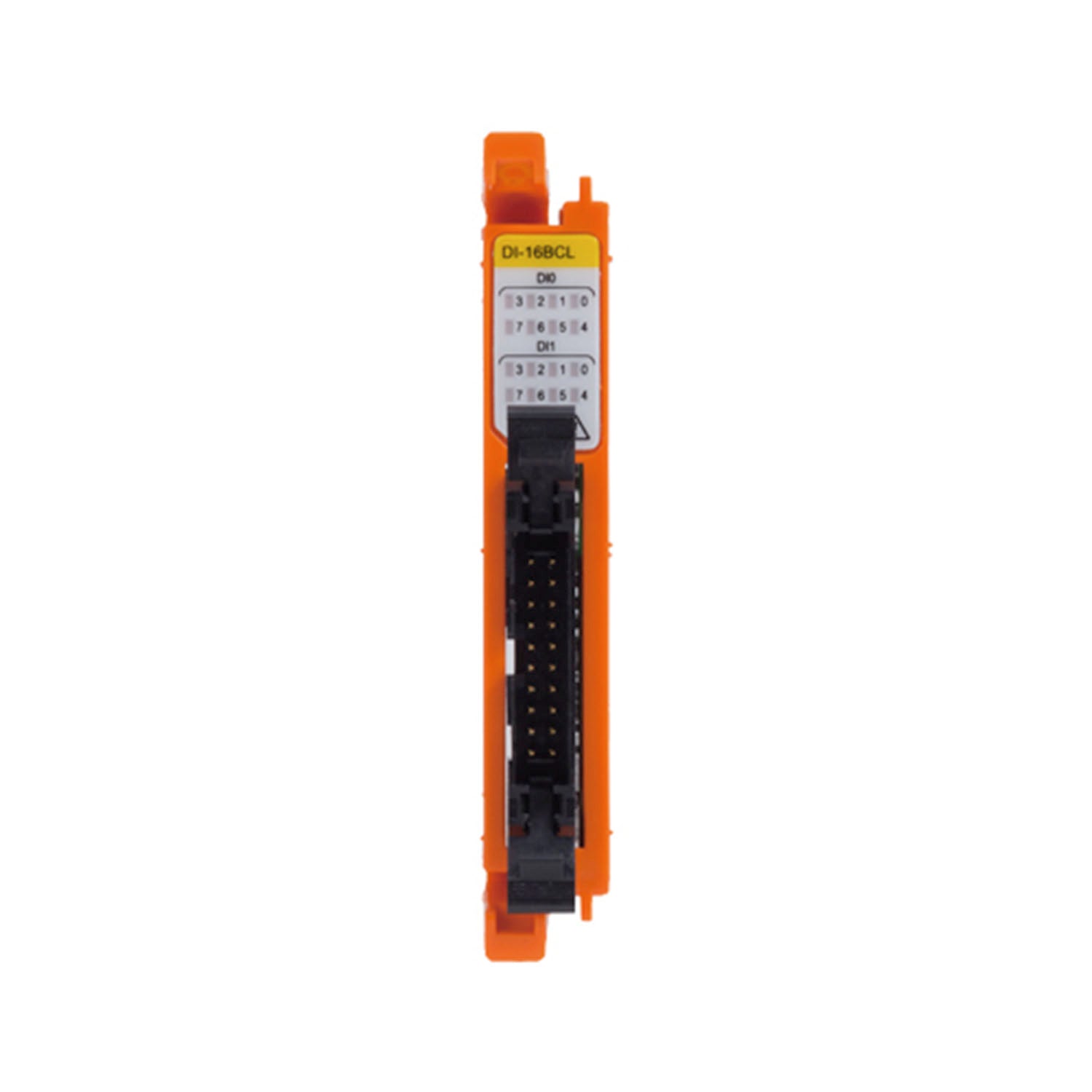

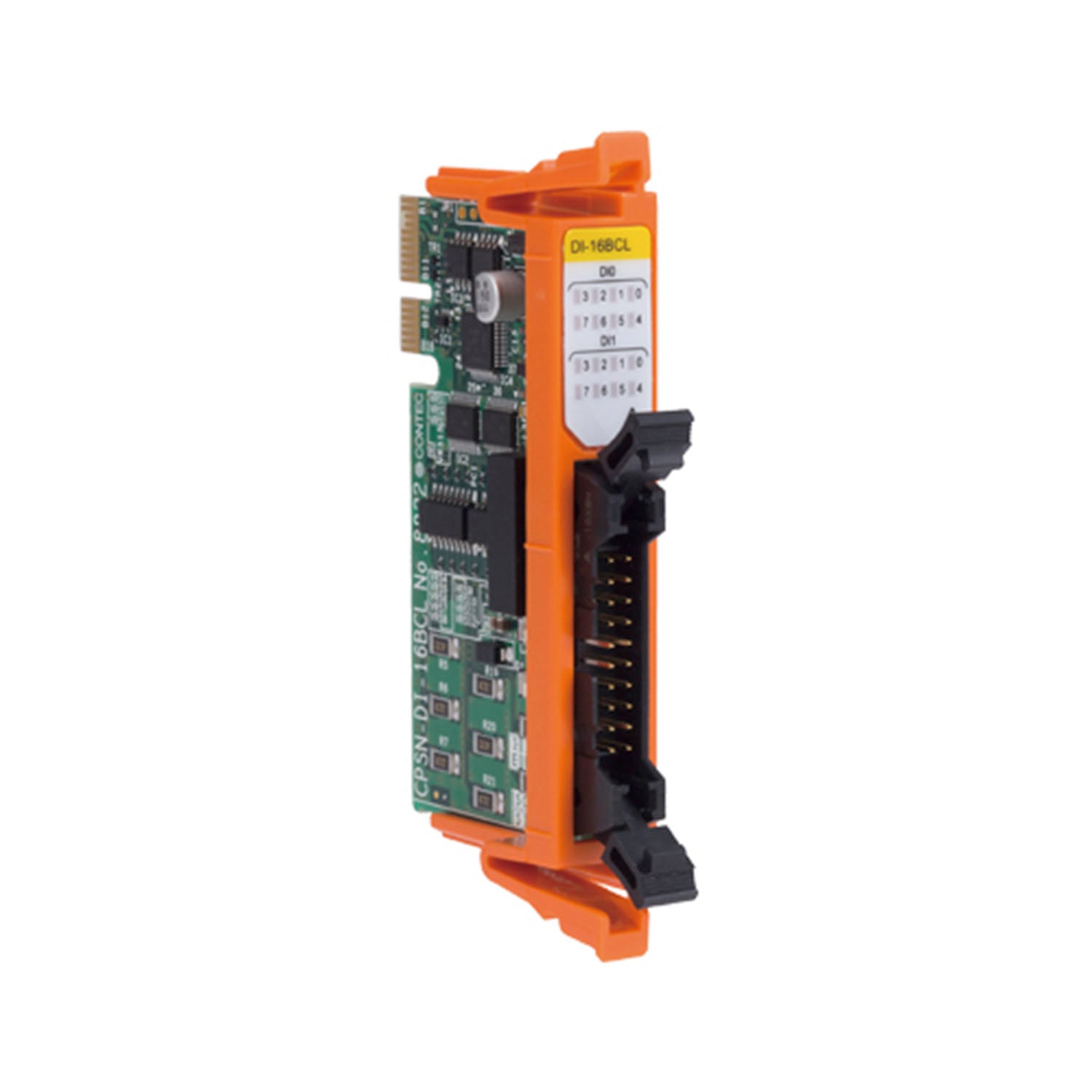

CPSN-DI-16BCL Digital Input CONPROSYS Nano I/O Module 16ch

This expansion I/O module adds an opto-coupler isolated input interface with a response speed of 200 μs or less to the CPU unit of the CONPROSYS nano series. The module is equipped with 16 inputs and 1 common that supports current sink/source output. The module allows to switch from 12V internal circuit power supply and the external circuit power supply of 12-24V.

Opto-coupler isolated input

The module offers 16 opto-coupler isolated input channels with a response speed of 200μsec or less. Also, current sink outputs and current source outputs can be switched.

Internal circuit power supply and external power supply

The module allows to switch between the 12V internal circuit power supply and the external circuit power supply of 12-24V.

All input signals can be configured as interrupt events

You can use all input signals as interrupt events and disable or enable the interrupt in bit units and select the interrupt edge.

Equipped with a digital filter function to prevent false recognition of input signals due to noise and chattering

This module features a digital filter that can prevent input signal noise and chattering. The input digital filter can be applied to all input terminals individually, and configuration can be performed using the software.

Input counter function

Digital input and counter input can be switched per channel. The counter values are automatically saved upon turning off the power.

Adaptable to a wide temperature range between -20 and +60°C

The module can operate in a wide temperature range between -20 and + 60°C. It can be installed in various environments.
