CPSN-DO-08RL
CPSN-DO-08RL

CPSN-DO-08RL

Contact Sales Department for Pricing New CONPROSYS nano Digital Output Module 8-Ch Source Type 200µs Response 500mA per Channel Surge Protection VCCI-A · FCC-A · CE · UKCA 8-channel opto-coupler isolated digital output module for the CONPROSYS nano series. Features current source output, 500mA output per channel, 200µs response time,...
Vendor: Contec Americas Inc.
Availability: 5 In stock
Product type: Data Acquisition
$37.77 USD
$37.77 USD
Subtotal: $37.77 USD
📋

Datasheet

CPSN-DO-08RL

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description

New CONPROSYS nano Digital Output Module 8-Ch Source Type 200µs Response 500mA per Channel Surge Protection VCCI-A · FCC-A · CE · UKCA

8-channel opto-coupler isolated digital output module for the CONPROSYS nano series. Features current source output, 500mA output per channel, 200µs response time, zener diode surge protection, and -20 to +60°C operation. Tool-less installation. Part of the Contec Americas CONPROSYS nano series.

8 Opto-Isolated Outputs
500mA Max per Channel
200µs Response Time
50g Module Weight
Contec Americas · CONPROSYS nano
Source-Type Digital Output
CPSN-DO-08RL · 8-Ch · 500mA · Opto-Isolated · Current Source
View Collection

Source-Type Digital
Output Expansion

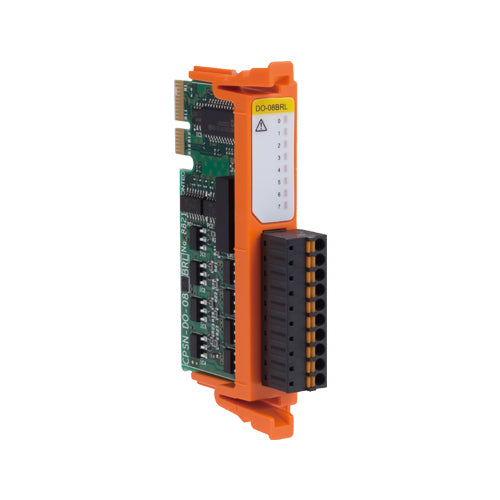

The CPSN-DO-08RL is an expansion I/O module that adds 8 channels of opto-coupler isolated digital output to the CONPROSYS nano series CPU unit or USB I/O Unit - Module Type. With a response time of 200µs or less and 500mA output capacity per channel, it provides reliable high-speed control for industrial actuators, relays, and LEDs. The module features current source (positive logic) output and includes zener diode surge protection.

Sink-Type Output Module
  • Current sink (negative logic)
  • Requires external load connection to VCC
  • Limited to specific applications
CPSN-DO-08RL Advantages
  • Current source (positive logic)
  • Direct drive of LEDs and relays
  • 500mA per channel output
  • Zener diode surge protection

Surge voltage protection — zener diodes are connected to each output circuit, protecting against surge voltages and ensuring reliable operation in industrial environments.

Built for Industrial
Control Applications

The CPSN-DO-08RL is engineered for demanding industrial control applications. Its opto-coupler isolation provides reliable signal output in electrically noisy environments. With 500mA output capacity per channel, it can directly drive relays, solenoids, and indicator LEDs. No electrolytic capacitors means extended product lifetime.

  • Opto-coupler isolation — 1000Vrms isolation voltage for reliable signal output in industrial environments.
  • Source-type output — current source (positive logic) for direct drive of LEDs, relays, and TTL inputs.
  • High output current — 500mA maximum per channel, 26.4VDC maximum output voltage.
  • Zener diode surge protection — protects outputs from voltage surges and transients.
  • Wide operating temperature — -20 to +60°C for versatile installation in various environments.

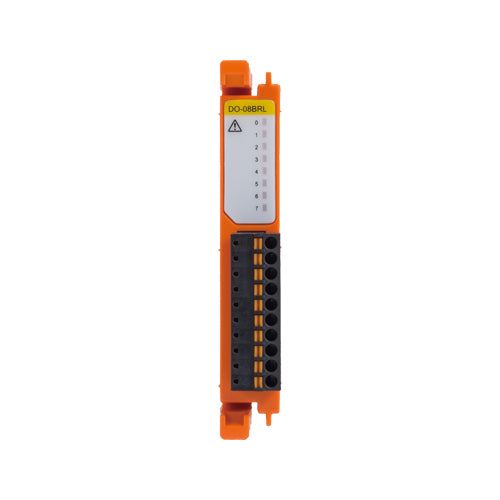

  • LED status indicators — DO00-DO07 green LEDs for visual confirmation of output status.

Full Specifications

Specification Detail
Model CPSN-DO-08RL
Type Digital Output Module
Output Type Opto-coupler isolated output (current source type, positive logic)
Number of Outputs 8 (shared common)
Isolation Opto-coupler isolation
Voltage Resistance AC1000Vrms
Output Voltage 12–24 VDC (±10%) external
Output Current 500mA (Max.) per channel
Maximum Voltage Drop (ON) 0.5V or less
Response Time Within 200µs
External Circuit Power Supply 12–24 VDC (±10%)
Internal Circuit Power Consumption 3.3V 0.08A (Max.)
Connector 2 pieces, 3.81mm pitch 10-pin terminal
Applicable Wire AWG28-16
Dimensions (W×D×H) 15.6 × 52.6 × 84 mm (excluding projections)
Weight 50g

Installation &
Compatibility

The CPSN-DO-08RL is designed for easy integration into CONPROSYS nano systems. It connects directly to the CPU unit or USB I/O Unit - Module Type via the interface connector. The module uses a 10-pin European-style terminal block for output connections.

Compatible Systems
  • CPSN-MCB271-S1-041 Remote I/O CPU unit
  • CPSN-MCB271-1-041 Remote I/O CPU unit (LAN 2-channel)
  • CPSN-PCB271-S1-041 CODESYS Modbus Master CPU unit
  • CC-LSB271-CPSN4 USB I/O Unit - Module Type
Output Connections
  • 10-pin terminal block (3.81mm pitch)
  • Current source output (positive logic)
  • Connector: MC 1.5/10-G-3.81 P26 THR (Phoenix Contact) or equivalent
  • Compatible connector: FK-MCP 1.5/10-ST-3.81 (Phoenix Contact) or equivalent

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (industrial environments).
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking for UK market compliance.
  • ISED — Innovation, Science and Economic Development Canada certification.
  • KC — Korea Certification for electrical equipment.

Optional Accessories

Part Number Description Use
CPSN-MCB271-S1-041 Remote I/O CPU unit System controller for CONPROSYS nano
CPSN-MCB271-1-041 Remote I/O CPU unit LAN 2-channel model System controller with dual LAN
CPSN-PCB271-S1-041 CODESYS Modbus Master CPU unit CODESYS-compatible system controller
CC-LSB271-CPSN4 USB I/O Unit - Module Type (4 slot) I/O expansion chassis
CPS-PWD-30AW24-01 Fitting power supply 30W (100-240VAC, 24VDC 1.3A) System power supply
CPS-PWD-90AW24-01 Fitting power supply 90W (100-240VAC, 24VDC 3.8A) System power supply

Ready to expand your CONPROSYS nano system?

The CPSN-DO-08RL is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity and integration with your industrial control application.

Tags CPSN-DO-08RL CONPROSYS nano Digital Output Module Opto-Isolated Output Source Type Output Current Source Industrial I/O PLC Expansion Remote I/O 200µs Response 500mA Output Contec Americas Factory Automation Modular I/O DIN-Rail Mount
