DIO-0808RN-USB Digital I/O USB I/O unit 8ch/8ch (isolated 12 - 24VDC / power relay - 240VAC - 28VDC) - the N series
Contact Sales Department for Pricing New 1N Series USB I/O 8-Ch Relay Output 8-Ch Opto-Isolated Input 6A 240VAC Output USB 2.0/1.1 Independent Commons VCCI-A · CE · UKCAUSB 2.0 digital I/O unit featuring 8 channels of opto-coupler isolated...
Read full descriptionHide description
USB 2.0 digital I/O unit featuring 8 channels of opto-coupler isolated inputs (12-24VDC) and 8 channels of SPDT relay outputs (Form C) with independent commons. Supports high-capacity output up to 6A 240VAC / 5A 28VDC per channel. Compact design with DIN-rail, magnet, or screw mounting options.
Relay Output & Digital
Input USB I/O

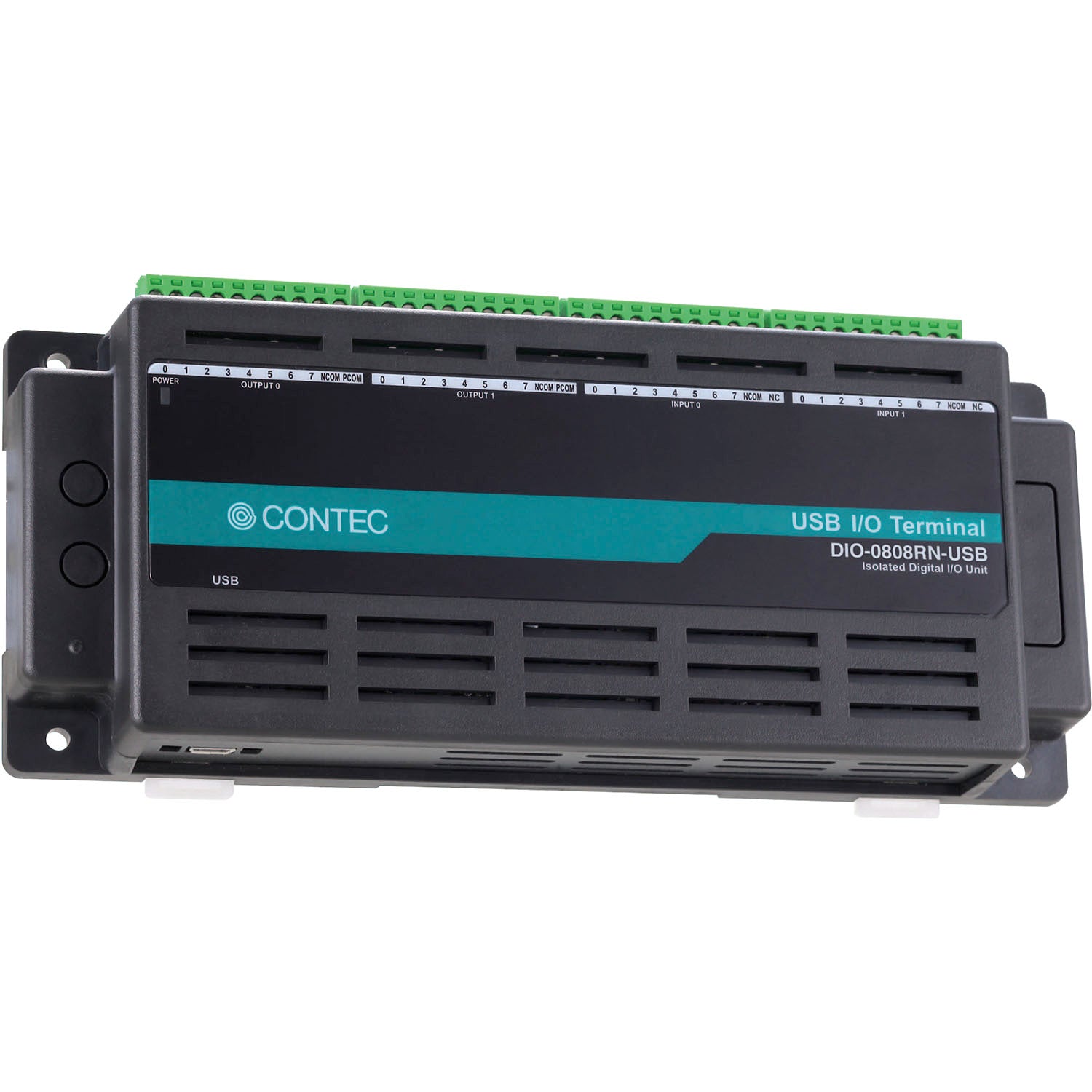

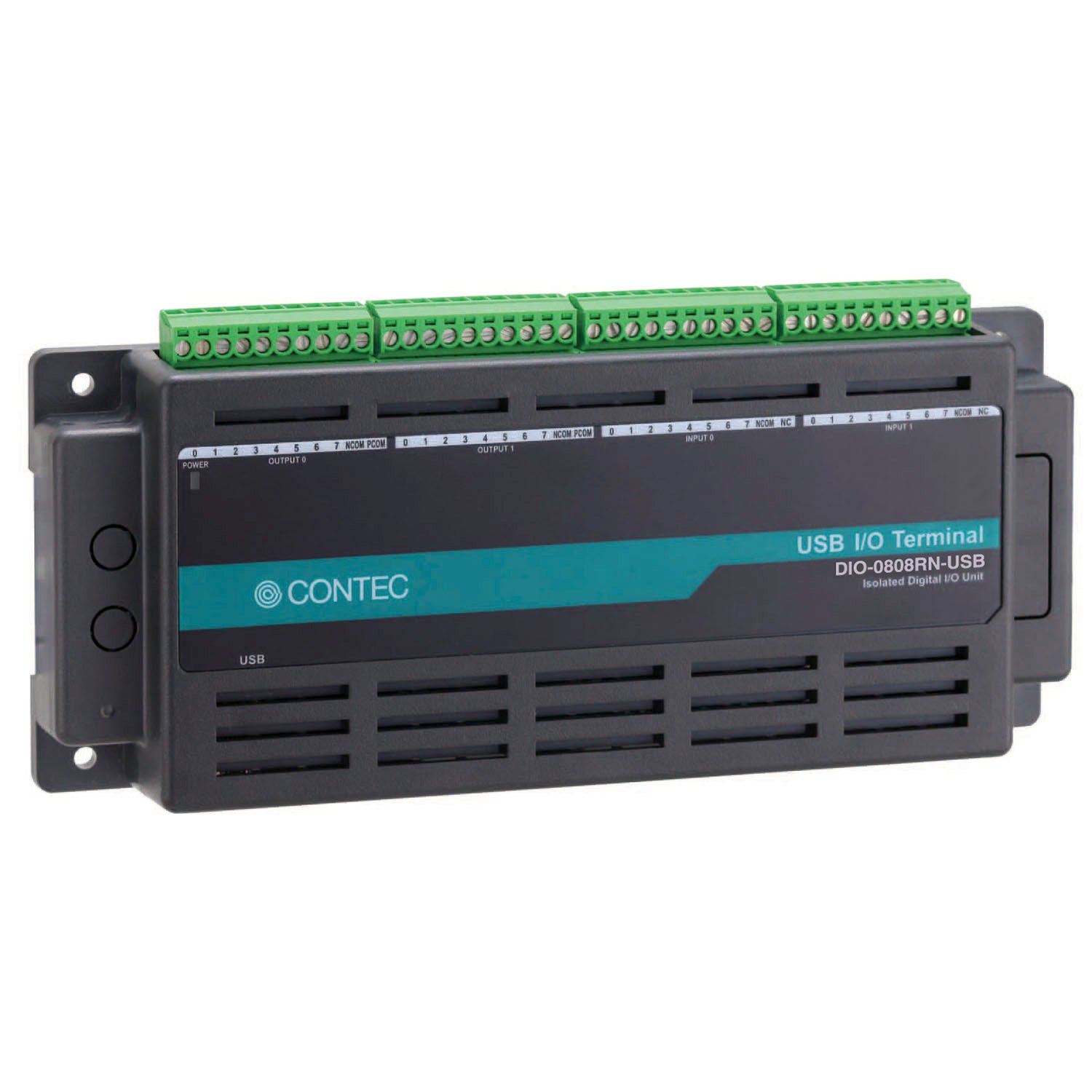

The DIO-0808RN-USB is a USB 2.0-compliant digital I/O unit that extends PC capability with 8 opto-coupler isolated inputs and 8 SPDT relay outputs with independent commons. The high-capacity relay outputs (6A 240VAC / 5A 28VDC per channel) can directly control industrial equipment. USB bus isolation provides excellent noise immunity for reliable operation.
- Low current outputs
- Shared commons
- No opto-isolation
- Limited mounting options
- 6A 240VAC relay outputs
- Independent commons per channel
- Opto-coupler bus isolation
- DIN-rail, magnet, or screw mounting
Independent commons for flexible control — each relay output has its own common terminal, allowing connection to different external power supplies for diverse load control.
Built for Industrial
I/O Applications
The DIO-0808RN-USB is designed for industrial control applications requiring reliable digital input and high-current relay output. Opto-coupler isolation (500Vrms) on inputs and relay isolation on outputs provide excellent noise immunity. The compact 188 × 78 × 30.5 mm design fits easily in control panels.
-
High-capacity relay outputs — 8 SPDT relays with 6A 240VAC / 5A 28VDC rating, mechanical life 10,000,000 operations.
-
Opto-isolated inputs — 8 channels (12-24VDC) with 200µs response, compatible with current sink/source output.
-
Independent commons — each output channel has independent common for flexible power supply configuration.
-
Bus isolation — USB (PC) isolated from input interfaces by opto-couplers and output interfaces by relays.
-
Versatile mounting — DIN-rail, magnet, screw fastening, or rubber feet installation.
-
Windows/Linux support — API-DIO device drivers with diagnostic program and sample code.
Full Specifications
| Specification | Detail |
|---|---|
| Model | DIO-0808RN-USB |
| Input Type | Opto-isolated input (current sink/source compatible, negative logic) |
| Input Channels | 8 (1 common) |
| Input Voltage | 12 – 24 VDC (±10%) |
| Input Response | Within 200µs |
| Output Type | SPDT Relay Output (Form C) with independent commons |
| Output Channels | 8 |
| Max Output Rating | 6A 240VAC / 5A 28VDC (resistive load) |
| Max Permitted Voltage | 240V (max) |
| Max Carry Current | 5A (max) |
| Operate Time | Within 10ms |
| Release Time | Within 5ms |
| Mechanical Life | 10,000,000 operations min |
| Electrical Life | 50,000 operations min |
| USB Specification | USB 2.0/1.1 |
| USB Transfer Rate | 12Mbps (Full-speed) / 480Mbps (High-speed) |
| Current Consumption | 5VDC 430mA (Max) |
| Dimensions (W×D×H) | 188 × 78 × 30.5 mm (excluding protrusions) |
| Weight | 300g |
| Included Cable | USB cable 1.8m |
| Operating Temperature | 0 to +50°C |
| Certifications | VCCI Class A, CE Marking (EMC, RoHS), UKCA |
Installation &
Mounting Options
The DIO-0808RN-USB offers versatile mounting options for various installation environments. The compact design and included mounting accessories enable easy integration into control panels, equipment cabinets, or workspaces.

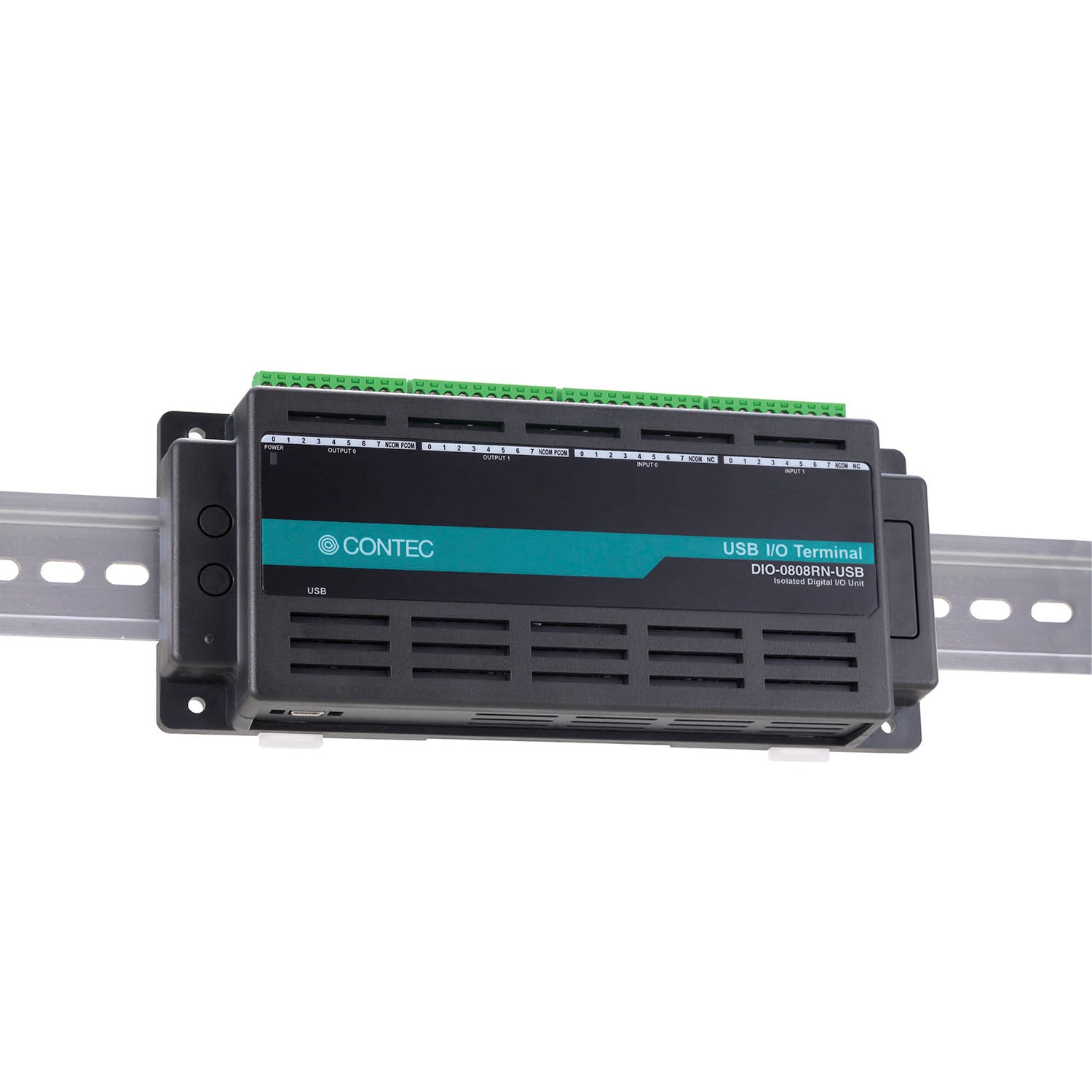

- DIN-rail mounting (standard)
- Magnet attachment
- Screw fastening
- Rubber feet (floor placement)
- USB cable (1.8m)
- Interface connectors (4)
- Magnet (2)
- Rubber feet (4)
Software Support
-
API-DIO (WDM) for Windows — device driver with Windows API functions, sample programs (C#, Visual Basic .NET, Visual C++, Python), and diagnostic program.
-
API-DIO (LNX) for Linux — shared library device driver with sample programs (gcc C/C++, Python) and configuration tool.
-
Software Development Kits (SDK) — additional software tools for easy development available for download.
Related Products
| Part Number | Description | Use |
|---|---|---|
| API-DIO (WDM) | Windows Digital I/O Driver Software | Software for Windows development |
| API-DIO (LNX) | Linux Digital I/O Driver Software | Software for Linux development |
Ready to add USB I/O to your system?
The DIO-0808RN-USB is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity and integration with your industrial control application.
