Contact Sales Department for Pricing New Digital I/O 16 Inputs / 16 Outputs Opto‑Isolated 60µsec Response Low Profile PCIe VCCI-A · CE · UKCA 16 opto‑isolated inputs and 16 open‑collector outputs for PCI Express Low Profile. The DIO‑1616E‑LPE supports 5‑36 VDC I/O with 60µsec response, interrupt on every input, digital...
Vendor: Contec Americas
SKU: LRLB39
Availability: In Stock
Product type: Accessory
📋

Datasheet

DIO-1616E-LPE

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
Description

New Digital I/O 16 Inputs / 16 Outputs Opto‑Isolated 60µsec Response Low Profile PCIe VCCI-A · CE · UKCA

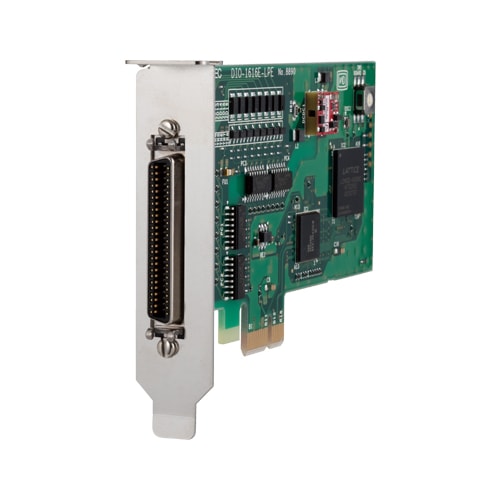

16 opto‑isolated inputs and 16 open‑collector outputs for PCI Express Low Profile. The DIO‑1616E‑LPE supports 5‑36 VDC I/O with 60µsec response, interrupt on every input, digital filter, and overcurrent/surge protection. Low Profile and standard bracket included. Windows/Linux drivers and LabVIEW support. From Contec Americas.

16 Opto‑Isolated Inputs
16 Open‑Collector Outputs
60µs Response Time
5‑36 VDC I/O Range
Contec Americas · Digital I/O
DIO‑1616E‑LPE
16‑Ch DI · 16‑Ch DO · 5‑36 VDC · 60µs · Low Profile PCIe
View Collection

High‑Speed Isolated
Digital I/O

The DIO‑1616E‑LPE provides 16 opto‑isolated inputs and 16 open‑collector outputs for PCI Express Low Profile systems. Supporting 5‑36 VDC signals with 60µsec response time, it is ideal for industrial automation, machine control, and sensing applications. All inputs can generate interrupts, and a programmable digital filter prevents noise and chattering.

Input Features
  • 16 opto‑isolated inputs
  • 5 – 36 VDC
  • Current sinking compatible
  • 60µsec response time
  • Interrupt on all inputs
Output Features
  • 16 open‑collector outputs
  • 5 – 36 VDC recommended
  • 36VDC max, 100mA/ch
  • 60µsec response time
  • Surge and overcurrent protection

High‑speed 60µsec response – both input and output sections deliver fast switching for demanding control applications. The digital filter prevents false triggers from noise or contact bounce.

Industrial‑Grade
Reliability

Engineered for demanding factory automation and machine control applications. The DIO‑1616E‑LPE features opto‑isolated I/O (1000Vrms) for excellent noise immunity, Zener diode surge protection, and overcurrent protection per 8 output channels. Low Profile design fits space‑constrained systems.

  • Opto‑isolated I/O – 1000Vrms isolation between PCI Express bus and I/O interfaces.
  • Digital filter – Programmable filter on all inputs prevents false triggers from noise or chattering.
  • Interrupt on all inputs – Each input can generate an interrupt on rising or falling edge.
  • Surge and overcurrent protection – Zener diodes on input/output circuits; overcurrent protection per 8 output channels.

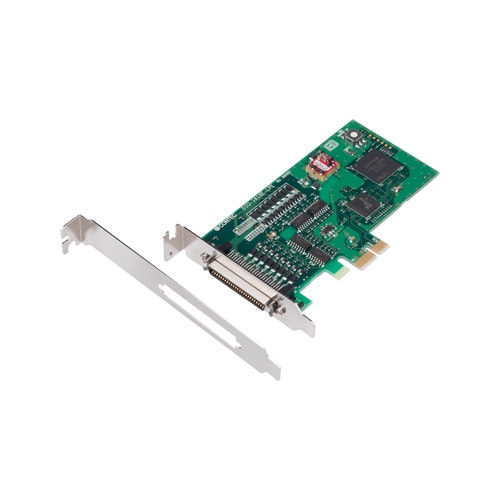

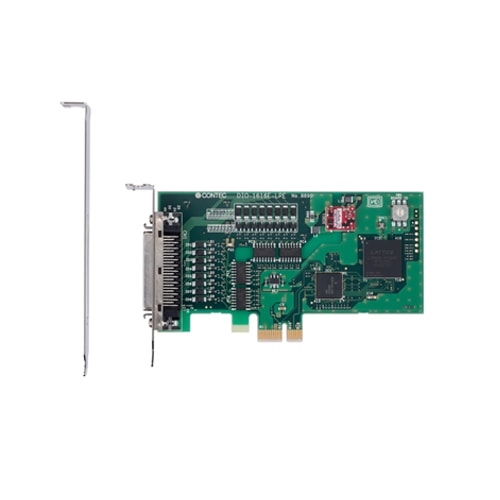

  • Low Profile and standard – Bundled brackets for both Low Profile and standard size PCIe slots.

Full Specifications

Specification Detail
Model DIO-1616E-LPE
Input type Opto‑isolated (current sink compatible)
Input channels 16 (all available for interrupts, 1 common)
Input resistance Current limiting: 680Ω, Shunt: 1.5kΩ
Input ON current 6.4mA (TYP)
Input OFF current 0.57mA or less
Input signal voltage 5 – 36 VDC
Interrupt All inputs, edge selectable
Surge protector (input) Zener diode CMZB47 or equivalent
Response time (rise/fall) 8µsec / 60µsec (max)
Output type Opto‑isolated open‑collector (current sink)
Output channels 16 (1 common)
Output recommended voltage 5 – 36 VDC
Output rated voltage 36 VDC (max)
Output rated current 100mA per channel (max)
Residual voltage at ON 0.5V max (≤50mA), 1.0V max (≤100mA)
Surge protector (output) Zener diode CMZB47 or equivalent
Connecting distance 50m (typical, depends on wiring)
I/O address Any 32‑byte boundary
Interrupt level 1 level use
Boards per system 16 (max)
Isolated voltage 1000 Vrms
Connector 50‑pin Mini‑Ribbon (10250-52A2L or equivalent)
Power consumption 3.3VDC 850mA (max)
Bus specification PCI Express Base Spec Rev. 2.0 x1
Dimensions (mm) 121.69(L) × 67.90(H)
Weight 60g
Operating temperature 0 – 50°C
Operating humidity 10 – 90%RH (no condensation)
Standards VCCI Class A, CE (EMC Class A, RoHS), UKCA
Included items Product, Setup Guide, Warranty Certificate, Serial Number Label, standard size bracket
Datasheet version As of July 2022

Optional Accessories

Product Name Model Description
Shield cable with 50‑pin Mini‑Ribbon (both ends) PCB50PS-05P / -1.5P / -3P 0.5m / 1.5m / 3m
Shield cable with 50‑pin Mini‑Ribbon (one end) PCA50PS-05P / -1.5P / -3P 0.5m / 1.5m / 3m
Connection conversion cable (50‑pin → 37‑pin D‑SUB) PCB50/37PS-0.5P 0.5m
Screw terminal (M3, 50 points) EPD-50A Spring‑up type
Screw terminal (M3, 37 points) EPD-37A Spring‑up type
Screw terminal (M3.5, 37 points) EPD-37 Standard
Termination panel (M3) DTP-3C —
Signal monitor for digital I/O CM-32L —

* Various cables and terminal blocks available. PCB50PS or PCB50/37PS cables required. Visit CONTEC website for latest options.

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial/industrial environments).
  • CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking for UK market compliance.

Ready to add high‑speed isolated digital I/O to your PCIe system?

The DIO‑1616E‑LPE is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your industrial control systems.
