DIO-1616HN-USB Digital I/O USB I/O unit 16ch/16ch (isolated 5 - 50VDC) - the N series
Contact Sales Department for Pricing New DIO-1616HN-USB 16 Isolated Inputs 16 Isolated Outputs 5‑50VDC USB Isolated Internal Input Power VCCI-A · FCC-A · CE · UKCA 16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs (current...
Read full descriptionHide description
16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs (current sink type) in a compact USB unit. 5‑50 VDC operation, 200 µs response. Internal power for inputs — no external supply needed for input section. Outputs support 100 mA per channel with surge and overcurrent protection.
Isolated USB I/O
with Internal Input Power
The DIO‑1616HN‑USB provides 16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs (current sink type) in a compact USB 2.0 unit. Inputs are internally powered (5 VDC) — no external supply needed for input section. Outputs require an external 5‑50 VDC supply and support 100 mA per channel.
- 16 channels, opto-isolated
- Current sink compatible
- 5‑50 VDC external signal
- Internal power for opto-couplers
- 1 common per 16 channels
- 16 channels, open-collector
- Current sink type
- 60 VDC max, 100 mA per channel
- Zener diode surge protection
- Overcurrent protector (8 ch/group)
Internal power for inputs — no external power supply needed for the input section. Outputs require external 5‑50 VDC supply. Common terminals: inputs share 1 common; outputs share 1 common per 8 channels.
Built for Industrial Applications
- Opto‑isolated bus — 500 Vrms isolation between USB and I/O interfaces, excellent noise immunity.
- Internal input power — opto‑couplers powered internally; no external supply needed for inputs.
- Surge protection — zener diode (RD68FM or equivalent) on each output transistor.
- Overcurrent protection — per 8 output channels; temporarily disables outputs when triggered.

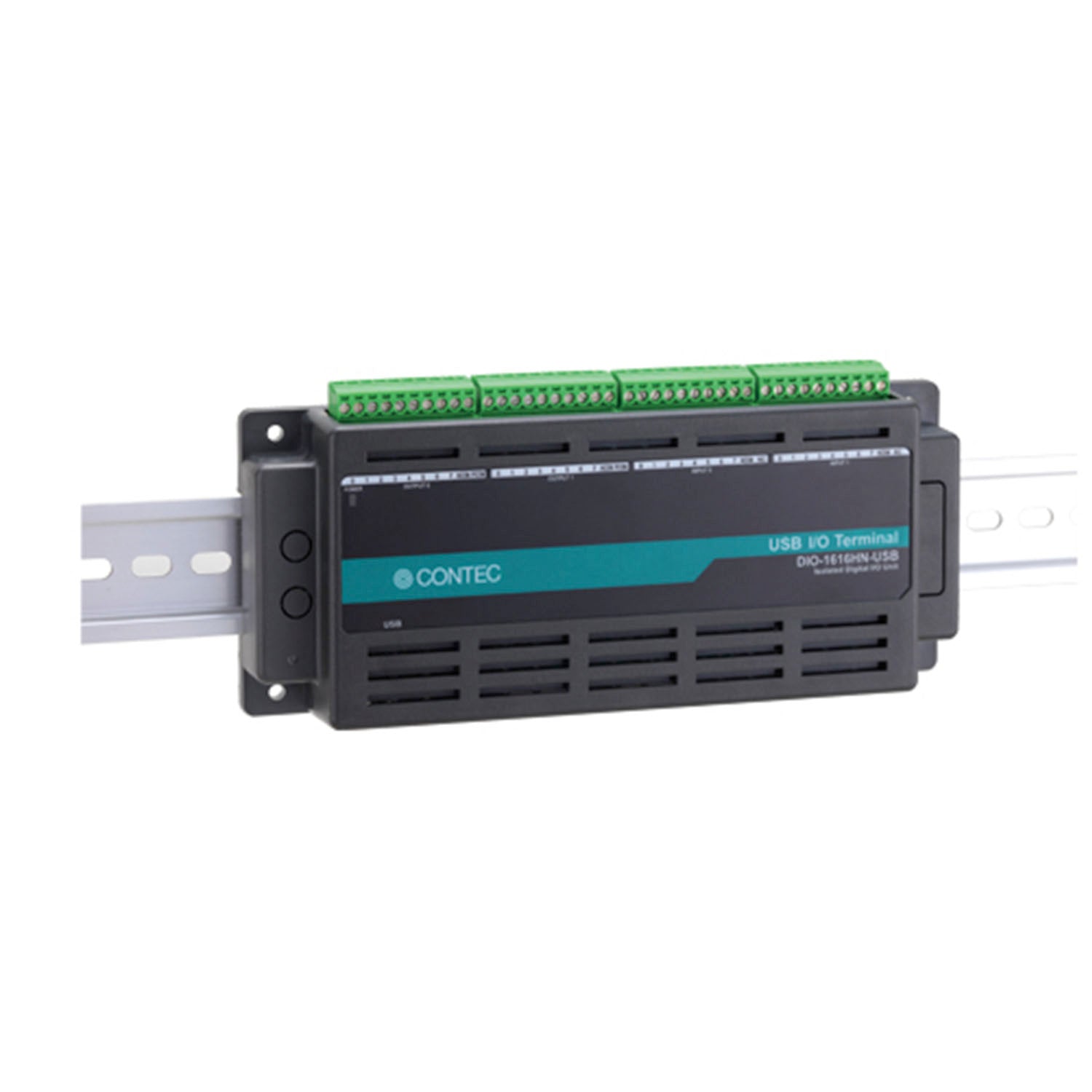

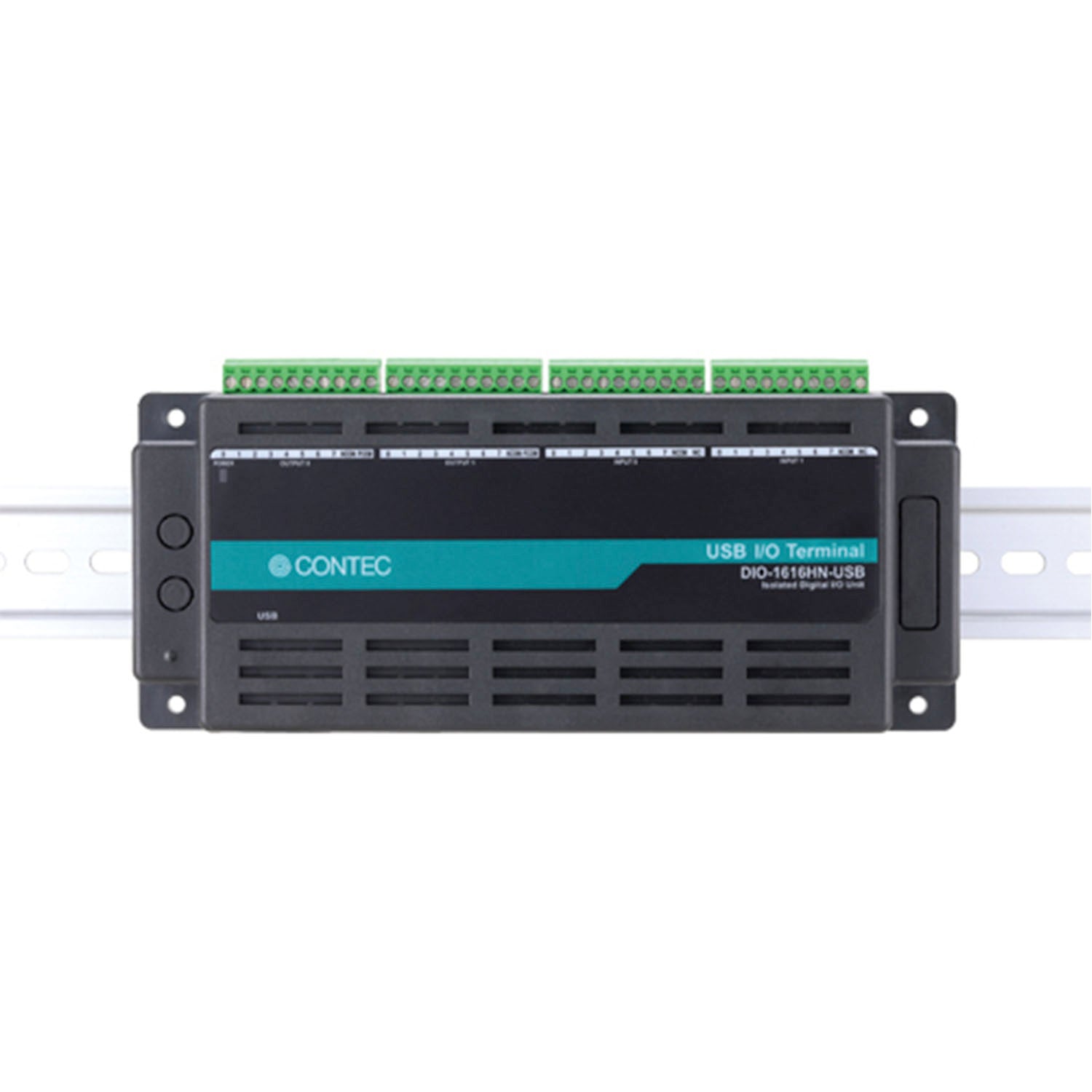

- Compact design — 188.0(W) × 78.0(D) × 30.5(H) mm; screw, magnet, DIN rail, or floor/wall mounting.
- USB 2.0/1.1 — High Speed (480 Mbps) and Full Speed (12 Mbps) compatible.
Full Specifications
| Item | Specification |
|---|---|
| Model | DIO‑1616HN‑USB |
| Input type | Opto‑isolated (current sink compatible), negative logic |
| Input channels | 16 (1 common) |
| Input resistance | 560 Ω |
| Input ON current | 1.15 mA min |
| Input OFF current | 0.16 mA max |
| Input response time | 200 µs max |
| Output type | Opto‑isolated open‑collector (current sink type), negative logic |
| Output channels | 16 (8 channels share 1 common) |
| Output voltage rating | 60 VDC max |
| Output current (ON) | 100 mA per channel max |
| Residual voltage (ON) | ≤0.5V at 50mA; ≤1.0V at ≤100mA |
| Surge protector | Zener diode RD68FM or equivalent |
| Output response time | 200 µs max |
| USB bus specification | USB Specification 2.0/1.1 compliant |
| USB transfer rate | 12 Mbps (Full-speed), 480 Mbps (High-speed) |
| Power supply | Bus power |
| External circuit power supply | 5‑50 VDC ±10% (for outputs) |
| Current consumption | 5 VDC, 300 mA max |
| Isolation voltage | 500 Vrms |
| Connector | European type terminal 3.5mm pitch 10‑pin |
| Connecting distance | Approx. 50 m (depending on wiring) |
| Dimensions (W × D × H) | 188.0 × 78.0 × 30.5 mm |
| Weight | 300 g (excluding cables, attachments) |
| Operating temperature | – |
| Certifications | VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA |
Connector & Cabling

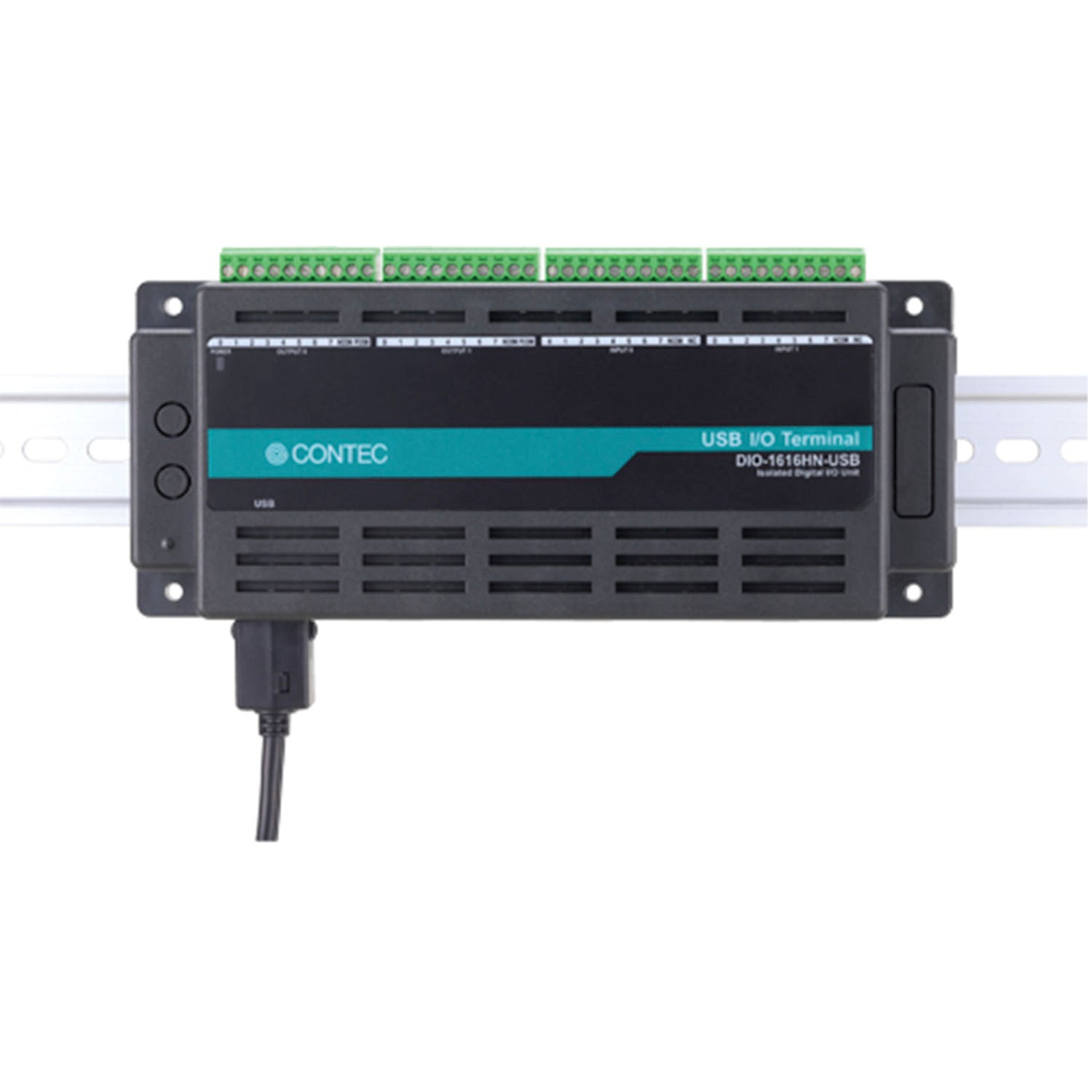

The unit uses two 10‑pin terminal connectors (3.5mm pitch). The supplied plug connectors mate with the board‑mounted jacks. Compatible wire: AWG28‑16. The USB connection uses a standard USB Mini B connector with included 1.8m cable.
- Input connector — 10‑pin plug, signal pins I0‑0 to I0‑7, common pin, and NC.
- Output connector — 10‑pin plug, signal pins O1‑0 to O1‑7, common pins (2 per 8 channels), and NC.
- Wiring — use European type terminal connectors (included). Do not remove by pulling cable.
- Included accessories — USB cable (1.8m), interface connectors (4), rubber feet (4), magnets (2), USB cable attachment.
Certifications & Compliance
- VCCI Class A — Japanese EMC for commercial/industrial environments.
- FCC Class A — U.S. emissions compliance for industrial use.
- CE (EMC Directive Class A + RoHS) — European conformity.
- UKCA — UK conformity assessed.
Optional Accessories
| Part Number | Description |
|---|---|
| – | Consult Contec website for available cables and accessories |
Software & Packing List
| Item | Description |
|---|---|
| Windows driver | API‑DIO(WDM) – Win32 API, samples (C#, VB.NET, VC++, Python), diagnostic tool |
| Linux driver | API‑DIO(LNX) – shared library, gcc (C/C++) and Python samples, config tool |
| SDK & support | Additional software tools available for download |
| Packing List | Product ×1, interface connectors ×4, USB cable attachment ×1, rubber feet ×4, USB cable (1.8m) ×1, magnets ×2, "Please read the following" document |
Ready to add isolated USB digital I/O?
The DIO‑1616HN‑USB is available through Contec Americas on a quote basis. Contact our sales team for volume pricing, cable assemblies, and integration support.
Taxes and shipping calculated at checkout.
Lead times may vary for products shipped from Japan:
Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
