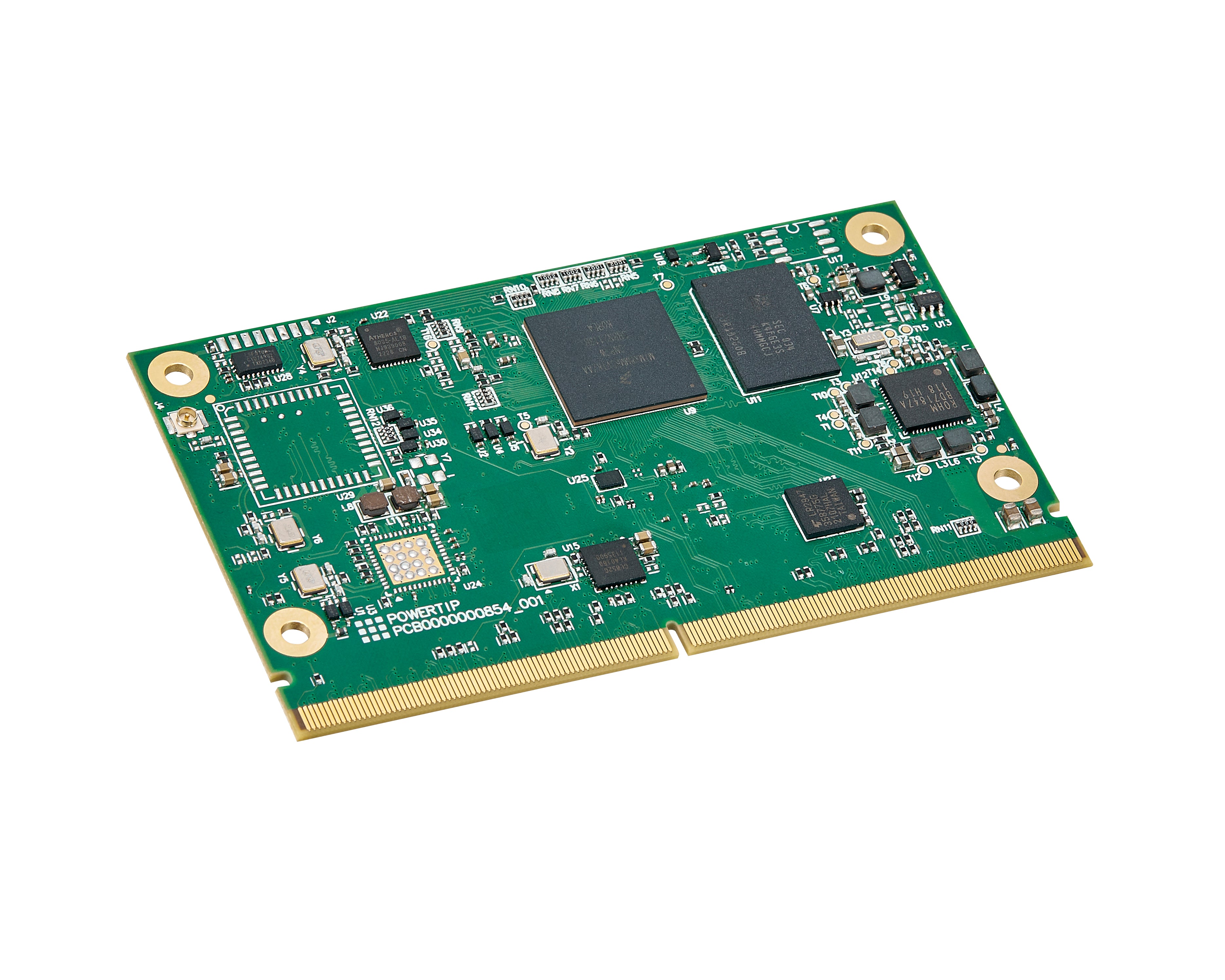

P05D00107-01-AN01 - SMARC board - i.MX8M Mini Quad-Core ARM Cortex-A53

The P05D00107-01-AN01 is a versatile ARM-based SMARC module solution powered by an NXP i.MX8M Mini processor, featuring a 1.6GHz quad-core Cortex-A53 and a Cortex-M4 for real-time control. It includes 2GB of LPDDR4 RAM, 8GB of eMMC flash memory (with options for 32/64GB), and supports up to 1080p resolution via MIPI DSI and LVDS.

This module is designed for multimedia and embedded applications and serves as a practical option for migrating from x86 to ARM platforms. Connectivity options include 10/100/1000 Mbps Ethernet, audio input/output, and multiple USB 2.0 ports. Expandability is provided through M.2 E-Key and B-Key slots, a Micro SD card socket, and a Nano SIM card socket. Power input supports 9~24V DC, and an RTC battery is included. The system supports Yocto and Android.

The module's compact form factor measures 100.0mm x 72.0mm x 28.0mm (maximum height)
