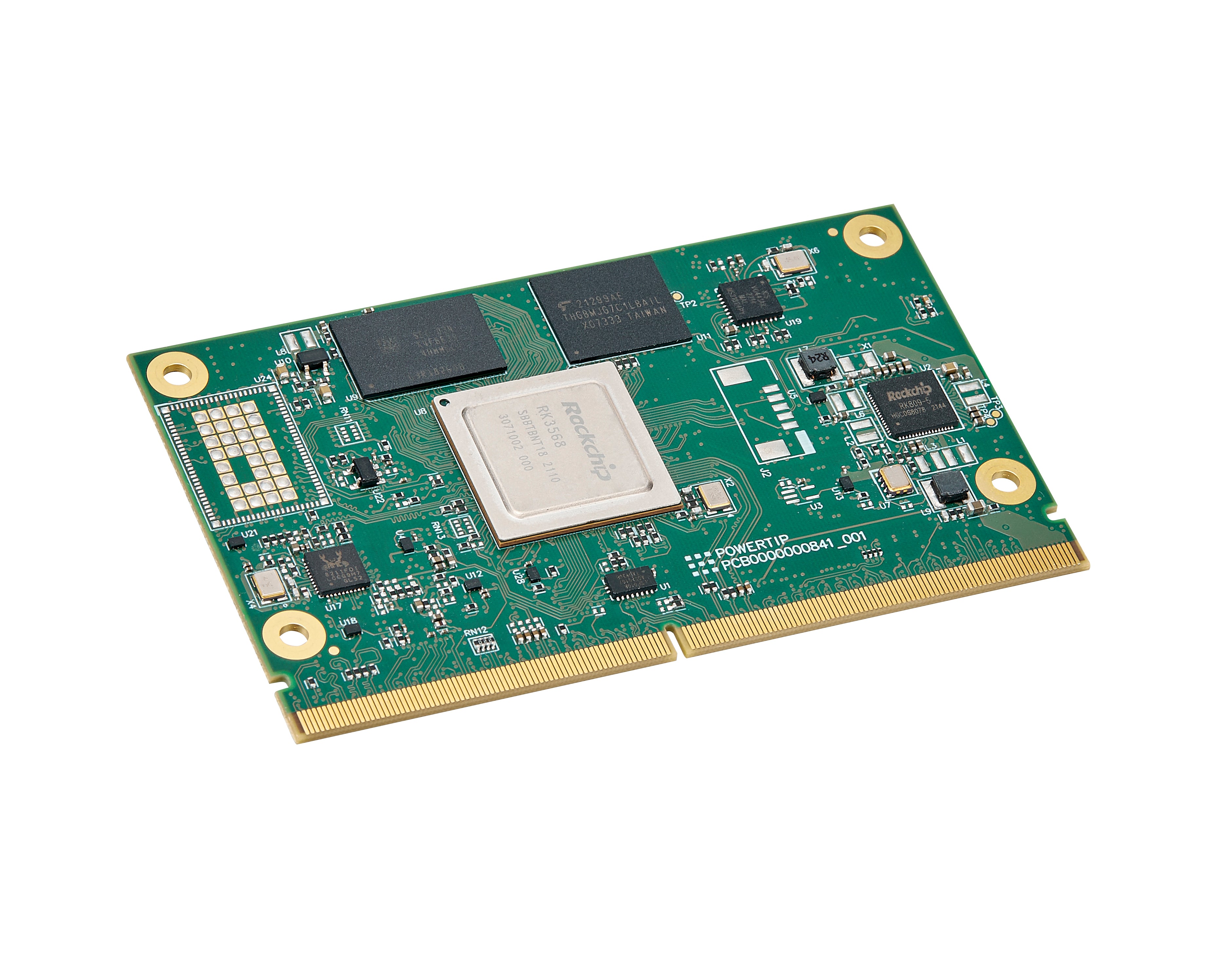

P05D00108-01-AN03 - SMARC board - Rockchip RK3568 with a 2.0GHz quad-core Cortex-A55

The P05D00108-01-AN03 is a highly integrated embedded system solution featuring the RK3568B2 Quad-Core ARM Cortex-A55 processor. It is designed to deliver high performance and rich multimedia capabilities, making it suitable for a wide range of applications in industries like automation, healthcare, and digital signage.

Key Features:

• Powerful Processing: Equipped with a RK3568B2 Quad-Core ARM Cortex-A55 processor and ARM Mali-G52 GPU.
• High-Definition Display Support: Supports up to 4096x2304@60Hz via HDMI and 2560x1600@60Hz via eDP, with options for dual LVDS or MIPI DSI outputs.
• Memory and Storage: Includes 2GB LPDDR4 SDRAM (options for 4/8GB) and 16GB eMMC flash (options for 32/64GB) for efficient operation and data storage.
• Expandability: Features M.2 E-Key and B-Key slots, Micro SD card socket, and Nano SIM card socket for enhanced connectivity and storage options.
• Versatile Connectivity: Offers multiple USB ports (USB 3.0 and 2.0, including Type-C with DP/PD support), dual Gigabit Ethernet, MIPI CSI camera input, audio input/output, and various serial ports (UART, RS232, RS485, CAN).
• Compact Design: The module has a compact form factor with dimensions of 100.0mm x 72.0mm x 28.0mm (maximum height).
• Flexible Power Supply: Supports 9~24V DC input.

This solution is designed to provide the flexibility and performance needed for demanding applications, offering a reliable platform for industrial automation, healthcare systems, digital signage, and more.
