PIO-16/16L(LPCI)H Digital I/O Low Profile PCI card 16ch/16ch (isolated 12 - 24VDC)

PIO-16/16L(LPCI)H Digital I/O Low Profile PCI card 16ch/16ch (isolated 12 - 24VDC)

Contact Sales Department for Pricing New PCI I/O 16-Ch Isolated Input 16-Ch Isolated Output Low-Profile/Standard PCI 12-24 VDC I/O Interrupt Support VCCI-A · CE · UKCA PCI digital I/O board featuring 16 opto-coupler isolated inputs and 16 opto-coupler isolated open-collector outputs (12-24VDC). Supports low-profile and standard PCI slots, interrupt on...
Vendor: Contec Americas Inc.
SKU: LRBF91
Availability: In Stock
Product type: Digital Input/Output
$0.00 USD
$0.00 USD
Subtotal: $0.00 USD
📋

Datasheet

PIO-16/16L(LPCI)H Digital I/O Low Profile PCI card 16ch/16ch (isolated 12 - 24VDC)

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Description

New PCI I/O 16-Ch Isolated Input 16-Ch Isolated Output Low-Profile/Standard PCI 12-24 VDC I/O Interrupt Support VCCI-A · CE · UKCA

PCI digital I/O board featuring 16 opto-coupler isolated inputs and 16 opto-coupler isolated open-collector outputs (12-24VDC). Supports low-profile and standard PCI slots, interrupt on all inputs, digital filter, surge protection, and Windows/Linux driver support.

16 Isolated Inputs
16 Isolated Outputs
200µs Response Time
60g Board Weight
Contec Americas · PCI I/O
Digital I/O Board
PIO-16/16L(LPCI)H · 16 DI · 16 DO · 12-24 VDC · Low-Profile
View Collection

High-Density PCI
Digital I/O

The PIO-16/16L(LPCI)H is a PCI-compliant interface board providing 16 opto-coupler isolated inputs and 16 opto-coupler isolated outputs. With support for 12-24VDC I/O, interrupt capability on all inputs, and a digital filter for noise immunity, this board is ideal for industrial control and monitoring applications. The low-profile design fits both standard and low-profile PCI slots.

Standard PCI I/O
  • Fewer I/O points
  • No interrupt support
  • No digital filter
  • Non-isolated
PIO-16/16L(LPCI)H Advantages
  • 32 total I/O points (16 in / 16 out)
  • Interrupt on all inputs
  • Digital filter for noise immunity
  • Opto-coupler isolation (1000Vrms)

Flexible PCI compatibility — supports both low-profile and standard PCI slots with the bundled interchangeable bracket, making it suitable for space-constrained industrial computers.

Industrial I/O
Features

The PIO-16/16L(LPCI)H is designed for reliable industrial I/O applications. Opto-coupler isolation (1000Vrms) provides excellent noise immunity. The digital filter prevents false recognition from noise or chattering. Output circuits include zener diode surge protection and overcurrent protection.

  • High-density I/O — 16 opto-isolated inputs and 16 opto-isolated outputs in a compact low-profile form factor.
  • Interrupt capability — all 16 input signals can be used as interrupt requests with edge selection.
  • Digital filter — prevents false recognition of input signals from noise or chattering (software configurable).
  • Output protection — zener diode surge voltage protection and overcurrent protection (8-channel units).
  • Opto-coupler isolation — 1000Vrms isolation between PCI bus and I/O interfaces.
  • Universal key — 32-bit, 33MHz PCI bus support with universal key.

Full Specifications

Specification Detail
Model PIO-16/16L(LPCI)H
Input Type Opto-isolated input (current sink compatible, negative logic)
Input Channels 16 (1 common)
Input Voltage 12 – 24 VDC (±10%)
Input Response Within 200µs
Interrupt 16 inputs → single interrupt; rising/falling edge selectable via software
Output Type Opto-isolated open-collector (current sink, negative logic)
Output Channels 16 (1 common)
Output Rating 35VDC (Max), 100mA per channel
Output Response Within 200µs
Isolation Voltage 1000Vrms
PCI Bus Specification 32-bit, 33MHz, Universal key
Power Consumption 5VDC 100mA (Max)
Dimensions (L×H) 121.69 × 63.41 mm
Weight 60g
Operating Temperature 0 – +50°C
Certifications VCCI Class A, CE Marking (EMC, RoHS), UKCA

Connector &
Installation

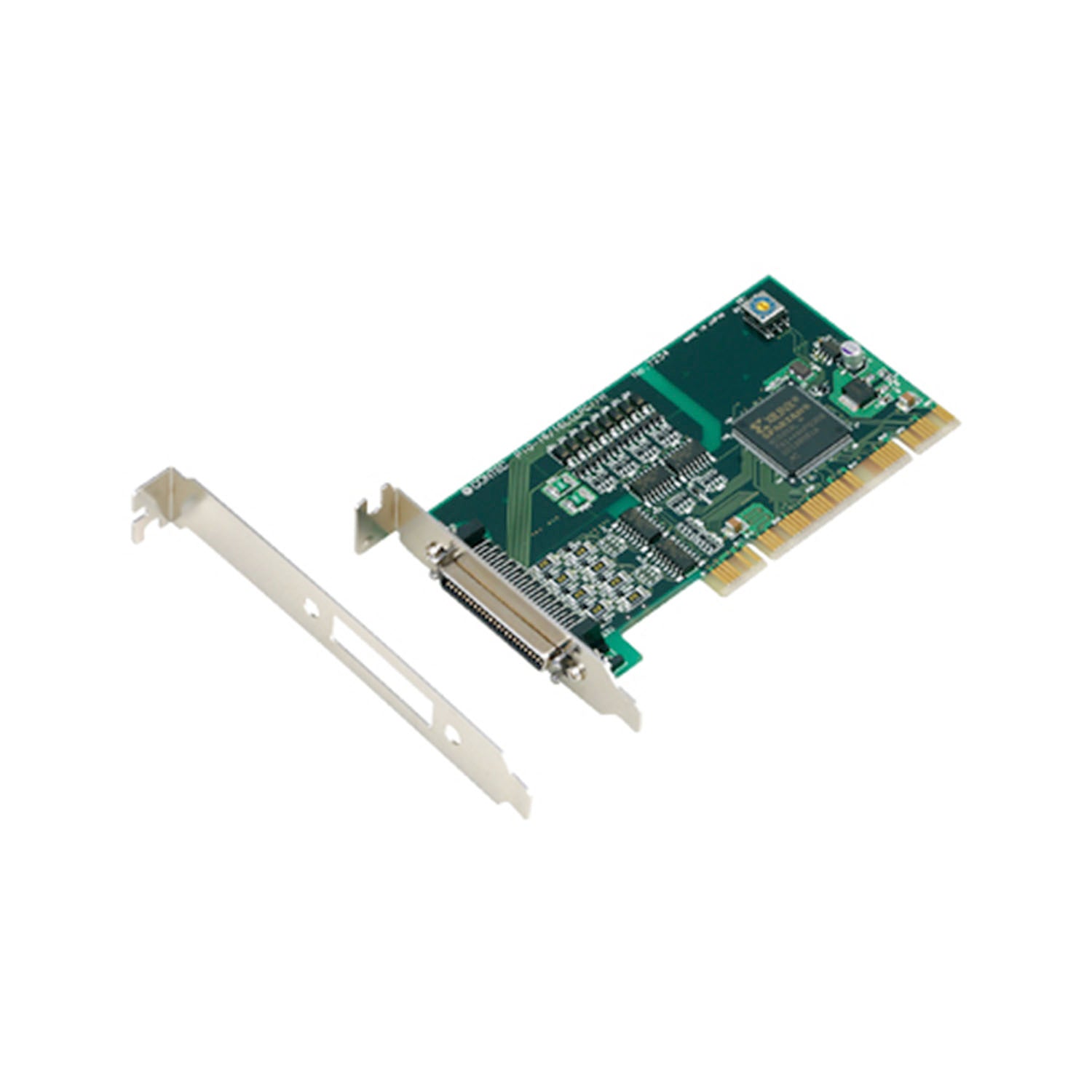

The PIO-16/16L(LPCI)H features a 37-pin D-SUB connector for I/O connections. The low-profile design fits both standard and low-profile PCI slots with the bundled interchangeable bracket.

Connector Details
  • 37-pin D-SUB connector
  • 16 inputs (1 common)
  • 16 outputs (1 common)
  • External power: 12-24 VDC
PCI Compatibility
  • Low-profile PCI slot support
  • Standard PCI slot support
  • Interchangeable bracket included
  • Universal key (3.3V/5V)

Software Support

  • API-PAC(W32) for Windows — library software providing Windows API functions, sample programs (Visual Basic, Visual C/C++), and diagnostic program.
  • API-DIO(LNX) for Linux — shared library device driver with sample programs (gcc C/C++) and configuration tool.
  • VI-DAQ for LabVIEW — VI library for National Instruments LabVIEW, available for free download.

Optional Accessories

Part Number Description Use
PCB50PS-0.5P Shield Cable with 50-pin Mini-Ribbon (0.5m) I/O cable
PCB50PS-1.5P Shield Cable with 50-pin Mini-Ribbon (1.5m) I/O cable
PCB50PS-3P Shield Cable with 50-pin Mini-Ribbon (3m) I/O cable
PCB50PS-5P Shield Cable with 50-pin Mini-Ribbon (5m) I/O cable
EPD-50A Screw Terminal Unit (M3 × 50 points) I/O connection terminal
EPD-37A Screw Terminal Unit (M3 × 37 points) I/O connection terminal
CM-32L Signal Monitor for Digital I/O (32-bit) I/O status monitoring

Ready to add high-density PCI I/O to your system?

The PIO-16/16L(LPCI)H is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity and integration with your industrial control application.

Tags PIO-16/16L(LPCI)H PCI I/O Digital I/O Board Opto-Isolated I/O 16-Ch Input 16-Ch Output Low-Profile PCI Industrial I/O Contec PCI I/O Factory Automation Interrupt I/O
