PIO-16/16L(PCI)H Digital I/O PCI card 16ch/16ch (isolated 12 - 24VDC)
Contact Sales Department for Pricing New PIO-16/16L(PCI)H 16 Isolated Inputs 16 Isolated Outputs 12‑24VDC Current Sink I/O Interrupt on all inputs VCCI-A · FCC-A · CE · UKCA16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs...
Read full descriptionHide description
16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs (current sink type) on a PCI board. 12‑24 VDC operation, 200 µs response, interrupt on all inputs, digital filter, surge and overcurrent protection.
Isolated Digital I/O
for Industrial Control

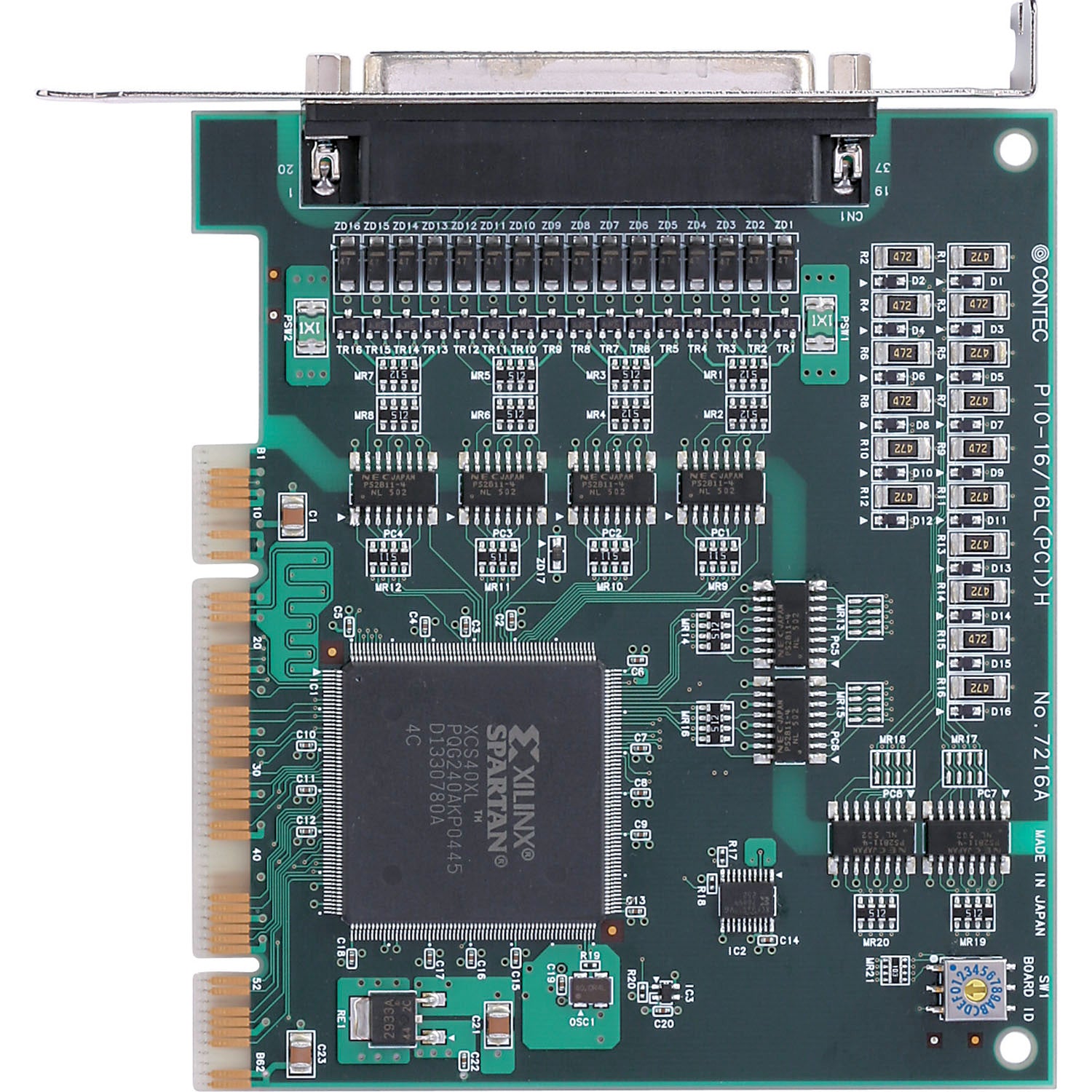

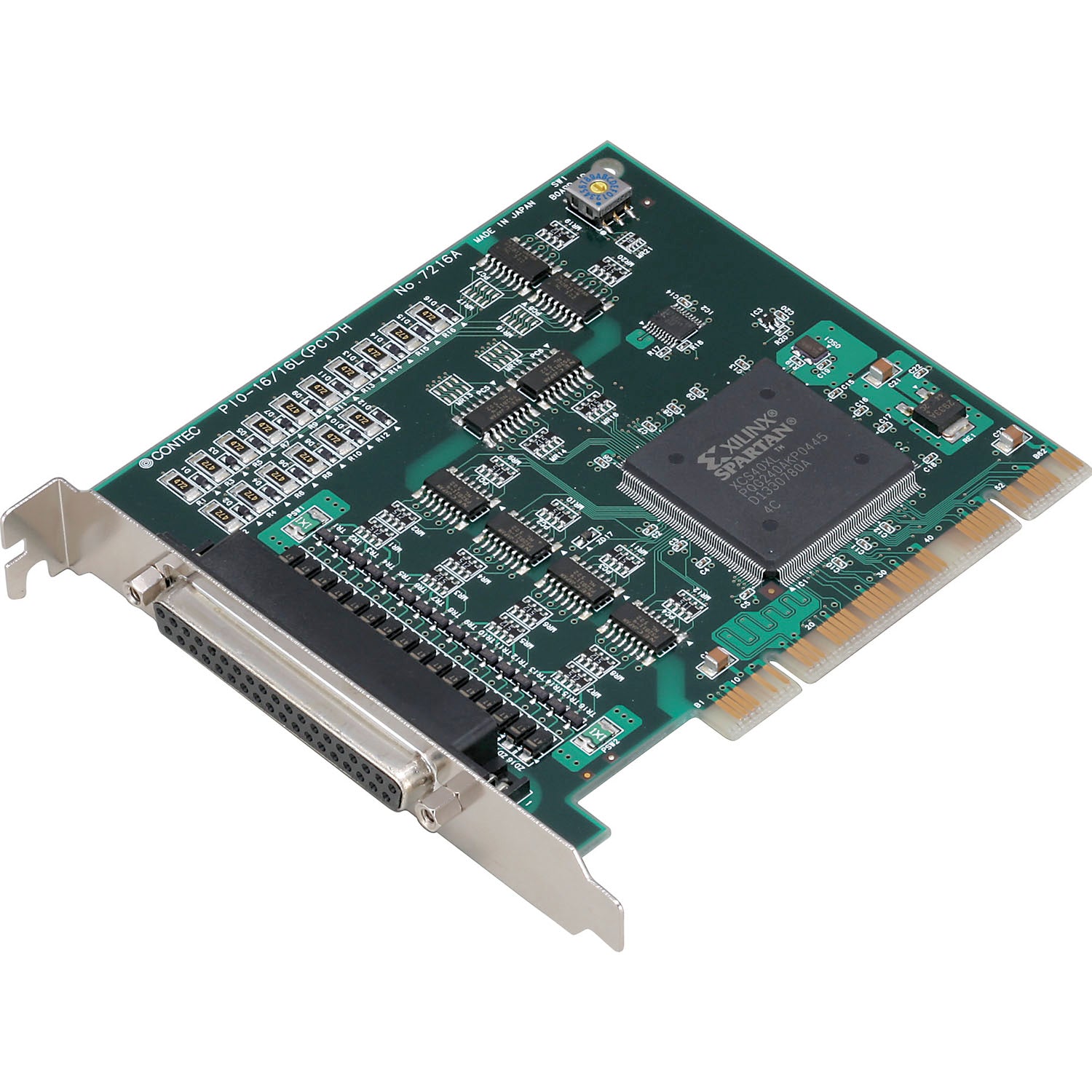

The PIO‑16/16L(PCI)H provides 16 opto‑isolated inputs (current sink compatible) and 16 opto‑isolated open‑collector outputs (current sink type) on a PCI bus board. It accepts 12‑24 VDC signals and features a 200 µs response time. All 16 inputs can be used as interrupt request signals with per‑bit enable/disable and selectable edge triggering.
- 16 channels, opto-isolated
- Current sink compatible
- 12‑24 VDC external supply
- Common terminal per 16 channels
- All inputs can be interrupt sources
- 16 channels, open-collector
- Current sink type
- 35 VDC max, 100 mA per channel
- Zener diode surge protection
- Overcurrent protector (8 ch/group)
Opto‑isolated bus — 1000 Vrms isolation between PCI bus and I/O interfaces, excellent noise immunity. Surge protection (zener diode) and overcurrent protection per 8 output channels.
Built for Reliable Operation
-
Opto‑isolated bus — 1000 Vrms isolation between PCI bus and I/O interfaces, excellent noise immunity.
-
Surge protection — zener diode on each output transistor.
-
Overcurrent protection — per 8 output channels; protects output transistors from excessive current.
-
Digital filter — software‑configurable per input to reject noise and contact bounce.
-
Interrupt on all 16 inputs — edge selectable (rising/falling) per bit; disable/enable in bit units.
-
Compact design — 121.69(L) × 105.68(H) mm.
Full Specifications
| Item | Specification |
|---|---|
| Model | PIO‑16/16L(PCI)H |
| Input type | Opto‑isolated (current sink compatible), negative logic |
| Input channels | 16 (all interrupt‑capable, common per 16 channels) |
| Input resistance | 4.7 kΩ |
| Input ON current | 2.0 mA min |
| Input OFF current | 0.16 mA max |
| Input response time | 200 µs max |
| Output type | Opto‑isolated open‑collector (current sink type), negative logic |
| Output channels | 16 (common per 16 channels) |
| Output voltage rating | 35 VDC max |
| Output current (ON) | 100 mA per channel max |
| Residual voltage (ON) | ≤0.5V at 50mA; ≤1.0V at ≤100mA |
| Surge protector | Zener diode |
| Output response time | 200 µs max |
| Interrupt | All inputs, bit‑selectable, edge configurable |
| Digital filter | Software‑configurable, all inputs |
| Bus interface | 32‑bit, 33 MHz PCI (Universal key, requires +5V) |
| I/O address | Any 32‑byte boundary |
| Interrupt level | 1 level |
| Max boards per system | 16 |
| Isolation voltage | 1000 Vrms |
| External circuit power supply | 12‑24 VDC ±10% |
| Power consumption | 5 VDC, 200 mA max |
| Connector | 37‑pin D‑SUB (female) |
| Connecting distance | 50 m (Typ, depending on wiring) |
| Dimensions (L × H) | 121.69 × 105.68 mm |
| Weight | 130 g |
| Operating temperature | 0‑50°C |
| Operating humidity | 10‑90% RH (no condensation) |
| Certifications | VCCI Class A, CE (EMC Class A, RoHS), UKCA |

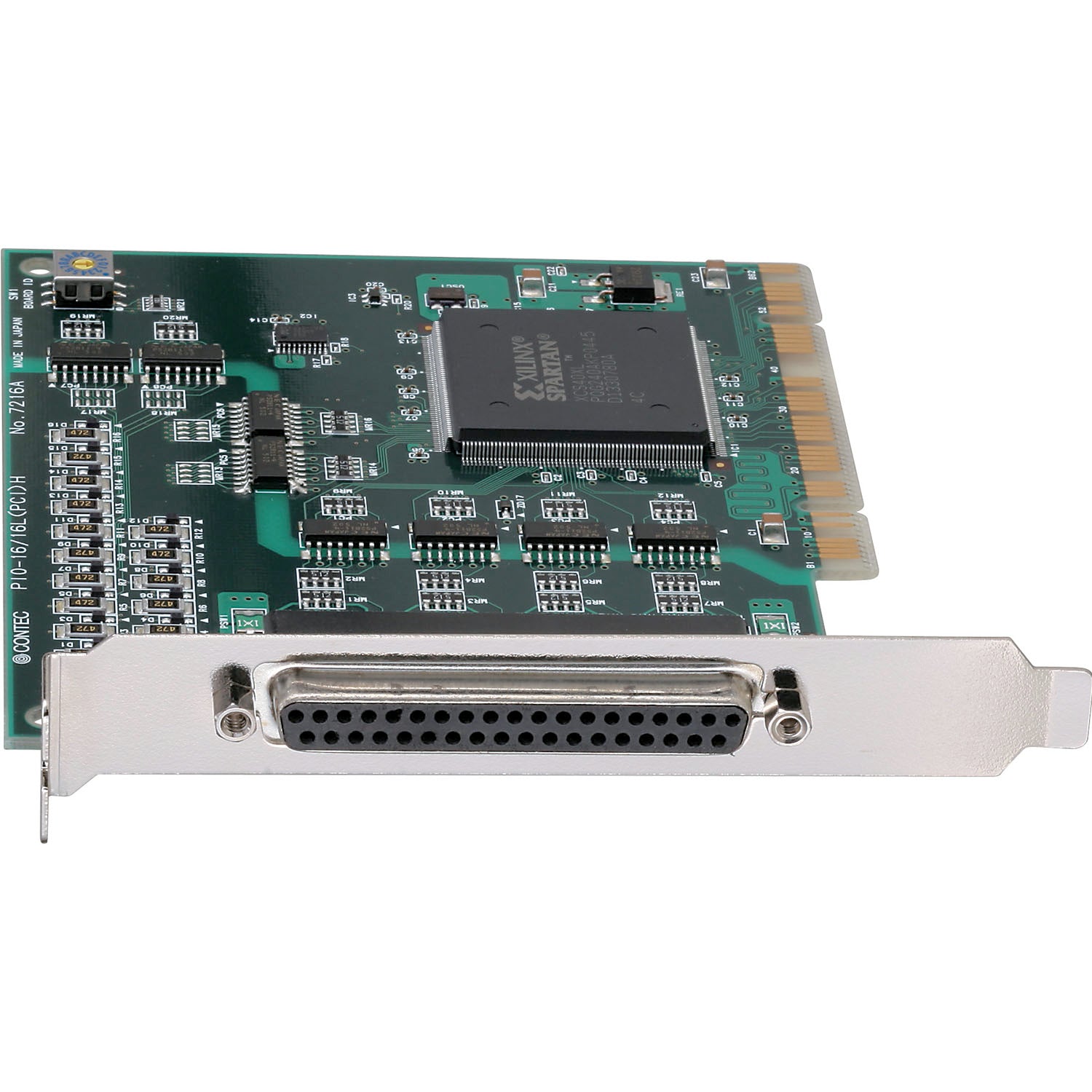

Connector & Cabling
The board uses a 37‑pin D‑SUB connector (female). Pin assignments: I‑00 to I‑17 (inputs), O‑20 to O‑37 (outputs), IP‑0/1 (input common positive), OP‑2/3 (output common positive), ON‑2/3 (output common negative), and NC.
-
Input common (IP‑0/1) — positive side of external supply; common to 16 input signals.
-
Output common (OP‑2/3, ON‑2/3) — positive and negative sides of external supply; common to 16 output signals.
-
Optional cables — shielded/flat 37‑pin D‑SUB cables (PCB37PS, PCB37P).
-
Terminal boards — EPD‑37A (M3 spring‑up), EPD‑37 (M3.5), DTP‑3C, DTP‑4C; signal monitor CIM‑32L.
Certifications & Compliance
-
VCCI Class A — Japanese EMC for commercial/industrial environments.
-
FCC Class A — U.S. emissions compliance for industrial use.
-
CE (EMC Directive Class A + RoHS) — European conformity.
-
UKCA — UK conformity assessed.
Optional Accessories
| Part Number | Description |
|---|---|
| PCB37PS‑0.5P | Shielded cable, 37‑pin D‑SUB both ends, 0.5m |
| PCB37PS‑1.5P | Shielded cable, 37‑pin D‑SUB both ends, 1.5m |
| PCB37PS‑3P | Shielded cable, 37‑pin D‑SUB both ends, 3m |
| PCB37PS‑5P | Shielded cable, 37‑pin D‑SUB both ends, 5m |
| PCB37P‑1.5 | Flat cable, 37‑pin D‑SUB both ends, 1.5m |
| PCB37P‑3 | Flat cable, 37‑pin D‑SUB both ends, 3m |
| EPD‑37A | Screw terminal (M3 × 37P, spring‑up) |
| EPD‑37 | Screw terminal (M3.5 × 37P) |
| DTP‑3C | General purpose terminal |
| DTP‑4C | Screw terminal |
| CIM‑32L | Signal monitor for digital I/O (32‑bit) |
Software & Packing List
| Item | Description |
|---|---|
| Windows driver | API‑DIO(WDM) – Win32 API, samples (C#, VB.NET, VC++, Python), diagnostic tool |
| Linux driver | API‑DIO(LNX) – shared library, gcc (C/C++) and Python samples, config tool |
| SDK & support | Additional software tools available for download |
| Packing List | Product ×1, "Please read the following" document |
