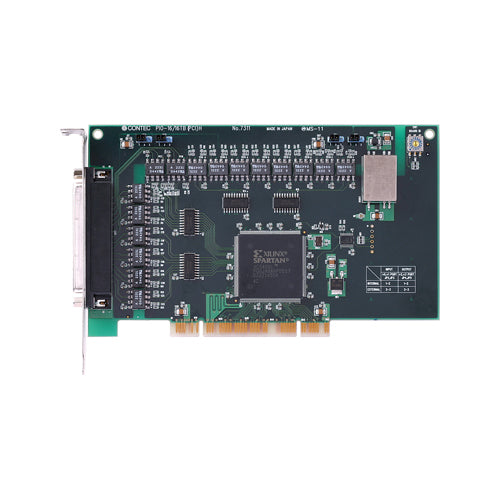

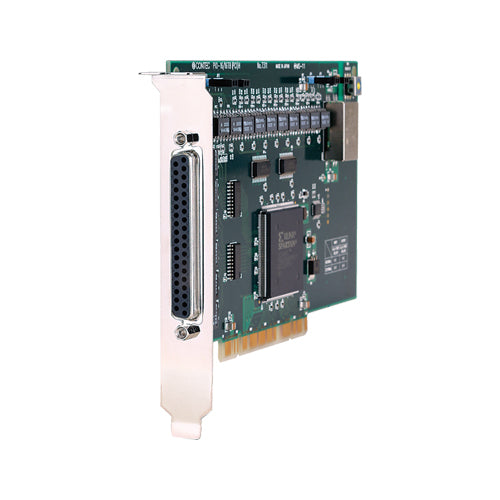

PIO-16/16TB(PCI)H Digital I/O PCI card 16ch/16ch

The PIO 16/16TB(PCI)H is a PCI bus interface board that outputs and inputs a TTL-level digital signal. The board is capable of up to 16 inputs and 16 outputs. The driver (API-PAC(W32)) for Windows and Linux appending.

Key Features

• Improved noise-protection Opto-isolated input and output
• The signal arrangement of a connector is the same as PIO-16/16TB(PCI), and compatibility
• It can input 16 points TTL level digital signal.
• It can output 16 points TTL level digital signal
• All the 16 input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen. It has the digital filter function in which the noise and chattering of an input signal can be prevented
• The power supply for a photo-coupler drive is built-in. Moreover, the selection of a built-in power supply (5VDC, 600mA) / external power supply is possible
