SH-8008F FLEXLAN Series 8 port 10/100M Unmanaged Industrial Switching HUB
Contact Sales Department for Pricing New SH-8000 Series 8-Port Unmanaged Switch Compact Design DIN-Rail Mount 8-35 VDC Input Dual Power Inputs VCCI-A · FCC-A · CE · UKCACompact 8-port 10/100M unmanaged industrial switching hub with wide 8–35 VDC...
Read full descriptionHide description
Compact 8-port 10/100M unmanaged industrial switching hub with wide 8–35 VDC input, dual power inputs for redundancy, reverse polarity protection, and auto-negotiation. Fan-less metal housing with DIN-rail mounting. Ideal for factory automation and industrial Ethernet networks.
Compact & Reliable
Industrial Networking

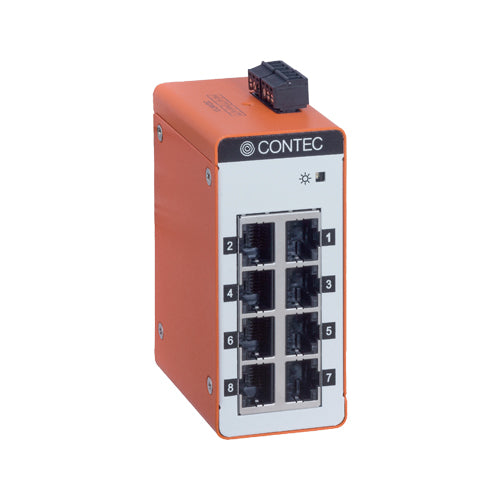

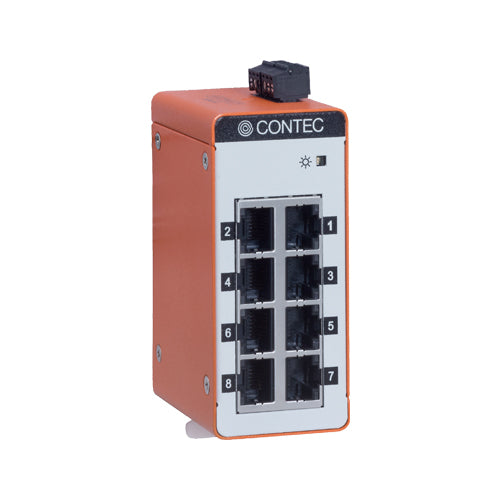

The SH-8008F is an unmanaged 8-port 10/100M switching hub designed for space-constrained industrial environments. Its compact metal housing (40 × 60 × 90 mm) and fan-less design enable installation in tight control cabinets. Auto-negotiation and Auto MDI/MDI-X simplify wiring, eliminating crossover cable concerns.
- Large footprint, limited mounting options
- Fan cooling requires airflow clearance
- Narrow temperature range (0–40°C)
- Single power input, no redundancy
- Ultra-compact 40×60×90 mm metal housing
- Fan-less, heat-dissipating metal shell
- -20 to +60°C operating temperature
- Dual power inputs with reverse polarity protection
Wide input voltage range (8–35 VDC) and dual power inputs — the switch continues to operate even if one power supply fails, ensuring high reliability in critical industrial applications. Reverse polarity protection prevents damage from wiring errors.
Built for Industrial
Environments
The SH-8008F is engineered for demanding factory and industrial conditions. Its rugged metal housing provides excellent heat dissipation, while the wide operating temperature range (-20 to +60°C) ensures reliable performance in harsh environments. The compact form factor enables installation in tight spaces.
-
Wide operating temperature — -20 to +60°C, suitable for factory floors and outdoor cabinets.
-
Compact dimensions — 40(W) × 60(D) × 90(H) mm, weight only 215g.
-

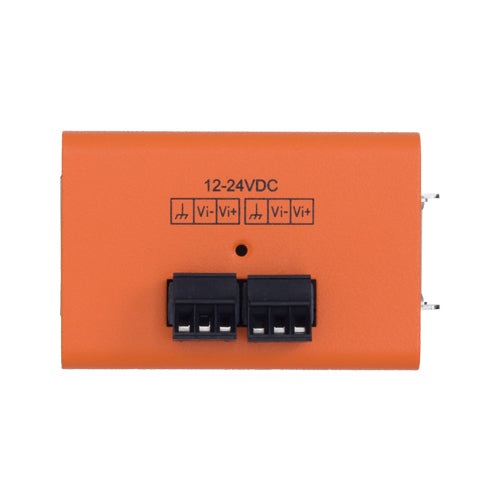

Dual power inputs — 8–35 VDC ±5% with FG pin, redundant operation.
-
Reverse polarity protection — prevents damage from incorrect wiring.
-

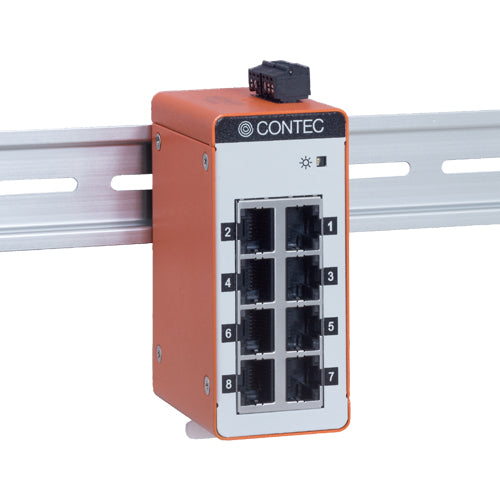

DIN-rail mounting — 35mm DIN-rail compatible for easy installation.
-
Vibration & shock resistance — 10–150Hz / 0.15mm (2G) vibration; 15G half-sine shock (IEC60068-2-6/-27).
Full Specifications
| Specification | Detail |
|---|---|
| Model | SH-8008F |
| Ethernet Standards | IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX) |
| Data Transfer Rate | 10 Mbps / 100 Mbps (auto-negotiation) |
| Communication Method | All ports: Full/Half duplex (auto-negotiation) |
| Number of Ports | 8 |
| Switching Method | Store and forward |
| Address Table | 1,024 entries |
| Buffer Capacity | 448 Kbits |
| Aging Time | 300 sec (Max) |
| Power Supply Voltage | 8 – 35 VDC ±5% |
| Current Consumption (Max) | 12V: 0.12A / 24V: 0.06A |
| Reverse Polarity Protection | Yes |
| Dimensions (W×D×H) | 40 × 60 × 90 mm (exclusive of protrusions) |
| Weight | 215g |
| Material | Metal shell |
| Mounting | 35mm DIN-rail |
| Protection | IP20 |
| Certifications | VCCI Class A, FCC Class A, UL, CE Marking (EMC, RoHS), UKCA |
Mounting & Installation
Options
The SH-8008F is designed for easy installation in industrial control cabinets. Its compact size and DIN-rail mounting capability allow flexible placement in space-constrained environments.
- 35mm DIN-rail compatible
- Quick snap-on installation
- Easy removal and replacement
- Space-efficient vertical mounting
- No moving parts for long life
- Silent operation
- Metal housing for excellent heat dissipation
- Ideal for noise-sensitive environments
Certifications and
Compliance
-
VCCI Class A — Japanese voluntary control for electromagnetic interference (industrial environments).
-
FCC Class A — U.S. emissions compliance for industrial use.
-
UL — Safety standards for the U.S. and Canada.
-
CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
-
UKCA — UK Conformity Assessed marking for UK market compliance.
-
IP20 Protection — Protection against solid objects >12.5mm.
Optional Accessories
| Part Number | Description | Use |
|---|---|---|
| POA201-10-2 | AC Adapter (Input 90–264 VAC, Output 12 VDC 1.0A) | Power supply via DC input |
Ready to expand your industrial network?
The SH-8008F is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, installation requirements, and integration with your industrial Ethernet infrastructure.
Taxes and shipping calculated at checkout.
Lead times may vary for products shipped from Japan:
Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
