Contact Sales Department for Pricing New DIO Series 16 In / 16 Out Opto-Isolated PCI Express Internal 12VDC Supply 12-24VDC I/O VCCI-A · CE · UKCA 16 opto-isolated inputs and 16 opto-isolated outputs on a low-profile PCI Express board. The DIO-1616B-LPE delivers 200µsec response, interrupt capability on all inputs, digital...
Verkäufer: Contec Americas
Artikelnummer: LRKS65
Verfügbarkeit: Auf Lager
Produkttyp: Accessory
📋

Datasheet

DIO-1616B-LPE

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
Description

New DIO Series 16 In / 16 Out Opto-Isolated PCI Express Internal 12VDC Supply 12-24VDC I/O VCCI-A · CE · UKCA

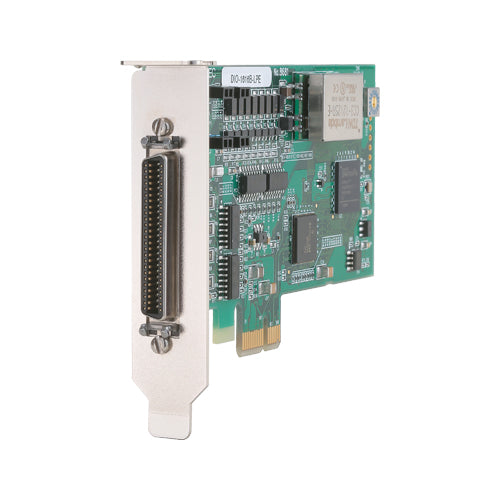

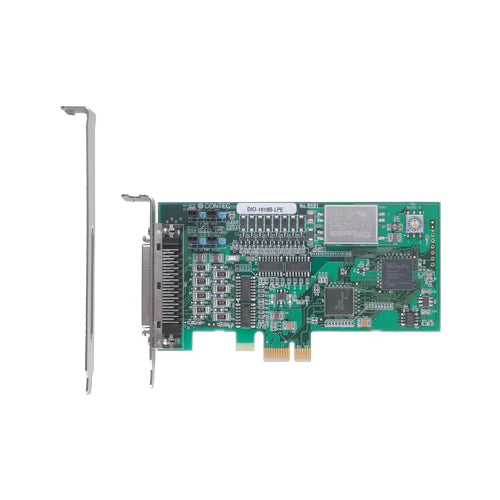

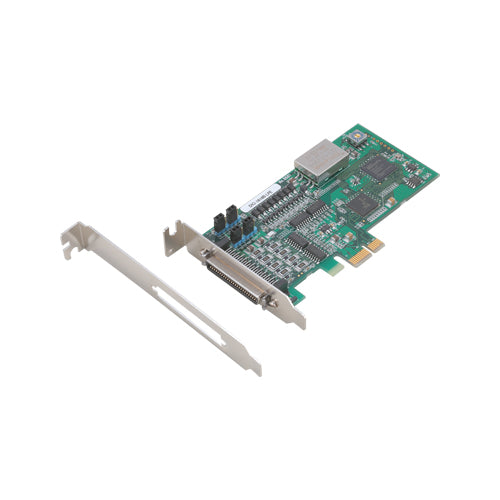

16 opto-isolated inputs and 16 opto-isolated outputs on a low-profile PCI Express board. The DIO-1616B-LPE delivers 200µsec response, interrupt capability on all inputs, digital filter, and selectable internal/external power supply. Functions are compatible with DIO-1616B-PE and PIO-16/16B(PCI)H.

16 / 16 Inputs / Outputs
200µs Response Time
12-24V I/O Driver Voltage
16 Interrupt Capable Inputs
Contec Americas · DIO Series
Low-Profile Isolated Digital I/O
DIO-1616B-LPE · 16ch In / 16ch Out · Internal/External Power
View Collection

High-Density Digital I/O
with Opto-Isolation

The DIO-1616B-LPE provides 16 opto-isolated inputs (compatible with current sink output) and 16 opto-isolated open-collector outputs (current sink type). A common terminal is provided per 16 channels, allowing different external power supplies per group. The board supports driver voltages of 12 – 24 VDC for I/O.

Input Section
  • 16 opto-isolated inputs (current sinking output)
  • 4.7kΩ input impedance
  • Turn ON current: ≥2.0mA
  • Turn OFF current: ≤0.16mA
  • All inputs usable as interrupts
Output Section
  • 16 opto-isolated open-collector (current sink)
  • Output rating: 35VDC max, 100mA/channel
  • Residual voltage: ≤0.5V @50mA, ≤1.0V @100mA
  • Surge protection: Zener diode
  • Overcurrent protection per 8 channels

Opto-coupler bus isolation — The PCI Express bus is isolated from the I/O interfaces, delivering excellent noise immunity for industrial environments.

Industrial-Grade Features
& Flexible Power Options

Engineered for reliability in factory automation, the DIO-1616B-LPE includes advanced protection and signal conditioning features with flexible power supply selection.

  • Digital filter — Prevents wrong recognition of input signals from noise or chattering. Software-configurable per channel.
  • Interrupt capability — All 16 input signals can be used as interrupt requests. Disable/enable per bit, select rising or falling edge trigger.
  • Surge voltage protection — Zener diodes connected to output circuits.
  • Overcurrent protection — Protection circuit provided per 8 output channels.
  • Internal or external power supply — 12VDC 240mA internal supply for opto-coupler operation; selectable via jumpers.
  • Low-profile and standard PCI support — Includes both brackets; interchangeable for use in any PCI Express slot.

Full Specifications

Specification Detail
Model DIO-1616B-LPE
Input Type Opto-isolated Input (for current sinking output) — Negative logic
Number of Input Channels 16ch — 1 common
Input Impedance 4.7kΩ
Input ON current 2.0mA or more
Input OFF current 0.16mA or less
Output Type Opto-isolated Open Collector Output (current sinking type) — Negative logic
Number of Output Channels 16ch — 1 common
Output Rated Voltage 35VDC (Max.)
Output Rated Current 100mA/channel (Max.)
Residual Voltage (ON) ≤0.5V (Io ≤50mA), ≤1.0V (Io ≤100mA)
Surge Protector Zener diode RD47FM(Resets) or equivalent
Response Time 200µsec within
Internal Power Supply 12VDC 240mA
Isolation Voltage 250Vrms
External Circuit Power Supply 12 – 24VDC (±10%)
Power Consumption (Internal) 3.3VDC 350mA, 12VDC 350mA
Power Consumption (External) 3.3VDC 350mA
PCI Express Specification PCI Express Base Spec Rev. 1.0a x1
Connector 50-Pin Mini-Ribbon connector (10250-52A2L or equivalent)
Dimensions (mm) 121.69(L) x 67.90(H)
Weight 55g
Operating Temperature 0 – +50°C
Operating Humidity 10 – 90%RH (No condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA

Software &
Operating System Support

The DIO-1616B-LPE includes comprehensive software support for Windows and Linux, enabling rapid application development.

Windows
  • API-DIO(WDM) device driver
  • Windows API functions
  • Sample programs: C#, VB.NET, C++, Python
  • Diagnostic program for hardware testing
Linux
  • API-DIO(LNX) shared library
  • Sample programs: gcc, C, C++, Python
  • Configuration tool for device settings
  • Diagnostic utilities

Software development kits (SDKs) and additional support software are available for download from the CONTEC website to simplify integration.

Optional Accessories

Product Name Model Description
Shield Cable (50-Pin Mini-Ribbon, Both Ends) PCB50PS-05P / -15P / -3P 0.5m / 1.5m / 3m
Shield Cable (50-Pin Mini-Ribbon, One End) PCA50PS-05P / -15P / -3P 0.5m / 1.5m / 3m
Connection Conversion Shield Cable (50P Ribbon → 37P D-SUB) PCE50/37PS-05P 0.5m
Screw Terminal (M3 * 50P) EPD-50A Spring-up type
Screw Terminal (M3 * 37P) EPD-37A Spring-up type
General Purpose Terminal DTP-3C / DTP-4C —
Signal Monitor (32bits) CM-32L —

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial/industrial).
  • CE Marking — EMC Directive Class A, RoHS Directive. European conformity.
  • UKCA — UK Conformity Assessed marking for UK market.

Ready to integrate isolated digital I/O?

The DIO-1616B-LPE is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your PCI Express system.
