Contact Sales Department for Pricing New CONPROSYS nano CODESYS Soft PLC Modbus Master 4 Expansion Slots -20 to +60°C No Electrolytic Capacitors VCCI-A · FCC-A · CE · UKCA CONPROSYS nano CPU unit with CODESYS Soft PLC and Modbus Master functionality. The CPSN-PCB271-S1-041 features 4 expansion slots for flexible I/O...
Verkäufer: Contec Americas
Artikelnummer: LRKW001
Verfügbarkeit: 10 Auf Lager
Produkttyp: Accessory
$126.60 USD
$126.60 USD
Zwischensumme: $126.60 USD
📋

Datasheet

CPSN-PCB271-S1-041

Download PDF

Kostenloser Versand

Kostenloser Standardversand für Bestellungen über 500 $

Sichere Zahlungen

PCI-DSS-konforme Verarbeitung

Die Preise können sich je nach geltenden Tarifen ändern.

Die Preise können sich aufgrund der geltenden Zölle und Einfuhrzölle ändern. Wir werden den Kunden vor der Auftragsbestätigung über etwaige Preisänderungen informieren.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Beschreibung

New CONPROSYS nano CODESYS Soft PLC Modbus Master 4 Expansion Slots -20 to +60°C No Electrolytic Capacitors VCCI-A · FCC-A · CE · UKCA

CONPROSYS nano CPU unit with CODESYS Soft PLC and Modbus Master functionality. The CPSN-PCB271-S1-041 features 4 expansion slots for flexible I/O configuration, RS-232C serial communication up to 921,600 bps, LAN, USB, and microSD storage. Wide temperature range (-20 to +60°C) and no electrolytic capacitors for extended life.

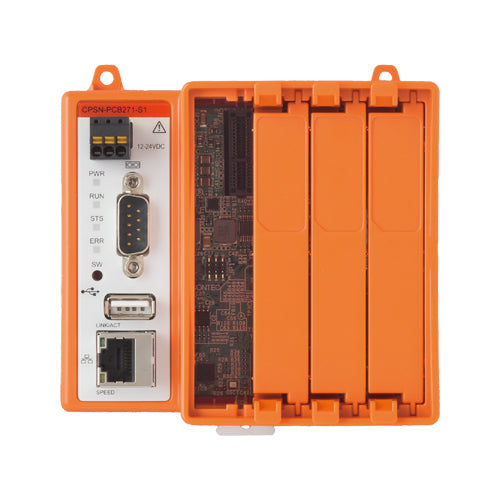

4 Expansion Slots
921.6k Max Baud Rate (bps)
-20/+60 Operating Temperature (°C)
32kB FeRAM Memory
Contec Americas · CONPROSYS nano
CODESYS Modbus Master CPU Unit
CPSN-PCB271-S1-041 · 4 Slots · RS-232C · LAN · USB
View Collection

CODESYS Soft PLC
& Modbus Master

The CPSN-PCB271-S1-041 is a CONPROSYS nano CPU unit featuring CODESYS Soft PLC programming (IEC 61131-3 compliant) supporting all standard languages including ST and LD. It includes Modbus TCP Master and Modbus RTU Master functionality for data collection from devices with Modbus Slave functions.

CPU & Memory
  • ARM Cortex-M3 180MHz
  • 16MB SDRAM (On Board)
  • 4MB NOR Flash for OS
  • 32kB FeRAM for data storage
  • microSD card slot for data storage
Interfaces & Expansion
  • RS-232C (9-pin D-SUB, male)
  • LAN 10BASE-T/100BASE-TX
  • USB 2.0 port (Type-A)
  • 4 expansion slots for I/O modules
  • RTC with 10+ year backup battery

CODESYS collaboration — Device-independent PLC programming system compliant with IEC 61131-3, supporting all standard programming languages.

Industrial-Grade Design
& Flexible Installation

Built for demanding industrial environments, the CPSN-PCB271-S1-041 features a wide operating temperature range, robust noise immunity, and flexible mounting options.

  • Wide temperature range — Operating -20 to +60°C (vertical installation), -20 to +55°C (horizontal/angled).
  • No electrolytic capacitors — Extended product life by eliminating limited-life components.
  • Vibration and shock resistance — IEC60068-2-6 and IEC60068-2-27 compliant.
  • DIN rail or screw mounting — Quick installation on 35mm DIN rail or vertical installation with screws.

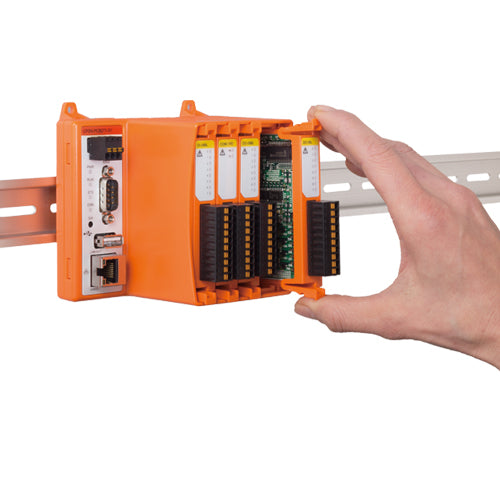

  • Tool-less I/O module installation — Easy installation and removal without tools.
  • Status LEDs — PWR, RUN, STS, ERR for visual operation confirmation.

Full Specifications

Specification Detail
Model CPSN-PCB271-S1-041
CPU ARM Cortex-M3 180MHz
Memory On Board 16MB SDRAM
ROM On-Board 4MB NOR Flash for OS
FeRAM On-Board 32kB
LAN 10BASE-T/100BASE-TX, 1 port, RJ-45
USB USB 2.0, 1 port, Type-A
RS-232C 1ch, 110 - 921,600 bps, 9-pin D-SUB (Male)
Expansion Slots 4 slots, max 50 insertions/removals
RTC Monthly error ±15 seconds or less (25°C), 10+ year backup
Rated Input Voltage 12 - 24VDC
Input Voltage Range 10.8 - 30VDC
Power Consumption (CPU only) 24V 0.08A (Typ), 0.1A (Max) / 12V 0.15A (Typ), 0.2A (Max)
Power Consumption (Max with I/O) 24V 1.5A (Max), 12V 2.0A (Max)
Dimensions (mm) 110(W) x 74.8(D) x 95(H)
Weight 250g
Installation DIN rail (35mm) or screw mounting
Certifications VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA, ISED

I/O Module Expansion
& Compatibility

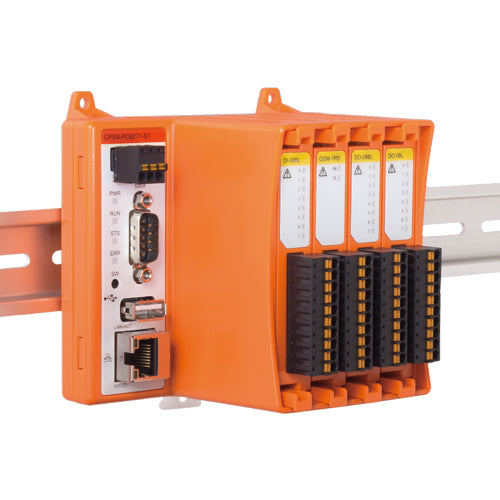

The CPSN-PCB271-S1-041 supports a wide range of CONPROSYS nano series I/O modules, allowing you to configure the system exactly to your application needs.

Digital I/O Modules
  • DI-08L (8ch isolated digital input)
  • DI-08BL (8ch with built-in power)
  • DI-16BCL (16ch digital input)
  • DO-08L / DO-08BL (8ch output)
  • DO-16L / DO-16BL (16ch output)
  • DIO-08SL (8in / 8out)
  • RRY-4PCA (4ch relay output)
Analog & Specialty Modules
  • AI-1208LI (12-bit analog input)
  • AI-1604LI (16-bit analog input)
  • AI-2408LI (24-bit analog input)
  • AO-1204LI / AO-1602LC (analog output)
  • CNT-3201I (32-bit counter input)
  • COM-1PD (isolated RS-422A/485)
  • SSI-4C (isolated thermocouple input)

Total power budget — The CPU unit plus connected I/O modules and USB devices must stay within the total power budget. Use the provided power consumption table to calculate your system's requirements.

Optional Accessories

Product Name Model Description
DIN Rail Power Supply CPS-PWD-30AW24-01 30W (Input: 100-240VAC, Output: 12VDC 1.3A)
DIN Rail Power Supply CPS-PWD-90AW24-01 90W (Input: 100-240VAC, Output: 12VDC 3.8A)
I/O Module (Digital Input) CPSN-DI-08L 8ch isolated digital input
I/O Module (Digital Output) CPSN-DO-08L 8ch isolated digital output
I/O Module (Analog Input) CPSN-AI-1208LI 12-bit analog input
I/O Module (Analog Output) CPSN-AO-1204LI 12-bit analog output
I/O Module (Counter) CPSN-CNT-3201I 32-bit counter input
I/O Module (Serial) CPSN-COM-1PD Isolated RS-422A/485 serial communication

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial/industrial).
  • FCC Class A — U.S. emissions compliance for industrial use environments.
  • CE Marking — EMC Directive Class A, RoHS Directive. European conformity.
  • UKCA — UK Conformity Assessed marking for UK market.
  • ISED — Innovation, Science and Economic Development Canada.

Ready to build your CONPROSYS nano system?

The CPSN-PCB271-S1-041 is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, I/O module configuration, and integration with your automation application.
