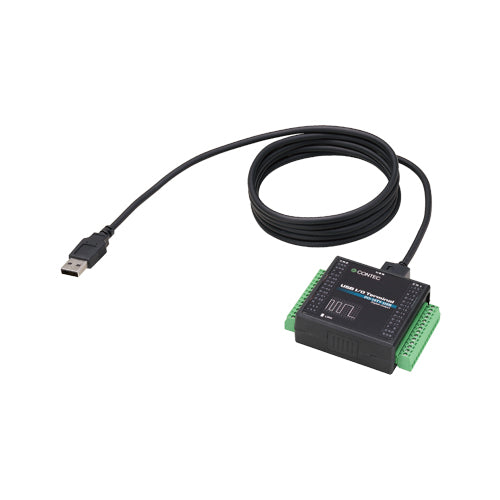

DO-16TY2-USB

DO-16TY2-USB

Contact Sales Department for Pricing New USB2.0 16-Channel Digital Output Open-Collector 28VDC / 40mA Bus Powered VCCI-A · FCC-A · CE · UKCA 16‑channel open‑collector digital output for USB. The DO‑16TY2‑USB delivers 200µsec response, 28VDC/40mA per channel, and surge protection. Bus‑powered, compact, and equipped with easy‑wire terminal connectors. Windows/Linux drivers...
Verkäufer: Contec Americas
Artikelnummer: LRLS481
Verfügbarkeit: 2 Auf Lager
Produkttyp: Accessory
$73.02 USD
$73.02 USD
Zwischensumme: $73.02 USD
📋

Datasheet

DO-16TY2-USB

Download PDF

Kostenloser Versand

Kostenloser Standardversand für Bestellungen über 500 $

Sichere Zahlungen

PCI-DSS-konforme Verarbeitung

Die Preise können sich je nach geltenden Tarifen ändern.

Die Preise können sich aufgrund der geltenden Zölle und Einfuhrzölle ändern. Wir werden den Kunden vor der Auftragsbestätigung über etwaige Preisänderungen informieren.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Beschreibung

New USB2.0 16-Channel Digital Output Open-Collector 28VDC / 40mA Bus Powered VCCI-A · FCC-A · CE · UKCA

16‑channel open‑collector digital output for USB. The DO‑16TY2‑USB delivers 200µsec response, 28VDC/40mA per channel, and surge protection. Bus‑powered, compact, and equipped with easy‑wire terminal connectors. Windows/Linux drivers included. From Contec Americas.

16 Digital Outputs
200µs Response Time
28 VDC Max Output
Bus Powered
Contec Americas · USB I/O
DO‑16TY2‑USB
16‑Ch Open‑Collector Output · 28VDC · Bus Powered
View Collection

High‑Speed Open‑Collector
Digital Output

The DO‑16TY2‑USB is a USB2.0 bus‑powered terminal that adds 16 channels of high‑speed open‑collector digital output to any PC. With a 200µsec response time and 28VDC/40mA per channel, it is ideal for driving relays, LEDs, solenoids, and other low‑power loads. The unit features surge protection on all output lines and easy‑wire terminal connectors.

Digital Output
  • 16 open‑collector outputs
  • 200µsec response time
  • 28VDC max, 40mA per channel
  • Surge protection diodes
  • Bus‑powered (no external power)
Key Features
  • USB2.0 / USB1.1 compatible
  • High‑speed (480 Mbps) transfer
  • Screw terminal connectors
  • Rotary switch ID setting
  • Windows/Linux drivers

Open‑collector outputs – each output must be pulled up at the external device (no internal pull‑up). Surge absorption diodes protect against voltage spikes when driving inductive loads.

Compact & Bus‑Powered
USB Design

Designed for portability and ease of integration. The DO‑16TY2‑USB is powered directly from the USB bus – no external power supply required. Its compact form factor (64×62×24 mm) and screw‑type terminal connectors simplify wiring in benchtop and industrial setups.

  • USB2.0 / USB1.1 compatible — High‑speed (480 Mbps) and full‑speed (12 Mbps) transfer.
  • Bus powered — No external power needed. Consumes 5VDC 300mA (max).
  • Screw terminal connector — Easy wiring with supplied connector plugs.
  • Surge protection — Surge absorption diodes on all output lines protect against voltage spikes.
  • Individual recognition — Rotary switch for device ID setting when multiple units are connected.

Full Specifications

Specification Detail
Model DO-16TY2-USB
Output type Open‑collector (negative logic)
Output channels 16 channels
Output rated voltage 28 VDC (max)
Output rated current 40 mA per channel (max)
Surge protector Surge absorption diodes
Response time 200µsec within
+5V output section 4.75 – 5.25V, 100mA max
USB specification USB 2.0 / 1.1, Full‑speed / High‑speed
Power supply Bus power (5VDC 300mA max)
Dimensions (mm) 64(W) × 62(D) × 24(H) (excl. protrusions)
Weight 70g (without cable)
Operating temperature 0 – 50°C
Operating humidity 10 – 90%RH (no condensation)
Standards VCCI Class A, FCC Class A, CE (EMC Class A, RoHS), UKCA
Included items Product, interface connector plugs (2), USB cable 1.8m, cable attachment, manual
Datasheet version As of December 2025

Optional Accessories

Product Name Model Note
14‑pin Screw Terminal Connector Set CN6-Y14 6 pieces
Bracket for USB I/O Terminal products BRK-USB-Y Mounting bracket

Visit the CONTEC website for the latest optional products.

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial/industrial environments).
  • FCC Class A — U.S. emissions compliance for industrial use environments.
  • CE (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking for UK market compliance.

Ready to add high‑speed digital output via USB?

The DO‑16TY2‑USB is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your control systems.

Tags DO-16TY2-USB USB Digital Output Open-Collector Output 16-Channel Digital Output USB Control Contec USB I/O Bus Powered Industrial Automation Relay Driver LED Driver Windows Driver Linux Driver
