New PIO Series 16 In / 16 Out Opto-Isolated Low Profile / Standard Internal Power Supply 12-24VDC I/O VCCI-A · CE · UKCA

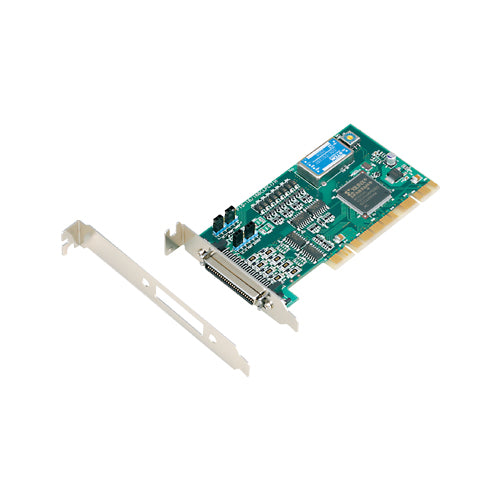

16 opto-isolated inputs and 16 opto-isolated outputs on a single low-profile PCI board. The PIO-16/16B(LPCI)H delivers 200µsec response, interrupt capability on all inputs, digital filter, and selectable internal/external power supply. Includes both low-profile and standard brackets.

16 / 16 Inputs / Outputs
200µs Response Time
12-24V I/O Driver Voltage
16 Interrupt Capable Inputs
Contec Americas · PIO Series
Low-Profile Isolated Digital I/O
PIO-16/16B(LPCI)H · 16ch In / 16ch Out · Internal/External Power
View Collection

High-Density Digital I/O
with Opto-Isolation

The PIO-16/16B(LPCI)H provides 16 opto-isolated inputs (compatible with current sink output) and 16 opto-isolated open-collector outputs (current sink type). A common terminal is provided per 16 channels, allowing different external power supplies per group. The board supports driver voltages of 12 – 24 VDC for I/O.

Input Section
  • 16 opto-isolated inputs (current sinking output)
  • 4.7kΩ input impedance
  • Turn ON current: ≥2.0mA
  • Turn OFF current: ≤0.16mA
  • All inputs usable as interrupts
Output Section
  • 16 opto-isolated open-collector (current sink)
  • Output rating: 35VDC max, 100mA/channel
  • Residual voltage: ≤0.5V @50mA, ≤1.0V @100mA
  • Surge protection: Zener diode
  • Overcurrent protection per 8 channels

Opto-coupler bus isolation separates the PCI bus from the I/O interfaces, delivering excellent noise immunity for industrial environments.

Industrial-Grade Features
& Flexible Power Options

Engineered for reliability in factory automation, the PIO-16/16B(LPCI)H includes advanced protection and signal conditioning features with flexible power supply selection.

  • Digital filter — Prevents wrong recognition of input signals from noise or chattering.
  • Interrupt capability — All 16 input signals can be used as interrupt requests. Select rising or falling edge trigger.
  • Surge voltage protection — Zener diodes (RD47FM or equivalent) connected to output circuits.
  • Overcurrent protection — PolySwitch-based protection circuit per 8 output channels.
  • Internal or external power supply — On-board optocoupler driving power supply; selectable via jumper.
  • Low-profile and standard PCI support — Interchangeable bracket included for both slot types.

Full Specifications

Specification Detail
Model PIO-16/16B(LPCI)H
Input Type Opto-isolated Input (for current sinking output) — Negative logic
Number of Input Channels 16ch (all available for interrupts) — 1 common
Input Impedance 4.7kΩ
Input ON current 2.0mA or more
Input OFF current 0.16mA or less
Output Type Opto-isolated Open Collector Output (current sinking type) — Negative logic
Number of Output Channels 16ch — 1 common
Output Rated Voltage 35VDC (Max.)
Output Rated Current 100mA/channel (Max.)
Residual Voltage (ON) ≤0.5V (Io ≤50mA), ≤1.0V (Io ≤100mA)
Surge Protector Zener diode RD47FM(NEC) or equivalent
Response Time 200µsec within
Dielectric Strength 1000Vrms
External Circuit Power Supply 12 – 24VDC (±10%)
Built-in Power Supply 12VDC 250mA
Power Consumption 5VDC 600mA (Max.) (internal) / 5VDC 150mA (Max.) (external)
PCI Bus Specification 32-bit, 33MHz, Universal key (requires +5V)
Dimensions (mm) 121.69(L) x 63.41(H)
Weight 60g
Operating Temperature 0 – 50°C
Operating Humidity 10 – 90%RH (No condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA

Software &
Operating System Support

The PIO-16/16B(LPCI)H includes comprehensive software support for Windows and Linux, enabling rapid application development.

Windows
  • API-PAC(W32) driver library
  • Win32 API functions (DLL)
  • Sample programs: Visual Basic, Visual C++
  • Diagnostic program for hardware testing
Linux & LabVIEW
  • API-DIO(LNX) shared library
  • Sample programs: gcc, C, C++, Python
  • VI-DAQ for LabVIEW
  • Configuration tool for device settings

Software development kits and additional support software are available for download from the CONTEC website to simplify integration.

Optional Accessories

Product Name Model Description
Shield Cable with Two 50-Pin Mini-Ribbon Connectors PCB50PS-0.5P / -1.5P / -3P / -5P 0.5m / 1.5m / 3m / 5m
Shield Cable with One 50-Pin Mini-Ribbon Connector PCA50PS-0.5P / -1.5P / -3P / -5P 0.5m / 1.5m / 3m / 5m
Connection Conversion Shield Cable (50-Pin Ribbon → 37-Pin D-SUB) PCE50/37PS-0.5P 0.5m
Screw Terminal Unit (M3, 50 points) EPD-50A Spring-up type
Screw Terminal Unit (M3, 37 points) EPD-37A Spring-up type
Termination Panel (M3) DTP-3C —
Signal Monitor for Digital I/O (32bit) CM-32L —

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (commercial/industrial).
  • CE Marking — EMC Directive Class A, RoHS Directive. European conformity.
  • UKCA — UK Conformity Assessed marking for UK market.

Ready to integrate isolated digital I/O?

The PIO-16/16B(LPCI)H is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, accessories, and integration with your PCI system.
