Contact Sales Department for Pricing New SH-9000 Series Flat-Type Gigabit Switch 5-Port 1000BASE-T Fan-less Design 8-54 VDC Input Dual Power Inputs VCCI-A · FCC-A · CE · UKCA · UL Flat-type 5-port Gigabit (1000BASE-T) industrial unmanaged switching hub with a space-saving 50 × 110 × 25 mm design. Features wide...
Verkäufer: Contec Americas Inc.
Artikelnummer: LRLS55
Verfügbarkeit: Auf Lager
Produkttyp: Network
$0.00 USD
$0.00 USD
Zwischensumme: $0.00 USD
📋

Datasheet

SH-9005FT

Download PDF

Kostenloser Versand

Kostenloser Standardversand für Bestellungen über 500 $

Sichere Zahlungen

PCI-DSS-konforme Verarbeitung

Die Preise können sich je nach geltenden Tarifen ändern.

Die Preise können sich aufgrund der geltenden Zölle und Einfuhrzölle ändern. Wir werden den Kunden vor der Auftragsbestätigung über etwaige Preisänderungen informieren.

Lead times may vary for products shipped from Japan:

Products sourced from Japan may take between 4 to 5 weeks to arrive. We will provide updated shipping timelines upon order confirmation.
Beschreibung

New SH-9000 Series Flat-Type Gigabit Switch 5-Port 1000BASE-T Fan-less Design 8-54 VDC Input Dual Power Inputs VCCI-A · FCC-A · CE · UKCA · UL

Flat-type 5-port Gigabit (1000BASE-T) industrial unmanaged switching hub with a space-saving 50 × 110 × 25 mm design. Features wide 8–54 VDC input, dual power inputs for redundancy, fan-less metal housing, and -40 to +70°C operation. DIN-rail and wall mounting options. Ideal for high-speed industrial networks in tight enclosures.

5 Gigabit Ports
8–54 VDC Input Range
250g Unit Weight
-40 to +70°C Operating Temp
Contec Americas · SH-9000 Series
Flat-Type Gigabit Switch
SH-9005FT · 5 Ports · 8-54 VDC · Flat Design · DIN-Rail / Wall
View Collection

Flat-Type Design &
Industrial Reliability

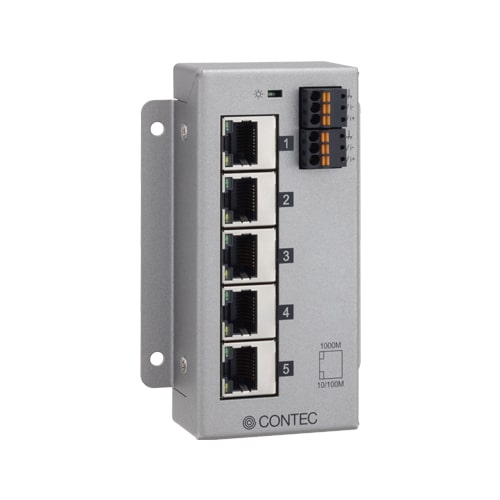

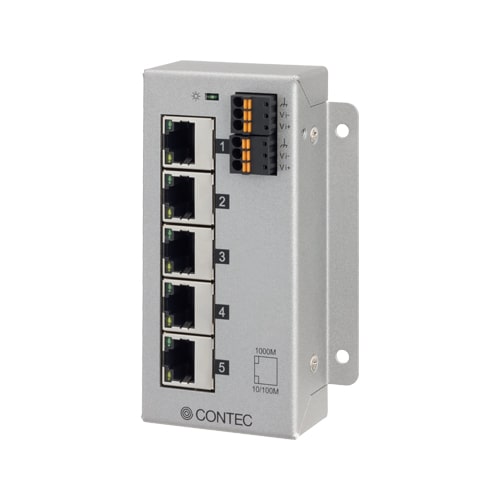

The SH-9005FT is a flat-type 5-port Gigabit (1000BASE-T) industrial switching hub designed for space-constrained installations. Its ultra-slim 50 × 110 × 25 mm metal housing enables efficient wiring in tight enclosures. Auto-negotiation and Auto MDI/MDI-X simplify cabling, while jumbo frame support (9K byte) optimizes large data transfers.

Standard Office Switch
  • Bulky design, limited mounting options
  • Fan cooling requires airflow clearance
  • Narrow temperature range (0–40°C)
  • Single power input, no redundancy
SH-9005FT Advantages
  • Flat-type 50×110×25 mm metal housing
  • Fan-less, heat-dissipating metal shell
  • -40 to +70°C operating temperature
  • Dual power inputs (8-54 VDC) with reverse polarity protection

Wide input voltage range (8–54 VDC) and dual power inputs — the switch continues to operate even if one power supply fails, ensuring high reliability in critical industrial applications. Reverse polarity protection prevents damage from wiring errors.

Built for Extreme
Environments

The SH-9005FT is engineered for demanding industrial conditions. Its flat-type metal housing provides excellent heat dissipation, while the extended operating temperature range (-40 to +70°C) ensures reliable performance in extreme environments. The compact, slim design enables installation in shallow control cabinets and tight spaces.

  • Extended operating temperature — -40 to +70°C, suitable for harsh factory floors, outdoor cabinets, and cold storage.
  • Flat-type dimensions — 50(W) × 110(H) × 25(D) mm, weight only 250g.
  • Dual power inputs — 8–54 VDC ±5% with FG pin, redundant operation.
  • Jumbo frame support — 9K byte frame size for efficient large data transfers.
  • DIN-rail or wall mounting — includes brackets for 35mm DIN-rail or wall installation.
  • Shock resistance — 15G half-sine shock (IEC60068-2-27).

Full Specifications

Specification Detail
Model SH-9005FT
Ethernet Standards IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
Data Transfer Rate 1000 Mbps / 100 Mbps / 10 Mbps (auto-negotiation)
Communication Method All ports: Full/Half duplex (auto-negotiation)
Number of Ports 5
Switching Method Store and forward
Address Table 2,048 entries
Jumbo Frame 9K byte
Buffer Capacity 1 Mbyte
Aging Time 300 sec (Max.)
Power Supply Voltage 8 – 54 VDC ±5%
Current Consumption (Max) 8V: 0.39A / 54V: 0.06A
Dimensions (W×H×D) 50 × 110 × 25 mm (exclusive of protrusions)
Weight 250g
Mounting 35mm DIN-rail or wall
LED Indicators POWER (Green), 1000M LINK/ACT (Green), 100M/10M LINK/ACT (Yellow)

Mounting & Installation
Options

The SH-9005FT offers flexible mounting options for diverse industrial environments. The included brackets enable quick installation on 35mm DIN-rails or on walls, making it suitable for control cabinets, equipment racks, and distributed network installations.

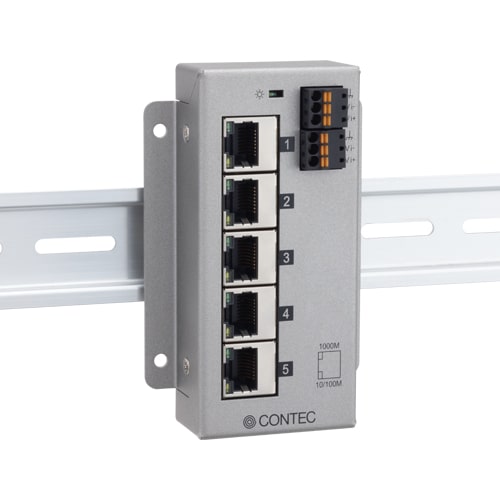

DIN-Rail Mount
  • 35mm DIN-rail compatible bracket included
  • Quick snap-on installation
  • Ideal for control cabinets
  • Space-efficient vertical mounting
Wall Mount
  • Wall bracket included (M3 screw holes)
  • Secure fixed installation
  • Flat design enables low-profile wall mounting
  • Suitable for distributed deployments

Certifications and
Compliance

  • VCCI Class A — Japanese voluntary control for electromagnetic interference (industrial environments).
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE Marking (EMC Directive Class A, RoHS Directive) — European conformity for electromagnetic compatibility and restriction of hazardous substances.
  • UKCA — UK Conformity Assessed marking for UK market compliance.
  • UL — Safety standards for the U.S. and Canada.
  • Grounding — Class D grounding, SG-FG/non-conductive.

Optional Accessories

Part Number Description Use
POA201-10-2 AC Adapter (Input 90–264 VAC, Output 12 VDC 1.0A) Power supply via DC input
SH-ON-P1 Power extension connector (100mm) Power connection extension

Ready to upgrade to flat-type Gigabit industrial networking?

The SH-9005FT is available through Contec Americas on a quote basis. Contact our sales team to discuss quantity, installation requirements, and integration with your industrial Ethernet infrastructure.

Tags SH-9005FT SH-9000 Series Flat-Type Switch Gigabit Switch 5 Port Switch Industrial Gigabit Switch 1000BASE-T DIN-Rail Switch Industrial Ethernet Contec Networking Factory Automation Fan-less Switch Dual Power Input Wide Temperature Jumbo Frame
