Industrial motherboards built for long lifecycles.
ATX, Micro-ATX, Mini-ITX and compact SBCs with embedded Intel, AMD and ARM processors, ready for 24/7 industrial, medical and edge systems.
Long-term availability
Embedded CPU options and revision control for stable supply
Engineering support
Help selecting, configuring and customizing your board
Free Shipping
Free standard shipping on U.S. orders of $500 or more.
- 1Boards in the lineup
- 7Form factors
- 0–60 °COperating range
Supported platformsIntel 8th–9th Gen Coffee LakeIntel 10th Gen Comet LakeIntel Xeon W-1200EIntel 11th Gen Tiger LakeIntel 12th–14th Gen Alder / Raptor LakeBartlett Lake-SIntel Elkhart LakeIntel Apollo LakeAMD Ryzen 9000 (Zen 5)ARM Cortex-A55 / A53
Find your form factor
From full-size ATX to compact SBCs
Every tile lists the boards currently in the catalog. Pick a model to see full specs and datasheets.
ATX
305 × 244 mmMaximum expansion with up to 7 PCIe / PCI slots, for automation controllers and multi-card systems.
Micro-ATX
244 × 244 mm
Balanced expansion in a smaller footprint for compact industrial PCs.
Mini-ITX
170 × 170 mmSocketed desktop CPUs or low-power SoCs in a compact 170 mm board.
3.5" SBC
146 × 102 mmSingle board computers with 12–24 VDC input and 0–60 °C operation.
Pico-ITX
100 × 72 mmIntel 11th Gen Tiger Lake performance on a 2.5" board.
PICMG 1.3
338 × 126 mmFull-size SBCs for backplane systems and legacy PCI retrofits.
SMARC & COM Express
Modules and carriersARM SMARC modules and a COM Express Type 6 carrier kit for custom designs.
Industries
Industries that run on Contec motherboards
Our boards power equipment where downtime and redesigns are not an option.
Factory automation
Machine control, production monitoring and MES terminals.
See use case
Medical & healthcare
Diagnostic, imaging and patient-side equipment.
See use case
Transportation
In-vehicle, rail and wayside systems on DC power.
See use case
Edge computing & AI
Vision inspection and AI inference close to the data.
See use case
Retail & digital signage
Kiosks, POS and signage players.
See use case
Additive manufacturing
3D printers and motion controllers.
See use case
Use cases
How industries put our motherboards to work
Example applications and the boards we typically recommend for them.
Factory automation

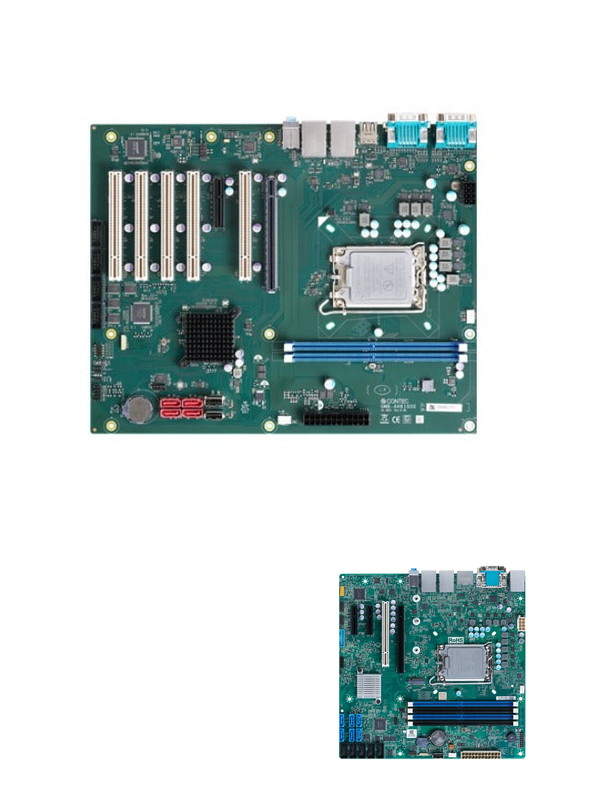

Machine control & production monitoring
- Challenge
- Line controllers run 24/7 for years and still need legacy I/O cards next to new high-speed ones.
- Contec solution
- GMB-AQ67010 ATX board with Intel 12th–14th Gen embedded CPUs, 6x COM and seven expansion slots from PCIe Gen5 x16 down to PCI.
- Why it fits
- One board drives motion, I/O and vision cards, with TPM 2.0 and a stable embedded CPU supply path.
Medical & healthcare
Diagnostic and imaging equipment
- Challenge
- Regulated devices are costly to requalify, so the compute platform must stay unchanged and protect data integrity.
- Contec solution
- GMB-AW48000 ATX board with Intel Xeon W-1290E on the W480E chipset and ECC memory support.
- Why it fits
- ECC memory guards against silent data corruption and embedded-class CPUs keep the design available for the device lifecycle.
Edge computing & AI
AI vision inspection at the edge
- Challenge
- Inspection cells need GPU or accelerator cards, plenty of memory and fast camera links right at the line.
- Contec solution
- GMB-AB65000 ATX board with AMD Ryzen 9000 (Zen 5), PCIe Gen5 x16, up to 128GB DDR5 ECC and 2x 2.5GbE.
- Why it fits
- Gen5 bandwidth for accelerators and ECC DDR5 for long-running inference workloads.
Transportation

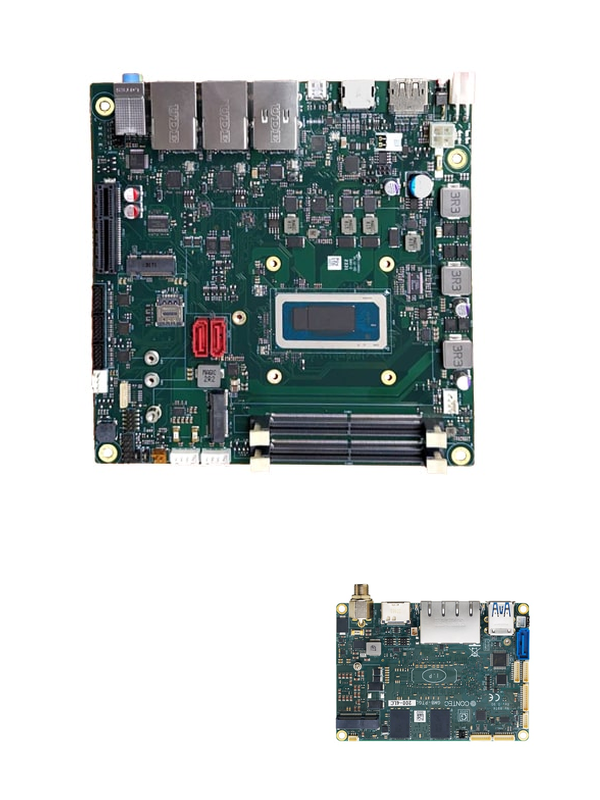

In-vehicle and wayside computing
- Challenge
- Vehicle and trackside systems face unstable DC power, tight enclosures and several networks.
- Contec solution
- GMB-IRPL Mini-ITX SBC with Intel 13th Gen Raptor Lake-P, 9–36 VDC input and three LAN ports (2x 2.5GbE + 1x GbE).
- Why it fits
- Wide DC input and a compact footprint without giving up multi-network connectivity.
Retail & digital signage
Kiosks and signage players
- Challenge
- Self-service terminals and displays need small, cool-running boards that run unattended.
- Contec solution
- GMB-L3TGL 3.5" SBC with Intel 11th Gen Tiger Lake UP3, 12–24 VDC input and 0–60 °C operation.
- Why it fits
- Desktop-class graphics performance in a 146 × 102 mm board that fits slim enclosures.
Additive manufacturing
3D printer and motion controllers
- Challenge
- Printers and motion systems need reliable, low-power control boards with industrial I/O.
- Contec solution
- GMB-IEHL210 Mini-ITX board with a quad-core Intel Celeron J6413 (Elkhart Lake) SoC.
- Why it fits
- Low power draw and embedded-class silicon for controllers that run around the clock.
Engineered for industry
What every Contec board brings
Embedded CPUs for stable supply
Embedded-type processors (E / TE / RE SKUs) are produced for extended availability, so qualified designs avoid forced redesigns.
TPM 2.0 on board
Hardware encryption for secure communication between systems, the edge and the cloud.
ECC memory support
DDR4 and DDR5 ECC options up to 128GB correct single-bit errors before they become silent data corruption.
Industrial operating range
0 to 60 °C operation, -40 to 80 °C storage and wide 9–36 VDC or 12–24 VDC input on SBC models.
Watchdog and hardware monitor
Programmable watchdog timer plus voltage, fan speed and temperature monitoring for unattended systems.
AMI UEFI BIOS
Industrial BIOS with customization available for OEM programs, plus rich serial, GPIO and multi-display I/O.
Showing 1–1 of 1 product
Contec Americas Inc. In stock

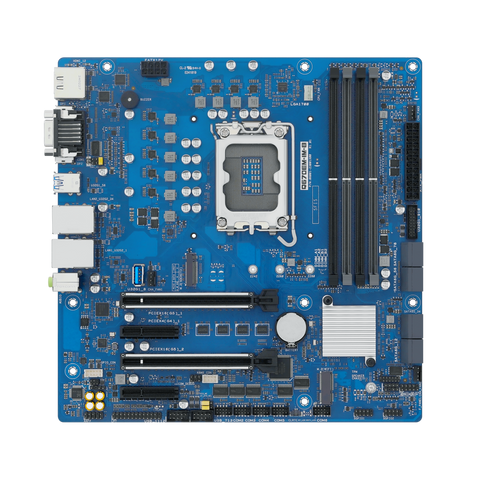

GMB-MQ67010 Industrial Motherboard / Micro-ATX / Intel 14th Gen (Raptor Lake-S + Q670E) / 2x PCIe (x16) / 2x PCIe (x4)
The GMB-MQ67010 motherboard is designed with an LGA1700 socket that is compatible with 12th, 13th, and 14th Gen Intel® Core™ processors. This Micro-ATX motherboard not only offers superior...
Talk to us
Need a custom board or BIOS?
Tell us about your application and a Contec engineer will help you select, configure and quote the right board.
