Industrial motherboards built for long lifecycles.

ATX, Micro-ATX, Mini-ITX and compact SBCs with embedded Intel, AMD and ARM processors, ready for 24/7 industrial, medical and edge systems.

Browse boardsRequest a quote
Industrial motherboards built for long lifecycles.

Long-term availability

Embedded CPU options and revision control for stable supply

Engineering support

Help selecting, configuring and customizing your board

Free Shipping

Free standard shipping on U.S. orders of $500 or more.

→
  • 24Boards in the lineup
  • 7Form factors
  • 0–60 °COperating range
Supported platformsIntel 8th–9th Gen Coffee LakeIntel 10th Gen Comet LakeIntel Xeon W-1200EIntel 11th Gen Tiger LakeIntel 12th–14th Gen Alder / Raptor LakeBartlett Lake-SIntel Elkhart LakeIntel Apollo LakeAMD Ryzen 9000 (Zen 5)ARM Cortex-A55 / A53

Find your form factor

From full-size ATX to compact SBCs

Every tile lists the boards currently in the catalog. Pick a model to see full specs and datasheets.

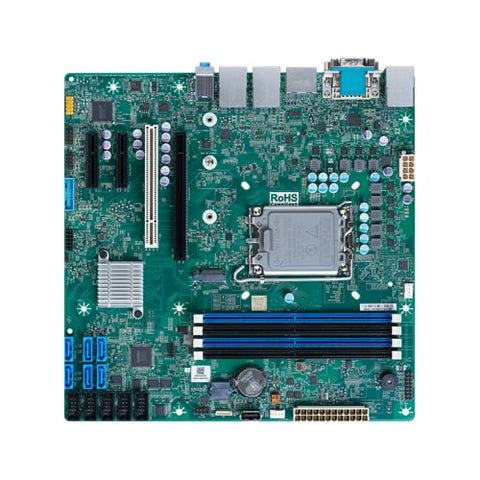

Micro-ATX

244 × 244 mm
2

Balanced expansion in a smaller footprint for compact industrial PCs.

3.5" SBC

146 × 102 mm
2

Single board computers with 12–24 VDC input and 0–60 °C operation.

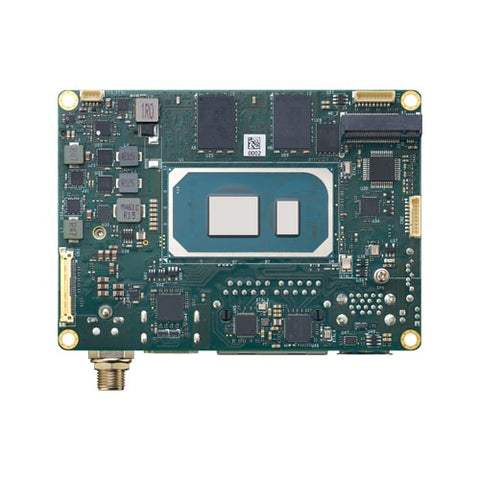

Pico-ITX

100 × 72 mm
1

Intel 11th Gen Tiger Lake performance on a 2.5" board.

Industries

Industries that run on Contec motherboards

Our boards power equipment where downtime and redesigns are not an option.

Request a quote
Factory automation Machine control, production monitoring and MES terminals. See use case Medical & healthcare Diagnostic, imaging and patient-side equipment. See use case Transportation In-vehicle, rail and wayside systems on DC power. See use case Edge computing & AI Vision inspection and AI inference close to the data. See use case Retail & digital signage Kiosks, POS and signage players. See use case Additive manufacturing 3D printers and motion controllers. See use case

Use cases

How industries put our motherboards to work

Example applications and the boards we typically recommend for them.

Factory automation

Machine control & production monitoring

Challenge
Line controllers run 24/7 for years and still need legacy I/O cards next to new high-speed ones.
Contec solution
GMB-AQ67010 ATX board with Intel 12th–14th Gen embedded CPUs, 6x COM and seven expansion slots from PCIe Gen5 x16 down to PCI.
Why it fits
One board drives motion, I/O and vision cards, with TPM 2.0 and a stable embedded CPU supply path.
Recommended boardGMB-AQ67010
Medical & healthcare

Diagnostic and imaging equipment

Challenge
Regulated devices are costly to requalify, so the compute platform must stay unchanged and protect data integrity.
Contec solution
GMB-AW48000 ATX board with Intel Xeon W-1290E on the W480E chipset and ECC memory support.
Why it fits
ECC memory guards against silent data corruption and embedded-class CPUs keep the design available for the device lifecycle.
Recommended boardGMB-AW48000
Edge computing & AI

AI vision inspection at the edge

Challenge
Inspection cells need GPU or accelerator cards, plenty of memory and fast camera links right at the line.
Contec solution
GMB-AB65000 ATX board with AMD Ryzen 9000 (Zen 5), PCIe Gen5 x16, up to 128GB DDR5 ECC and 2x 2.5GbE.
Why it fits
Gen5 bandwidth for accelerators and ECC DDR5 for long-running inference workloads.
Recommended boardGMB-AB65000
Transportation

In-vehicle and wayside computing

Challenge
Vehicle and trackside systems face unstable DC power, tight enclosures and several networks.
Contec solution
GMB-IRPL Mini-ITX SBC with Intel 13th Gen Raptor Lake-P, 9–36 VDC input and three LAN ports (2x 2.5GbE + 1x GbE).
Why it fits
Wide DC input and a compact footprint without giving up multi-network connectivity.
Recommended boardGMB-IRPL
Retail & digital signage

Kiosks and signage players

Challenge
Self-service terminals and displays need small, cool-running boards that run unattended.
Contec solution
GMB-L3TGL 3.5" SBC with Intel 11th Gen Tiger Lake UP3, 12–24 VDC input and 0–60 °C operation.
Why it fits
Desktop-class graphics performance in a 146 × 102 mm board that fits slim enclosures.
Recommended boardGMB-L3TGL
Additive manufacturing

3D printer and motion controllers

Challenge
Printers and motion systems need reliable, low-power control boards with industrial I/O.
Contec solution
GMB-IEHL210 Mini-ITX board with a quad-core Intel Celeron J6413 (Elkhart Lake) SoC.
Why it fits
Low power draw and embedded-class silicon for controllers that run around the clock.
Recommended boardGMB-IEHL210

Engineered for industry

What every Contec board brings

Embedded CPUs for stable supply

Embedded-type processors (E / TE / RE SKUs) are produced for extended availability, so qualified designs avoid forced redesigns.

TPM 2.0 on board

Hardware encryption for secure communication between systems, the edge and the cloud.

ECC memory support

DDR4 and DDR5 ECC options up to 128GB correct single-bit errors before they become silent data corruption.

Industrial operating range

0 to 60 °C operation, -40 to 80 °C storage and wide 9–36 VDC or 12–24 VDC input on SBC models.

Watchdog and hardware monitor

Programmable watchdog timer plus voltage, fan speed and temperature monitoring for unattended systems.

AMI UEFI BIOS

Industrial BIOS with customization available for OEM programs, plus rich serial, GPIO and multi-display I/O.

24 products

Showing 1–16 of 24 products

Product comparison

Compare products

Talk to us

Need a custom board or BIOS?

Tell us about your application and a Contec engineer will help you select, configure and quote the right board.

Request a quote
