DIO-96D-LPE | 96-Channel Bi-Directional Digital I/O Board | Contec Americas Contact Sales Department for Pricing New DIO-96D-LPE 96 Bi-Directional I/O LVTTL Level 200 ns Response i8255 Mode 0 Equivalent Interrupt on all 96 inputs VCCI-A · FCC-A · CE · UKCA 96 unisolated LVTTL-level bi-directional digital I/O channels on a...
Leverancier: Contec Americas
Artikelnummer: LRBT00
Beschikbaarheid: Veel op voorraad
Producttype: Accessory
📋

Datasheet

DIO-96D-LPE

Download PDF

Free Shipping

Free standard shipping on orders over $500

Secure Payments

PCI DSS compliant processing

Prices are subject to change based on applicable tariffs.

Prices are subject to change based on applicable tariffs and import duties. We will notify customers of any price changes before order confirmation.
Description
DIO-96D-LPE | 96-Channel Bi-Directional Digital I/O Board | Contec Americas
New DIO-96D-LPE 96 Bi-Directional I/O LVTTL Level 200 ns Response i8255 Mode 0 Equivalent Interrupt on all 96 inputs VCCI-A · FCC-A · CE · UKCA

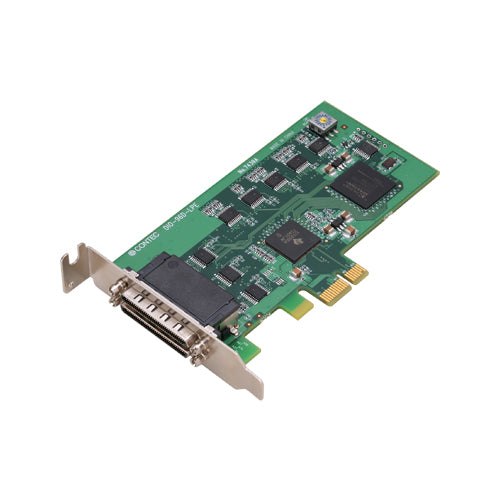

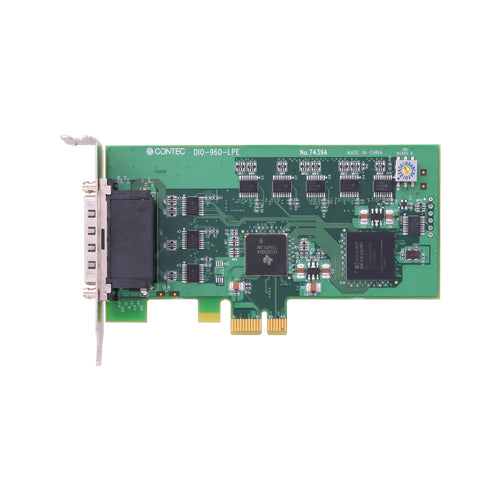

96 unisolated LVTTL-level bi-directional digital I/O channels on a Low Profile PCI Express board. Equivalent to i8255 mode 0 operation. All 96 inputs can be used as interrupt sources with selectable edge triggering. Digital filter rejects noise and contact bounce.

96 I/O Channels
200ns Response Time
8mA Output Current (IOL)
3.3V Power Supply
Contec Americas · PCI Express I/O
96-Channel Bi-Directional I/O
DIO-96D-LPE · LVTTL · Interrupt · Digital Filter · Low Profile
View Collection

High-Density Bi-Directional
Digital I/O for PCI Express

The DIO‑96D‑LPE provides 96 bi‑directionally configurable LVTTL‑level digital I/O channels on a Low Profile PCI Express board. It operates equivalently to i8255 mode 0, allowing direction to be set in 8‑bit groups (with some 4‑bit groups) via application software. All 96 input channels can be used as interrupt sources.

I/O Features
  • 96 unisolated LVTTL-level I/O
  • Positive logic
  • i8255 mode 0 equivalent
  • Direction set in 8-bit units
  • All inputs can be interrupt sources
Performance & Protection
  • 200 ns response time
  • IOL = 8 mA (max)
  • Digital filter (software config)
  • Interrupt edge selectable per bit
  • Low Profile / standard slot compatible

Compatibility with DIO‑96D2‑LPCI — same functions, connector shape, and pin assignments for easy migration from existing PCI‑based systems.

Built for High-Density Control

  • 200 ns response time — fast LVTTL I/O suitable for high‑speed control and data acquisition.
  • Digital filter — software‑enabled per input to reject noise and contact bounce.
  • Interrupt on all 96 inputs — edge selectable (rising/falling) per bit; disable/enable in bit units.
  • PCI Express x1 — Rev. 1.0a compliant, Low Profile form factor (standard bracket included).
  • Compatibility — same functions and connector pinout as DIO‑96D2‑LPCI.
  • LabVIEW support — VI‑DAQ library for easy integration with National Instruments LabVIEW.

Full Specifications

Item Specification
Model DIO‑96D‑LPE
I/O format Unisolated LVTTL-level (positive logic)
I/O channels 96 (all interrupt‑capable)
Response time 200 ns max
Rated output current IOL = 8 mA max
Interrupt All inputs, bit‑selectable, edge configurable
Digital filter Software‑configurable, all inputs
Bus interface PCI Express Base Spec Rev. 1.0a x1
I/O address Any 32‑byte boundary
Power consumption 3.3 VDC, 300 mA max
Connector 68‑pin 0.8mm pitch × 2 (CNA, CNB) – HDRA‑E68W1/LFDT+ or equivalent
Connecting distance Approx. 1.5 m (depending on wiring)
Dimensions (L × H) 121.69 × 67.90 mm
Weight 60 g
Operating temperature 0‑50°C
Operating humidity 10‑90% RH (no condensation)
Certifications VCCI Class A, CE (EMC Class A, RoHS), UKCA

Connector & Cabling

The board uses two 68‑pin 0.8mm pitch connectors (CNA and CNB). Pin assignments: 1‑PA0 to 4‑PB7 (96 I/O signal pins). Signals are LVTTL level, positive logic, and internally pulled up. I/O direction is software‑selectable in 8‑bit groups.

  • Two 68‑pin connectors — CNA and CNB, each providing 48 I/O channels for a total of 96.
  • Signal polarity — positive logic, LVTTL levels.
  • Pull‑up — each signal is internally pulled up.
  • Optional cables — shielded 68‑pin cables (PCB68PS, PCA68PS) and DIO‑68M/96F cable for CardBus compatibility.
  • Terminal boards — EPD‑68A (M3 × 68), EPD‑96A (M3 × 96), EPD‑96 (M3.5 × 96), DTP‑64A (M2.5 × 96).

Certifications & Compliance

  • VCCI Class A — Japanese EMC for commercial/industrial environments.
  • FCC Class A — U.S. emissions compliance for industrial use.
  • CE (EMC Directive Class A + RoHS) — European conformity.
  • UKCA — UK conformity assessed.

Optional Accessories

Part Number Description
PCB68PS‑0.5P Shielded cable, 68‑pin both ends, 0.5m
PCB68PS‑1.5P Shielded cable, 68‑pin both ends, 1.5m
PCA68PS‑0.5P Shielded cable, 68‑pin one end, 0.5m
PCA68PS‑1.5P Shielded cable, 68‑pin one end, 1.5m
DIO‑68M/96F Shielded cable for CardBus digital I/O, 0.5m
EPD‑68A Screw terminal (M3 × 68P, spring‑up)
EPD‑96A Screw terminal (M3 × 96P, spring‑up)
EPD‑96 Screw terminal (M3.5 × 96P)
DTP‑64A Terminal unit (M2.5 × 96P)

Software & Packing List

Item Description
Windows driver API‑DIO(WDM) – Win32 API, samples (VB, VC++), diagnostic tool
Linux driver API‑DIO(LNX) – shared library, gcc samples
LabVIEW VI‑DAQ library – function similar to NI DAQ VIs
Packing List Board ×1, First Step Guide ×1, Disk (API‑PAC(W32)) ×1, Standard‑sized bracket ×1, Serial number label ×1, Warranty card ×1

Ready to add high‑density bi‑directional I/O?

The DIO‑96D‑LPE is available through Contec Americas on a quote basis. Contact our sales team for volume pricing, cable assemblies, and integration support.

Tags DIO-96D-LPE PCI Express Digital I/O 96 Bi-Directional I/O LVTTL I/O Board i8255 Mode 0 Interrupt Capable Digital Filter Low Profile PCIe Industrial I/O Contec PCI Express Factory Automation 200 ns Response VCCI-A FCC-A CE UKCA
